Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

GEAR SHIFTING ASSY

KICK STARTER FOR SUZUKI RM-Z 250 2011

BRAKE PEDAL

Item numbers

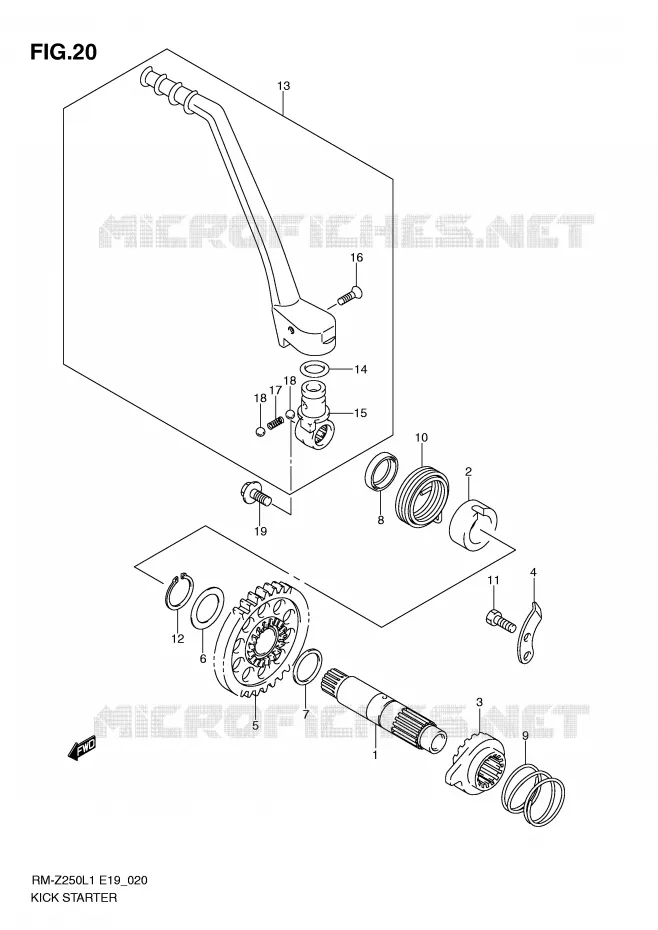

KICK STARTER Suzuki MOTO 250 RM-Z 2011 RM-Z250L1(E19)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
1
SHAFT, KICK STARTER

26211-10H00-000   2621110H00000

2621110H00000

Unit Price

2
GUIDE, KICK STARTER SFT SPRING

26221-10H00-000   2622110H00000

2622110H00000

Unit Price

3
STARTER, KICK

26231-10H00-000   2623110H00000

2623110H00000

Unit Price

4
GUIDE, KICK STARTER

26232-49H00-000   2623249H00000

2623249H00000

Unit Price

5
GEAR, KICK STARTER DRIIVE
GEAR, KICK STARTER DRIVE

26240-10H00-000   2624010H00000

2624010H00000

Unit Price

6
SHIM(18X26X0.5)
WASHER (18X26X0.5)

09181-18005-000   0918118005000

0918118005000

Unit Price

7
SHIM, 18X22X1
WASHER (18X22X1.0)

09181-18004-000   0918118004000

0918118004000

Unit Price

8
OIL SEAL CRANK SHAFT
OIL SEAL (18X30X8.0)

09283-18004-000   0928318004000

0928318004000

Unit Price

9
SPRING

09440-31002-000   0944031002000

0944031002000

Unit Price

10
SPRING

09448-45014-000   0944845014000

0944845014000

Unit Price

11
BOLT,
BOLT,

01500-0612A-000   015000612A000

015000612A000

Unit Price

12
CIRCLIP

08331-3118A-000   083313118A000

083313118A000

Unit Price

13
LEVER ASSY, KICK STARTER

26300-49H00-000  

26300-49H01-000
 2630049H00000

Unit Price

14
O RING, KICK STARTER

26313-28E20-000  

26313-28E21-000
 2631328E20000

Unit Price

15
JOINT, KICK STARTER LEVER

26331-10H00-000   2633110H00000

2633110H00000

Unit Price

16
SCREW (6X27.5)

09127-06024-000   0912706024000

0912706024000

Unit Price

17
SPRING

09440-05031-000   0944005031000

0944005031000

Unit Price

18
STEEL BALL 7/32<br />BALL
STEEL BALL 7/32
BALL

06111-07004-000   0611107004000

0611107004000

Unit Price

19
BOLT (8X14)

09103-08522-000   0910308522000

0910308522000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the KICK STARTER of your Suzuki of RM-Z. Let us know if you have any questions.

Genuine parts for Suzuki 250 RM-Z 2011

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 250 RM-Z 2011

Select your Suzuki 2011 model

250 RM-Z 2011 RM-Z250L1(E19)

Suzuki RM-Z

Displacement: 250 cc
Year: 2011
Model code RM-Z250L1(E19)
