Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER

CRANKCASE FOR SUZUKI RM-Z 250 2011

CRANKCASE COVER

Item numbers

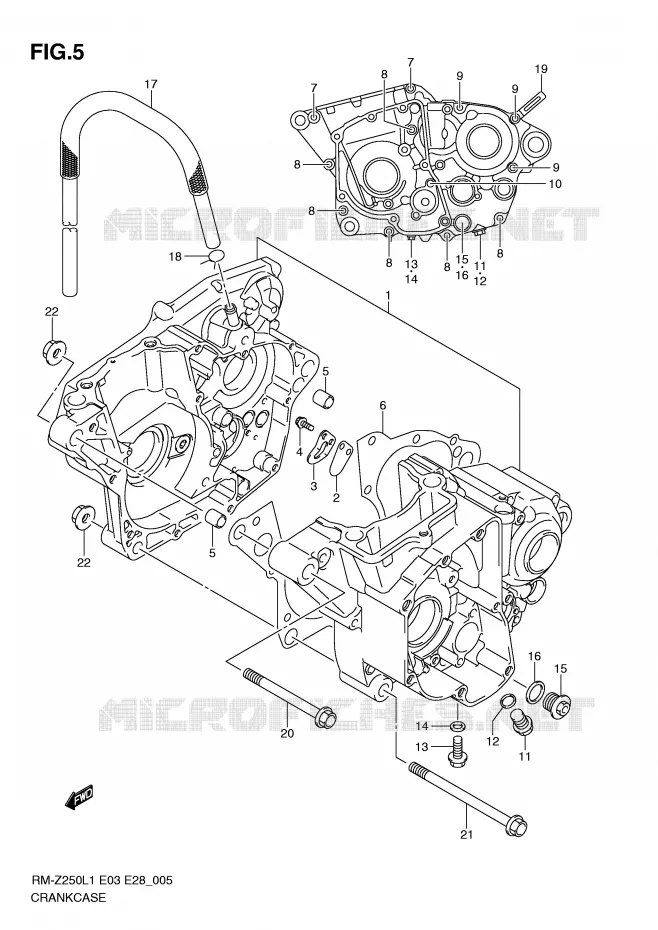

CRANKCASE Suzuki MOTO 250 RM-Z 2011 RM-Z250L1(E3/E28)
1
2
3
4
5
5
6
7
7
8
8
8
8
8
8
9
9
9
10
11
11
12
12
13
13
14
14
15
15
16
16
17
18
19
20
21
22
22
1
CRANKCASE SET

11301-49820-000   1130149820000

1130149820000
Not available
2
VALVE, CRANKCASE REED

11322-35G00-000   1132235G00000

1132235G00000

Unit Price

3
STOPPER, CRANKCASE REED VALVE

11323-35G00-000   1132335G00000

1132335G00000

Unit Price

4
BOLT

07120-0512A-000  

07120-0512B-000
 071200512A000

Unit Price

5
PIN (10.4X13X18)

09206-13020-000   0920613020000

0920613020000

Unit Price

6
GASKET, CRANKCASE

11481-49H00-000   1148149H00000

1148149H00000

Unit Price

7
BOLT
BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

8
BOLT
BOLT

01547-0650A-000   015470650A000

015470650A000

Unit Price

9
BOLT

01547-0670A-000   015470670A000

015470670A000

Unit Price

10
BOLT

01547-0680A-000   015470680A000

015470680A000

Unit Price

11
PLUG, OIL DRAIN
PLUG

09247-12012-000   0924712012000

0924712012000

Unit Price

12
GASKET OIL GALLERY<br />GASKET (12.1X16.2X3.7)
GASKET OIL GALLERY
GASKET (12.1X16.2X3.7)

09168-12002-000   0916812002000

0916812002000

Unit Price

13
BOLT 8 X 20
PLUG (8X20)

09103-08254-000   0910308254000

0910308254000

Unit Price

14
GASKET (7.8X13.5X1.2)

09168-08034-000   0916808034000

0916808034000

Unit Price

15
16316-10H02
CAP, ENG OIL STRAINER

16316-10H01-000   1631610H01000

1631610H01000
Not available
16
GASKET OIL GALLERY<br />GASKET (16X22X2)
GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000   0916816002000

0916816002000

Unit Price

17
HOSE, BREATHER

11332-35G11-000  

11332-49H11-000
 1133235G11000

Unit Price

18
CLAMP<br />CLIP
CLAMP
CLIP

09401-13301-000   0940113301000

0940113301000

Unit Price

19
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

20
BOLT, RR KNUCKLE
BOLT (10X96)

09103-10387-000   0910310387000

0910310387000

Unit Price

21
BOLT
BOLT (10X120)

09103-10388-000   0910310388000

0910310388000

Unit Price

22
NUT

09159-10122-000   0915910122000

0915910122000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of RM-Z. Let us know if you have any questions.

Genuine parts for Suzuki 250 RM-Z 2011

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 250 RM-Z 2011

Select your Suzuki 2011 model

250 RM-Z 2011 RM-Z250L1(E3/E28)

Suzuki RM-Z

Displacement: 250 cc
Year: 2011
Model code RM-Z250L1(E3 / E28)
