Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRAME FOR SUZUKI RM-Z 250 2012

FOOTREST

Item numbers

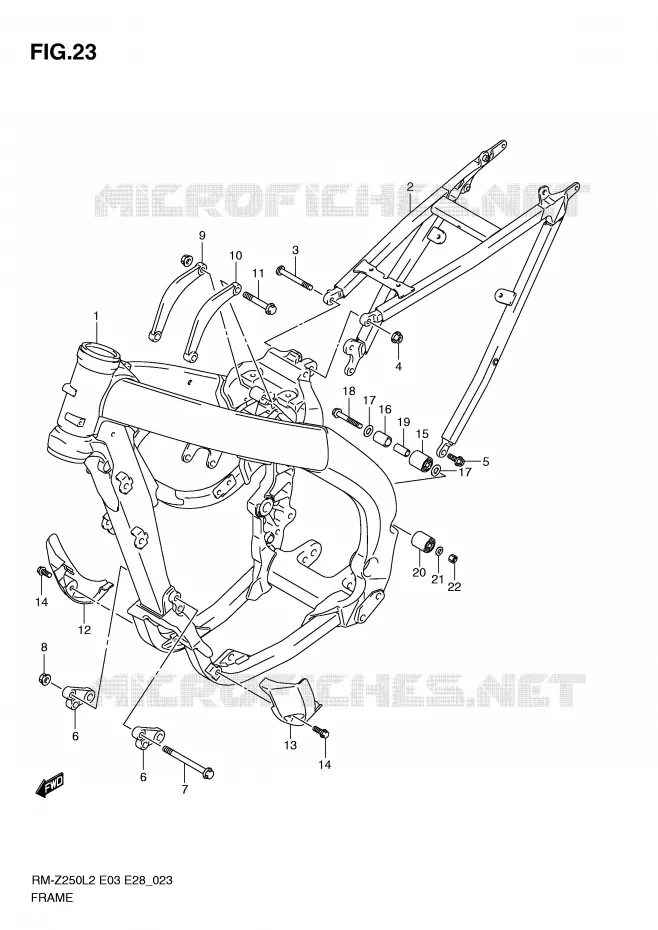

FRAME Suzuki MOTO 250 RM-Z 2012 RM-Z250L2(E03)
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
14
15
16
17
17
18
19
20
21
22
1
FRAME

41100-49H10-000   4110049H10000

4110049H10000
Not available
2
RAIL, SEAT

41200-49H10-000   4120049H10000

4120049H10000

Unit Price

3
BOLT, SEAT RAIL UPR
BOLT, UPPER

41311-28H20-000   4131128H20000

4131128H20000

Unit Price

4
NUT

09159-08146-000   0915908146000

0915908146000

Unit Price

5
BOLT (8X20)

09103-08426-000   0910308426000

0910308426000

Unit Price

6
BRACKET, ENGINE MOUNTING FR
BRACKET, ENGINE MOUNT FRONT

41991-10H01-000   4199110H01000

4199110H01000

Unit Price

7
BOLT (8X95)

09103-08433-000   0910308433000

0910308433000

Unit Price

8
NUT

09159-08146-000   0915908146000

0915908146000

Unit Price

9
BRACKET, ENGINE MOUNTING UPR, R
BRACKET, ENG MOUNT UPPER RH

41994-49H00-000   4199449H00000

4199449H00000

Unit Price

10
DISCONTINUE
BRACKET, ENG MOUNT UPPER LH

41995-49H00-000   4199549H00000

4199549H00000
Not available
11
BOLT (8X55)
BOLT (8X55)

09103-08339-000   0910308339000

0910308339000

Unit Price

12
PROTECTOR, FR, R
PROTECTOR, FRONT RH

42520-10H02-000   4252010H02000

4252010H02000

Unit Price

13
PROTECTOR, FR, L
PROTECTOR, FRONT LH

42530-49H00-000   4253049H00000

4253049H00000

Unit Price

14
BOLT
BOLT (6X16)

09116-06200-000   0911606200000

0911606200000

Unit Price

15
ROLLER, CHAIN
ROLLER, CHAIN UPPER

43911-28H00-000   4391128H00000

4391128H00000

Unit Price

16
DISCONTINUE
COLLAR, CHAIN RPLLER

43912-28H00-000   4391228H00000

4391228H00000
Not available
17
WASHER<br />WASHER (8.5X23X1.5)
WASHER
WASHER (8.5X23X1.5)

09160-08081-000   0916008081000

0916008081000

Unit Price

18
BOLT (8X45)

09103-08207-000   0910308207000

0910308207000

Unit Price

19
SPACER
SPACER (8.6X12.2X25.5)

09180-08214-000   0918008214000

0918008214000

Unit Price

20
ROLLER, CHAIN
ROLLER, CHAIN LOWER

43910-35G00-000   4391035G00000

4391035G00000

Unit Price

21
WASHER
SHIM (8X12X1)

09181-08111-000   0918108111000

0918108111000

Unit Price

22
NUT
NUT

08319-2108A-000   083192108A000

083192108A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki of RM-Z. Let us know if you have any questions.

Genuine parts for Suzuki 250 RM-Z 2012

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 250 RM-Z 2012

Select your Suzuki 2012 model

250 RM-Z 2012 RM-Z250L2(E03)

Suzuki RM-Z

Displacement: 250 cc
Year: 2012
Model code RM-Z250L2(E03)
