Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

RADIATOR

CLUTCH FOR SUZUKI RM-Z 250 2015

TRANSMISSION

Item numbers

SPACER, PRIMARY DRIVEN GEAR
SPACER, PRIMARY DRIVEN GEAR (NT:18/63)

21251-10H00-000 2125110H00000

$52,97

Unit Price

BEARING, STARTER CL
BEARING (27X32X21.8)

09263-27004-000 0926327004000

$42,97

Unit Price

GEAR ASSY, PRIMARY DRIVEN

21200-49H00-000

21200-49H10-000

$355,97

Unit Price

HUB, CLUTCH SLEEVE

21411-10H10-000 2141110H10000

$141,97

Unit Price

BOLT, CLUTCH SPRING

21412-45G00-000 2141245G00000

$4,97

Unit Price

WASHER (22X45X3)

09160-22083-000 0916022083000

$17,97

Unit Price

PLATE, CLUTCH DRIVE NO.2
PLATE, CLUTCH DRIVE (T:2.8)

21441-40F10-000 2144140F10000

$29,97

Unit Price

PLATE, CLUTCH DRIVEN
PLATE, CLUTCH DRIVEN (T:1.6)

21451-10H00-000 2145110H00000

$16,97

Unit Price

PLATE, CLUTCH DRIVEN
PLATE, CLUTCH DRIVEN (T:1.6)

21452-10H00-000 2145210H00000

$18,97

Unit Price

DISC, CLUTCH PRESSURE

21462-10H00-000 2146210H00000

$87,97

Unit Price

SPRING, CLUTCH

21413-49H00-000 2141349H00000

$13,97

Unit Price

WASHER, CLUTCH SLEEVE HUB LOCK
WASHER, CLUTCH SLEEVE

21416-10H00-000 2141610H00000

$12,97

Unit Price

SEAT, CLUTCH PLATE WAVE WASHER
SEAT, WAVE WASHER

21471-40F00-000 2147140F00000

$18,97

Unit Price

WASHER, CLUTCH PLATE
WASHER, CLUTH PLATE

21472-10H00-000 2147210H00000

$22,97

Unit Price

NUT

09140-18020-000 0914018020000

$24,97

Unit Price

ROD, CLUTCH PUSH

23110-37F00-000 2311037F00000

$25,97

Unit Price

RETAINER, CL RELEASE CAMSHAFT
RETAINER, CLUTCH RELEASE

23117-10H00-000 2311710H00000

$5,97

Unit Price

BOLT

01547-0612A-000 015470612A000

$3,97

Unit Price

PIECE, CLUTCH PUSH

23121-49H10-000 2312149H10000

$33,97

Unit Price

CAMSHAFT, CLUTCH RELEASE

23200-49H10-000 2320049H10000

$115,97

Unit Price

SHIM (12X26X0.8)

09181-12016-000 0918112016000

$3,97

Unit Price

BEARING (12X26X2)

09263-12019-000 0926312019000

$14,97

Unit Price

BEARING (10X14X10)

09263-10014-000 0926310014000

$20,97

Unit Price

OIL SEAL
OIL SEAL (10X17X5)

09285-10004-000 0928510004000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

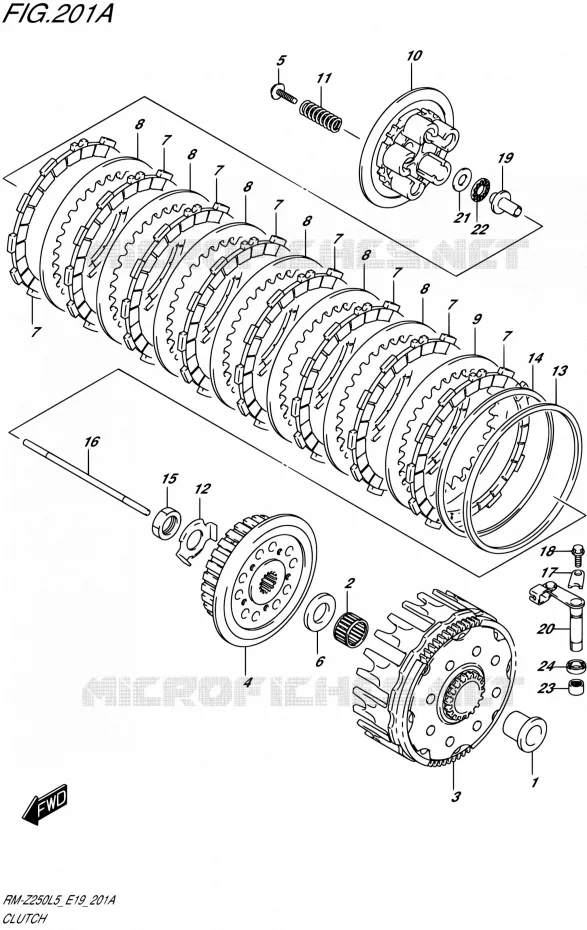

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki of RM-Z. Let us know if you have any questions.

Select your Suzuki 2015 model
