FUEL TANK

FRAME FOR SUZUKI RM-Z 250 2016

FOOTREST

Item numbers

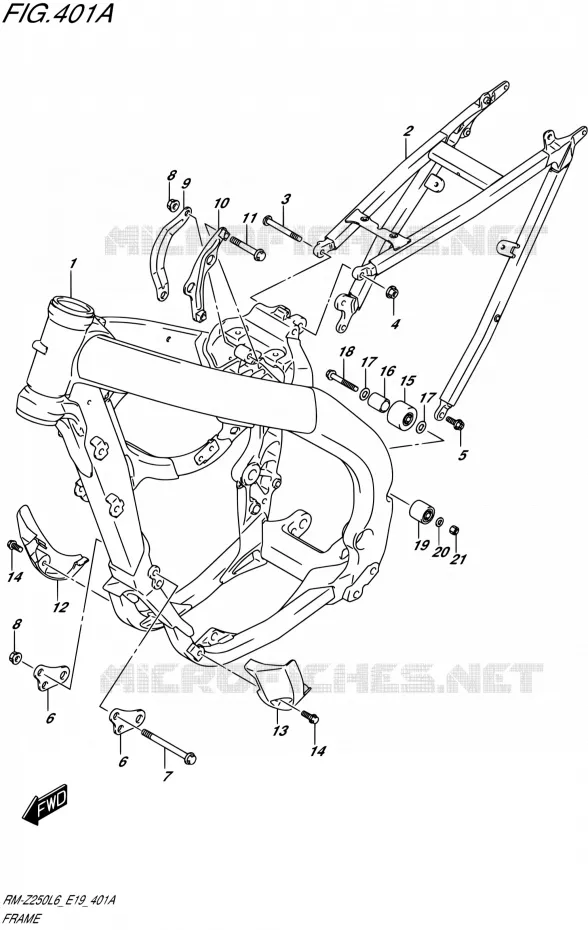

FRAME Suzuki MOTO 250 RM-Z 2016 RM-Z250 L6 (E19)
1
2
3
4
5
6
6
7
8
8
9
10
11
12
13
14
14
15
16
17
17
18
19
20
21
1
FRAME COMP
FRAME

41100-49H30-000   4110049H30000

4110049H30000

Unit Price

2
RAIL COMP, SEAT
RAIL, SEAT

41200-49H30-000   4120049H30000

4120049H30000

Unit Price

3
BOLT, SEAT RAIL UPR
BOLT, SEAT RAIL UPPER

41311-28H20-000   4131128H20000

4131128H20000

Unit Price

4
NUT

09159-08146-000   0915908146000

0915908146000

Unit Price

5
BOLT (8X20)

09103-08426-000   0910308426000

0910308426000

Unit Price

6
BRACKET, ENGINE MOUNTING FR
BRACKET, ENGINE MOUNT FRONT

41911-49H20-000   4191149H20000

4191149H20000

Unit Price

7
BOLT (8X80)

09103-08016-000   0910308016000

0910308016000

Unit Price

8
NUT

09159-08146-000   0915908146000

0915908146000

Unit Price

9
BRACKET, ENGINE MOUNTING UPR, R
BRACKET, ENG MOUNT UPPER RH

41931-49H20-000   4193149H20000

4193149H20000

Unit Price

10
BRACKET COMP, ENG MTG UPPER, L
BRACKET, ENG MOUNT UPPER LH

41940-49H30-000   4194049H30000

4194049H30000

Unit Price

11
BOLT (8X38)
BOLT (8X38)

09103-08178-000   0910308178000

0910308178000

Unit Price

12
PROTECTOR, FRONT R
PROTECTOR, FRONT RH

42520-10H10-000   4252010H10000

4252010H10000

Unit Price

13
PROTECTOR, FRONT L
PROTECTOR, FRONT LH

42530-49H10-000   4253049H10000

4253049H10000

Unit Price

14
BOLT
BOLT (6X16)

09116-06200-000   0911606200000

0911606200000

Unit Price

15
ROLLER, CHAIN CONTROL
ROLLER, CHAIN UPPER

43911-01B10-000   4391101B10000

4391101B10000

Unit Price

16
SPACER<br />SPACER (8.5X14X28)
SPACER
SPACER (8.5X14X28)

09180-08206-000   0918008206000

0918008206000

Unit Price

17
SHIM (8X18X0.5)

09181-08186-000   0918108186000

0918108186000

Unit Price

18
BOLT (8X45)

09103-08207-000   0910308207000

0910308207000

Unit Price

19
ROLLER, CHAIN
ROLLER, CHAIN LOWER

43910-37F00-000   4391037F00000

4391037F00000

Unit Price

20
WASHER
SHIM (8X12X1)

09181-08111-000   0918108111000

0918108111000

Unit Price

21
NUT
NUT

08319-2108A-000   083192108A000

083192108A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki of RM-Z. Let us know if you have any questions.
