CYLINDER

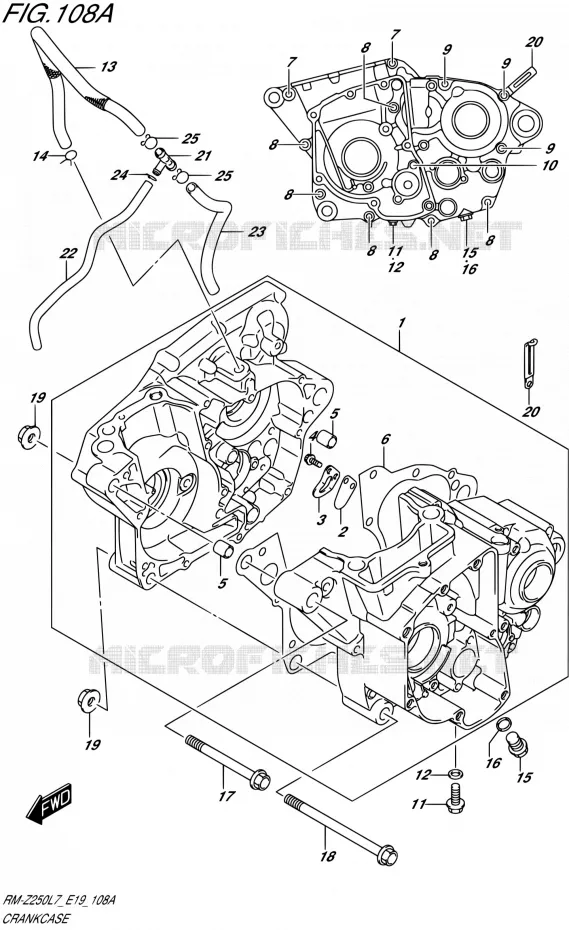

CASING FOR SUZUKI RM-Z 250 2017

CASING

Item numbers

CRANKCASE SET

11301-49841-000 1130149841000

$1 408,97

Unit Price

.VALVE, CRANKCASE REED

11322-35G10-000 1132235G10000

$12,97

Unit Price

.STOPPER, CRANKCASE REED VALVE

11323-35G00-000 1132335G00000

$19,97

Unit Price

BOLT

07120-0512A-000

07120-0512B-000

$4,97

Unit Price

.PIN

04211-13189-000 0421113189000

$3,97

Unit Price

.GASKET, CRANKCASE

11481-49H10-000 1148149H10000

$26,97

Unit Price

.BOLT

01547-0640A-000 015470640A000

$3,97

Unit Price

.BOLT

01547-0650A-000 015470650A000

$3,97

Unit Price

.BOLT

01547-0670A-000 015470670A000

$4,97

Unit Price

.BOLT

01547-0680A-000 015470680A000

$3,97

Unit Price

BOLT
BOLT (8X20)

09103-08393-000 0910308393000

$3,97

Unit Price

GASKET (8.2X14X1)

09168-08016-000 0916808016000

$2,97

Unit Price

HOSE, BREATHER NO.1

11332-49H30-000

11332-49H31-000

$18,97

Unit Price

CLAMP
CLIP

09401-13301-000 0940113301000

$3,97

Unit Price

PLUG
PLUG (12X20)

09247-12106-000 0924712106000

$4,97

Unit Price

GASKET OIL GALLERY
GASKET (12.1X16.2X3.7)

09168-12002-000 0916812002000

Not available

BOLT (10X80)

09103-10448-000 0910310448000

$9,97

Unit Price

BOLT
BOLT (10X120)

09103-10388-000 0910310388000

$9,97

Unit Price

NUT

09159-10122-000 0915910122000

$10,97

Unit Price

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

JOINT, BREATHER HOSE

11331-28H00-000 1133128H00000

$8,97

Unit Price

HOSE, BREATHER NO.3

09352-60103-220

Not available

HOSE(9X13X600)

09352-90133-600

09352-90134-600

$15,97

Unit Price

CLIP

09401-10410-000 0940110410000

$3,97

Unit Price

DISCONTINUE

09401-13102-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CASING of your Suzuki RM-Z 250 of RM-Z. Let us know if you have any questions.
