REAR FAIRING

FRAME FOR SUZUKI RM-Z 250 2020

FOOTREST

Item numbers

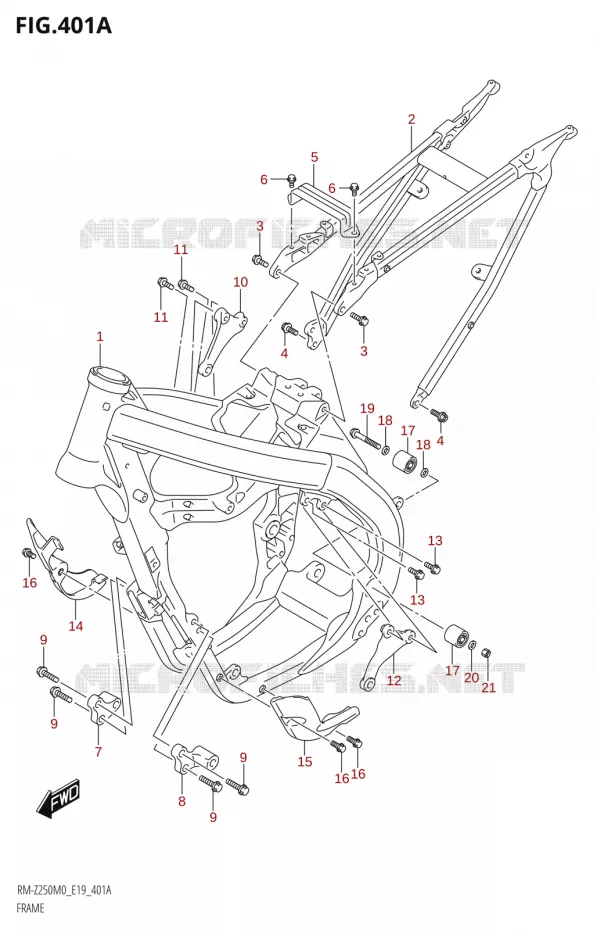

FRAME Suzuki MOTO 250 RM-Z 2020 RM-Z250 M0 (E19)
1
2
3
3
4
4
5
6
6
7
8
9
9
9
9
10
11
11
12
13
13
14
15
16
16
16
17
17
18
18
19
20
21
1
FRAME

41100-46K00-000   4110046K00000

4110046K00000
Not available
2
RAIL COMP, SEAT
RAIL, SEAT

41200-37K00-000   4120037K00000

4120037K00000

Unit Price

3
BOLT(8X25)

09103-08255-000  

09103-08288-000
 0910308255000

Unit Price

4
BOLT
BOLT (8X20)

09103-08505-000   0910308505000

0910308505000

Unit Price

5
BRIDGE, SEAT RAIL UPPER

41542-46K00-000   4154246K00000

4154246K00000

Unit Price

6
BOLT

01547-0616A-000   015470616A000

015470616A000

Unit Price

7
BRACKET, ENG MTG FR RH

41911-46K00-000   4191146K00000

4191146K00000

Unit Price

8
BRACKET, ENG MTG FR LH

41921-46K00-000   4192146K00000

4192146K00000

Unit Price

9
BOLT (8X30)

09103-08048-000   0910308048000

0910308048000

Unit Price

10
BRACKET, ENG MTG UPPER RH

41931-46K00-000   4193146K00000

4193146K00000

Unit Price

11
BOLT(8X25)

09103-08255-000  

09103-08288-000
 0910308255000

Unit Price

12
BRACKET, ENG MTG UPPER LH

41941-46K00-000   4194146K00000

4194146K00000

Unit Price

13
BOLT
BOLT (8X20)

09103-08505-000   0910308505000

0910308505000

Unit Price

14
PROTECTOR, FRONT RH

42520-28H11-000   4252028H11000

4252028H11000

Unit Price

15
PROTECTOR, FRONT LH

42530-28H20-000   4253028H20000

4253028H20000

Unit Price

16
BOLT (6X25)

09116-06177-000   0911606177000

0911606177000

Unit Price

17
ROLLER, CHAIN

43910-37F00-000   4391037F00000

4391037F00000

Unit Price

18
WASHER,THRUST<br />SHIM (8X16X1)
WASHER, THRUST
SHIM (8X16X1)

09181-08167-000   0918108167000

0918108167000

Unit Price

19
BOLT (8X45)

09103-08207-000   0910308207000

0910308207000

Unit Price

20
WASHER
SHIM (8X12X1)

09181-08111-000   0918108111000

0918108111000

Unit Price

21
NUT
NUT

08319-2108A-000   083192108A000

083192108A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki RM-Z 250 of RM-Z. Let us know if you have any questions.
