WATER PUMP

RADIATOR FOR SUZUKI RM-Z 250 2021

CLUTCH

Item numbers

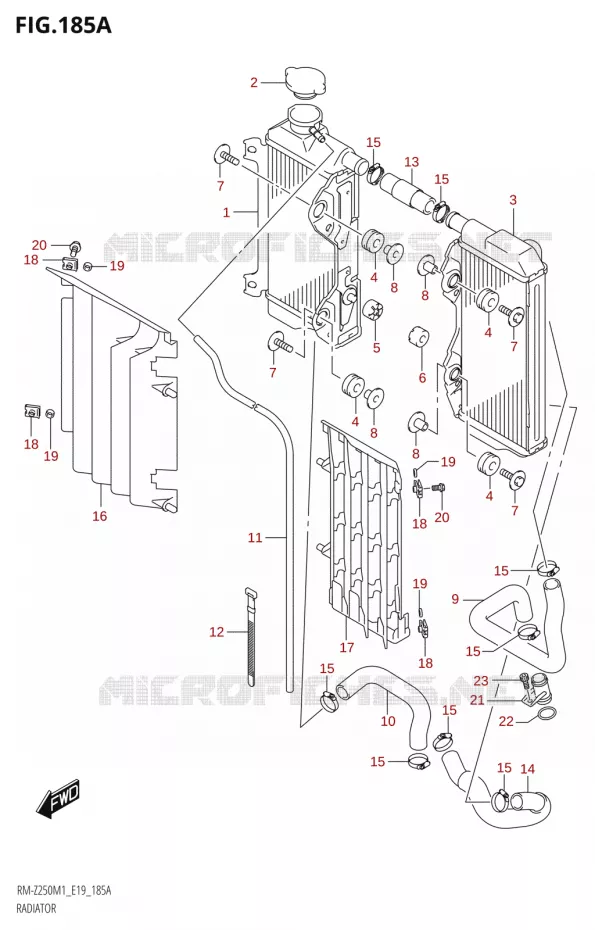

RADIATOR Suzuki MOTO 250 RM-Z 2021 RM-Z250 M1 (E19)
1
2
3
4
4
4
4
5
6
7
7
7
7
8
8
8
8
9
10
11
12
13
14
15
15
15
15
15
15
15
15
16
17
18
18
18
18
19
19
19
19
20
20
21
22
23
1
RADIATOR, WATER RH
RADIATOR COMP, WATER RH

17710-37K01-000   1771037K01000

1771037K01000

Unit Price

2
CAP, RADIATOR (1.1)

17730-14G00-000   1773014G00000

1773014G00000

Unit Price

3
RADIATOR, WATER LH

17720-46K00-000   1772046K00000

1772046K00000

Unit Price

4
CUSHION, RADIATOR SUPPORT

17787-19A10-000   1778719A10000

1778719A10000

Unit Price

5
CUSHION, RDTR

17787-37K00-000   1778737K00000

1778737K00000

Unit Price

6
CUSHION, RDTR

17787-46K00-000   1778746K00000

1778746K00000

Unit Price

7
BOLT, MUFFLER MTG
BOLT (6X25)

09116-06186-000   0911606186000

0911606186000

Unit Price

8
SPACER
SPACER (6.5X10.5X14.1)

09180-06243-000   0918006243000

0918006243000

Unit Price

9
HOSE, RADIATOR INLET

17851-46K00-000   1785146K00000

1785146K00000

Unit Price

10
HOSE, RADIATOR OUTLET NO.1

17852-46K00-000   1785246K00000

1785246K00000

Unit Price

11
HOSE, 5X8X2000

09351-50801-00A  

09351-50803-00A
 093515080100A

Unit Price

12
BAND,WIRING HARNESS<br />CLAMP (L:125)
BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

13
HOSE, RADIATOR JOINT UPPER

17853-37K00-000   1785337K00000

1785337K00000

Unit Price

14
HOSE, RADIATOR OUTLET NO.2

17854-46K00-000   1785446K00000

1785446K00000

Unit Price

15
CLAMP

09402-28513-000   0940228513000

0940228513000

Unit Price

16
LOUVER, RADIATOR RH

17831-37K00-000   1783137K00000

1783137K00000

Unit Price

17
LOUVER, RADIATOR LH

17832-46K00-000   1783246K00000

1783246K00000

Unit Price

18
NUT

09148-06017-000   0914806017000

0914806017000

Unit Price

19
SPACER (6.2X10X2.2)

09180-06129-000   0918006129000

0918006129000
Not available
20
BOLT

01547-0610A-000   015470610A000

015470610A000

Unit Price

21
UNION,CONNECTOR HOSE
UNION, CONNECTOR HOSE

17890-06G20-000   1789006G20000

1789006G20000

Unit Price

22
O RING

09280-18008-000  

09280-18009-000
 0928018008000

Unit Price

23
BOLT

07130-0612A-000   071300612A000

071300612A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR of your Suzuki RM-Z 250 of RM-Z. Let us know if you have any questions.
