Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

REAR BRAKE

FRONT FORK (MODEL K) FOR SUZUKI RM 250 1989

FRONT FORK (MODEL L) REFER TO FIG.22B (E-6) FOR MODEL M

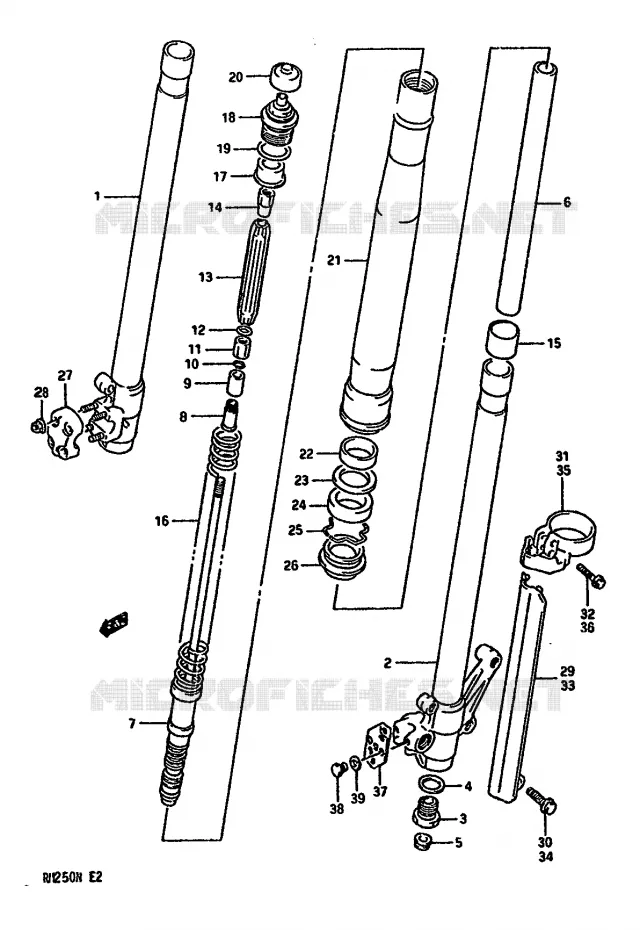

FRONT FORK (MODEL K) Suzuki MOTO 250 RM 1989 RM250K(K/L/M/N)
1
TUBE, INNER RH

51110-28C20-000   5111028C20000

5111028C20000
Not available
2
TUBE, INNER LH

51120-28C20-000   5112028C20000

5112028C20000
Not available
3
VALVE ASSY, BASE

51170-28C00-000   5117028C00000

5117028C00000
Not available
4
GASKET

51148-01B40-000   5114801B40000

5114801B40000
Not available
5
CAP, BASE VALVE

51189-28C00-000   5118928C00000

5118928C00000
Not available
6
CYLINDER

51146-28C00-000   5114628C00000

5114628C00000
Not available
7
.ROD ASSY, PISTON

51128-28C00-000   5112828C00000

5112828C00000
Not available
8
PIECE, HOLDER

51812-28C00-000   5181228C00000

5181228C00000
Not available
9
PIECE, OIL LOCK

51811-28C00-000   5181128C00000

5181128C00000
Not available
10
RING, SNAP

51813-28C00-000   5181328C00000

5181328C00000
Not available
11
NUT, PIECE

51814-28C00-000   5181428C00000

5181428C00000
Not available
12
O RING, CYLINDER

51187-28C00-000  

09280-12008-000
 5118728C00000

Unit Price

12
DAMPER ASSY, RH

51103-28C20-000   5110328C20000

5110328C20000
Not available
12
DAMPER ASSY, LH

51104-28C30-000   5110428C30000

5110428C30000
Not available
13
GUIDE, SPRING LOWER

51172-28C00-000   5117228C00000

5117228C00000
Not available
14
DISCONTINUE<br />NUT,ROD
DISCONTINUE
NUT, ROD

51129-27C00-000   5112927C00000

5112927C00000
Not available
15
PISTON

51121-28C00-000  

51121-26E10-000
 5112128C00000

Unit Price

16
SPRING

51171-28C00-000   5117128C00000

5117128C00000
Not available
17
GUIDE, SPRING UPPER

51175-28C00-000   5117528C00000

5117528C00000
Not available
18
DISCONTINUE
CAP, FORK

51351-28C00-000   5135128C00000

5135128C00000
Not available
19
O RING
O RING

51117-28C00-000  

51117-28C01-000
 5111728C00000

Unit Price

20
DISCONTINUE
RUBBER, CAP

51188-01B20-000   5118801B20000

5118801B20000
Not available
21
TUBE, OUTER

51130-28C20-000   5113028C20000

5113028C20000
Not available
22
METAL, SLIDE

51167-28C00-000  

51167-26E10-000
 5116728C00000

Unit Price

23
WASHER
WASHER

51158-05A00-000   5115805A00000

5115805A00000

Unit Price

24
SEAL, OIL

51153-28C00-000  

51153-27C20-000
 5115328C00000

Unit Price

25
RING,OIL SEAL STOPPER<br />RING,SNAP
RING, OIL SEAL STOPPER
RING, SNAP

51156-49440-000   5115649440000

5115649440000

Unit Price

26
SEAL, DUST
DUST SEAL

51173-28C00-000   5117328C00000

5117328C00000

Unit Price

27
HOLDER, AXLE

51132-28C00-000   5113228C00000

5113228C00000
Not available
28
NUT 6MM<br />NUT,AXLE HOLDER
NUT 6MM
NUT, AXLE HOLDER

08319-31067-000   0831931067000

0831931067000

Unit Price

29
DISCONTINUE
PROTECTOR, RH

51201-28C00-000   5120128C00000

5120128C00000
Not available
30
BOLT,6X35<br />BOLT,LOWER
BOLT, 6X35
BOLT, LOWER

01547-06357-000   0154706357000

0154706357000

Unit Price

31
DISCONTINUE

51203-28C00-000  

5120328C00000
Not available
32
BOLT

01514-05358-000  

01550-05353-000
 0151405358000

Unit Price

33
DISCONTINUE
PROTECTOR, LH

51211-28C00-000   5121128C00000

5121128C00000
Not available
34
BOLT,6X35<br />BOLT,LOWER
BOLT, 6X35
BOLT, LOWER

01547-06357-000   0154706357000

0154706357000

Unit Price

35
DISCONTINUE

51213-28C00-000  

5121328C00000
Not available
36
BOLT

01514-05358-000  

01550-05353-000
 0151405358000

Unit Price

37
DISCONTINUE
COVER, HOSE

59248-28C00-000   5924828C00000

5924828C00000
Not available
38
BOLT

01107-05108-000  

01500-0510B-000
 0110705108000

Unit Price

39
WASHER, LOCK

08321-21057-000  

08321-0105A-000
 0832121057000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
