Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER (MODEL K / L) REFER TO FIG.1A (B-4) FOR MODEL M/N

CYLINDER (MODEL M / N) FOR SUZUKI RM 250 1990

EXHAUST VALVE

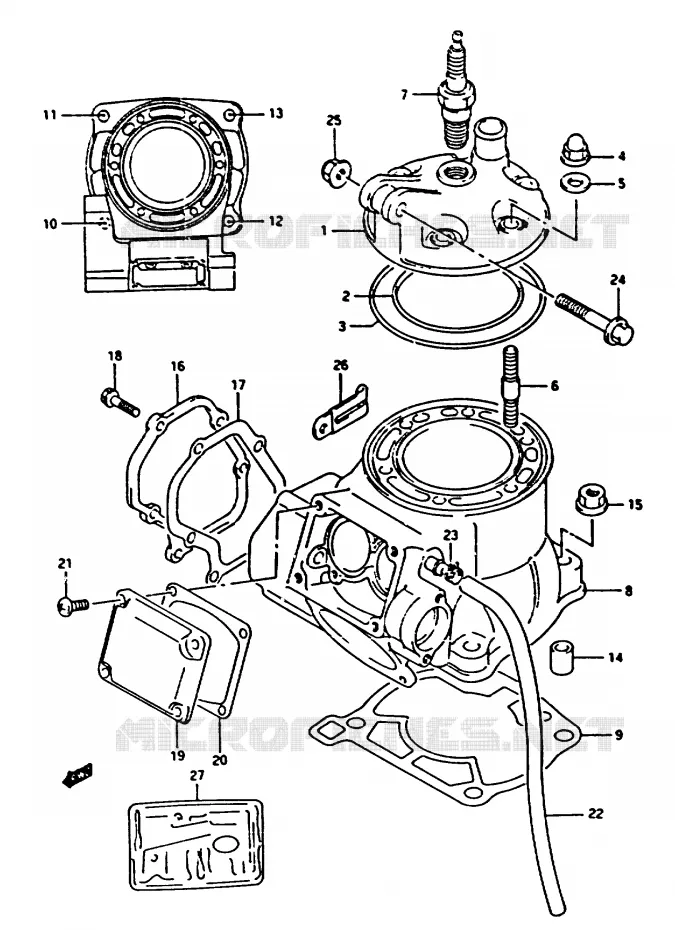

CYLINDER (MODEL M/N) Suzuki MOTO 250 RM 1990 RM250L(K/L/M/N)
1
DISCONTINUE

11111-28C20-000  

1111128C20000
Not available
2
DISCONTINUE
O RING, CYLINDER HEAD NO.1

11147-28C20-000   1114728C20000

1114728C20000
Not available
3
O RING, CYLINDER HEAD NO.2

11148-28C20-000   1114828C20000

1114828C20000

Unit Price

4
NUT
NUT

09159-08074-000   0915908074000

0915908074000

Unit Price

5
GASKET 8.5X17X2.3<br />WASHER
GASKET 8.5X17X2.3
WASHER

09168-08021-000   0916808021000

0916808021000

Unit Price

6
STUD BOLT

09108-08227-000  

09108-08231-000
 0910808227000

Unit Price

7
PLUG, SPARK(R4118S-8)
SPARK PLUG (NGK, R4118S-8)

09482-00499-000   0948200499000

0948200499000

Unit Price

7
SPARK PLUG (NGK, BR8EV)

09482-00114-000   0948200114000

0948200114000
Not available
7
09482-00114-IXA
SPARK PLUG (NGK, B8EGV)

09482-00208-000   0948200208000

0948200208000
Not available
8
DISCONTINUE
CYLINDER

11200-28830-000   1120028830000

1120028830000
Not available
8
DISCONTINUE

11200-28840-000  

1120028840000
Not available
9
GASKET, CYLINDER

11241-28C10-000  

11241-28C11-000
 1124128C10000

Unit Price

10
BOLT, STUD

01421-10308-000  

01421-1030A-000
 0142110308000

Unit Price

11
STUD BOLT

01421-10358-000   0142110358000

0142110358000
Not available
12
BOLT, STUD

01421-10408-000  

01421-1040A-000
 0142110408000

Unit Price

13
STUD BOLT

01421-10456-000   0142110456000

0142110456000
Not available
14
COLLAR 10.4 X 13 X 2

09206-13006-000  

09206-13017-000
 0920613006000

Unit Price

15
NUT

08316-16108-000  

08316-1010B-000
 0831616108000

Unit Price

16
DISCONTINUE
COVER, CYLINDER NO.1

11231-28C20-000   1123128C20000

1123128C20000
Not available
17
DISCONTINUE

11233-28C20-000  

1123328C20000
Not available
18
BOLT,6X16<br />BOLT
BOLT, 6X16
BOLT

01547-06167-000   0154706167000

0154706167000

Unit Price

19
DISCONTINUE
CYLINDER COVER

11248-28C20-000   1124828C20000

1124828C20000
Not available
20
DISCONTINUE

11238-28C00-000  

1123828C00000
Not available
21
SCREW

02112-05168-000  

02112-05167-000
 0211205168000

Unit Price

22
HOSE
HOSE, EX VALVE BREATHER

09343-09501-000   0934309501000

0934309501000

Unit Price

23
CLIP

09401-12407-000  

09401-12405-000
 0940112407000

Unit Price

24
BOLT, CHAIN ROLLER
BOLT (8X45)

09103-08043-000   0910308043000

0910308043000

Unit Price

25
NUT

09159-08034-000   0915908034000

0915908034000

Unit Price

25
NUT

09159-08067-000   0915908067000

0915908067000

Unit Price

26
CLAMP(L:65)

09404-06401-000  

09404-06039-000
 0940406401000

Unit Price

27
DISCONTINUE

11401-28820-000  

1140128820000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 250 RM 1990
