CRANKCASE (MODEL R / S)

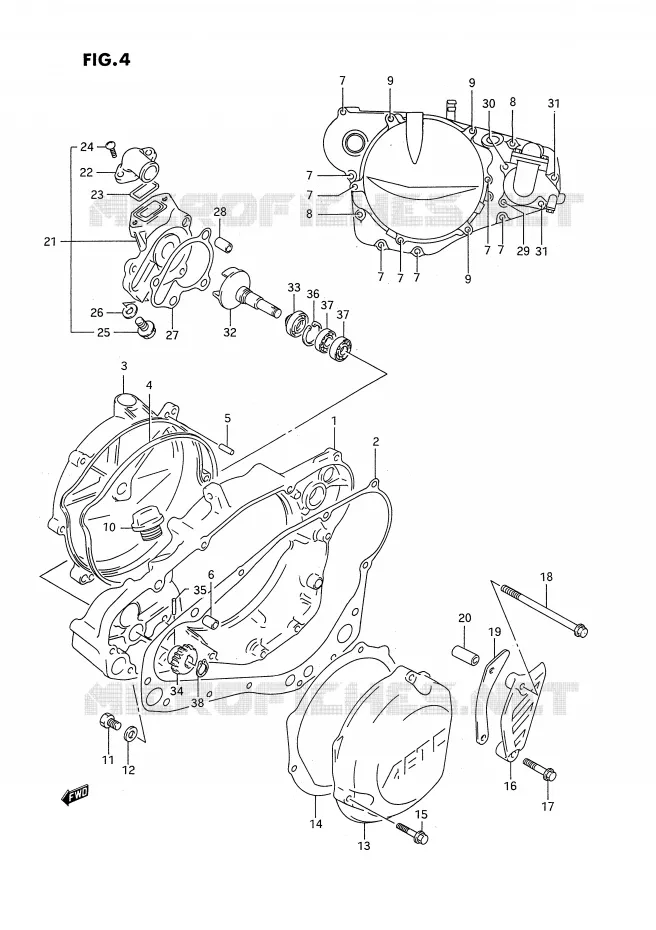

CRANKCASE COVER (MODEL P) FOR SUZUKI RM 250 1993

CRANKCASE COVER (MODEL R / S)

DISCONTINUE

11340-28810-000

Not available

GASKET, CLUTCH COVER

11482-28C01-000 1148228C01000

$36,97

Unit Price

DISCONTINUE
COVER, CLUTCH OUTER

11371-28E02-000 1137128E02000

Not available

DISCONTINUE
O RING, CLUTCH COVER OUTER

11484-28C10-000 1148428C10000

Not available

04221-04089-000 0422104089000

$2,97

Unit Price

9 X 12 DOWEL PIN
PIN

04211-09129-000 0421109129000

$2,97

Unit Price

BOLT, 6X25
BOLT

01547-06257-000 0154706257000

$3,97

Unit Price

BOLT, 6X35
BOLT

01547-06357-000 0154706357000

$3,97

Unit Price

BOLT, 6X70
BOLT

01547-06707-000 0154706707000

$4,97

Unit Price

PLUG SET

09200-20810-000

09200-20811-000

$10,97

Unit Price

SCREWM6X1X10

09128-06004-000

09128-06044-000

$2,97

Unit Price

TACH GEAR WASHER
GASKET

09168-06004-000 0916806004000

$2,97

Unit Price

DISCONTINUE
COVER, MAGNETO

11351-28E00-000 1135128E00000

Not available

DISCONTINUE
GASKET, MAGNETO COVER

11483-28C01-000 1148328C01000

Not available

BOLT, 6X25
BOLT

01547-06257-000 0154706257000

$3,97

Unit Price

COVER, ENGINE SPROCKET

11360-28E00-000 1136028E00000

$55,97

Unit Price

BOLT, 6X25
BOLT

01547-06257-000 0154706257000

$3,97

Unit Price

BOLT

01547-06958-000

01547-06957-000

$6,97

Unit Price

DISCONTINUE
PLATE, CHAIN GUIDE

27641-28C00-000 2764128C00000

Not available

DISCONTINUE
PLATE, CHAIN GUIDE

27641-28C10-000 2764128C10000

Not available

DISCONTINUE
PLATE, CHAIN GUIDE

27641-28C20-000 2764128C20000

Not available

SPACER 6.5 X 10 X 5
SPACER

09180-06203-000 0918006203000

$4,97

Unit Price

DISCONTINUE
CASE ASSY, WATER PUMP

17410-28E00-000 1741028E00000

Not available

DISCONTINUE
CONNECTOR

17412-28E00-000 1741228E00000

Not available

O RING, WATER PUMP CONNECTOR
O RING

17414-14300-000 1741414300000

$6,97

Unit Price

SCREW

02112-06164-000

02112-0616A-000

$2,97

Unit Price

BOLT
BOLT, DRAIN

17415-43D00-000 1741543D00000

$6,97

Unit Price

WASHER
GASKET

17413-28C10-000 1741328C10000

$3,97

Unit Price

GASKET, WATER PUMP CASE

17431-28C10-000 1743128C10000

$19,97

Unit Price

9 X 12 DOWEL PIN
PIN

04211-09129-000 0421109129000

$2,97

Unit Price

BOLT

01547-06207-000 0154706207000

$3,97

Unit Price

BOLT, 6X30
BOLT

01547-06307-000 0154706307000

$3,97

Unit Price

BOLT

01547-06807-000 0154706807000

$2,97

Unit Price

IMPELLER, WATER PUMP

17491-28C10-000 1749128C10000

$78,97

Unit Price

SEAL, WATER PUMP OIL

17461-28C10-000

17461-03B00-000

$12,97

Unit Price

DISCONTINUE

17441-28C10-000

Not available

DISCONTINUE
PIN

09261-03010-000 0926103010000

Not available

CIRCLIP

08331-41246-000

08331-41249-000

$4,97

Unit Price

BALL BEARING
BEARING

08113-69000-000 0811369000000

$35,97

Unit Price

CIRCLIP

08331-31106-000

08331-31109-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
