CRANKCASE

CRANKCASE COVER- WATER PUMP FOR SUZUKI RM 250 1996

CRANKSHAFT

Item numbers

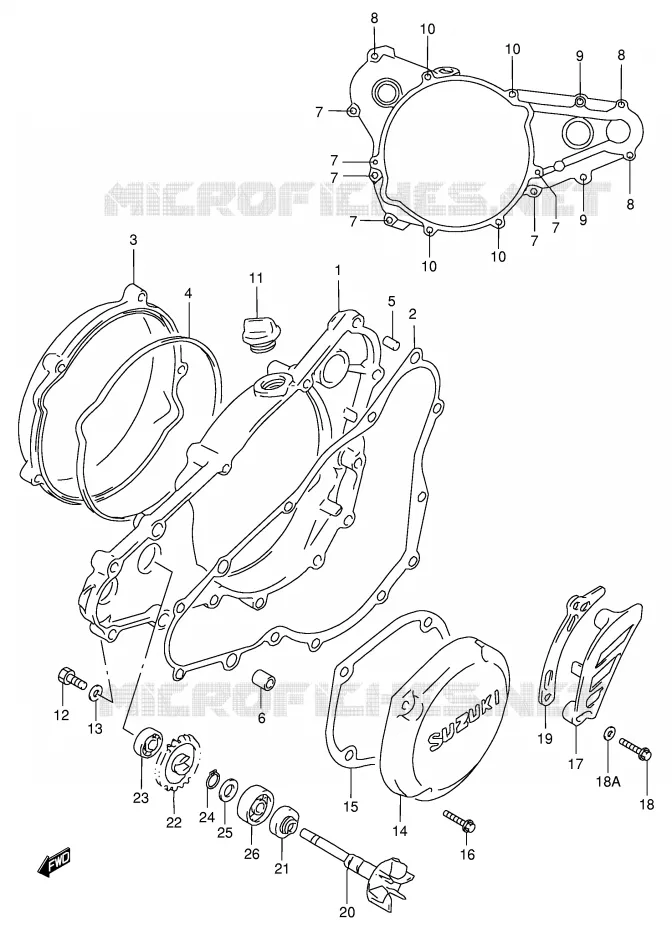

CRANKCASE COVER- WATER PUMP Suzuki MOTO 250 RM 1996 RM250T(E3/E28)
1
2
3
4
5
6
7
7
7
7
7
7
7
7
7
7
7
7
8
8
8
8
8
8
9
9
10
10
10
10
11
12
12
13
14
15
16
17
17
18
18
18A
18A
19
20
21
22
22
23
24
25
25
26
1
DISCONTINUE
COVER, CLUTCH

11341-37E01-000   1134137E01000

1134137E01000
Not available
2
GASKET, CLUTCH COVER

11482-37E01-000  

11482-37E02-000
 1148237E01000

Unit Price

3
COVER, CLUTCH OUTER

11371-37E01-000  

11371-37F01-000
 1137137E01000

Unit Price

4
O-RING, CL COVER OUTER

11484-37E00-000  

11484-37E01-000
 1148437E00000

Unit Price

5
PIN
PIN

04211-09109-000   0421109109000

0421109109000

Unit Price

6
PIN 11X16<br />PIN
PIN 11X16
PIN

04211-11169-000   0421111169000

0421111169000

Unit Price

7
BOLT

01547-06253-000  

01547-0625B-000
 0154706253000

Unit Price

8
BOLT

01547-06303-000  

01547-0630B-000
 0154706303000

Unit Price

9
BOLT

01547-06403-000  

01547-0640B-000
 0154706403000

Unit Price

10
BOLT

01547-06603-000  

01547-0660B-000
 0154706603000

Unit Price

11
PLUG SET
PLUG SET

09200-20810-000  

09200-20811-000
 0920020810000

Unit Price

12
SCREWM6X1X10

09128-06004-000  

09128-06044-000
 0912806004000

Unit Price

13
TACH GEAR WASHER<br />GASKET
TACH GEAR WASHER
GASKET

09168-06004-000   0916806004000

0916806004000

Unit Price

14
COVER, MAGNETO

11351-37E00-000  

11351-37F00-000
 1135137E00000

Unit Price

15
GASKET, MAGNETO COVER

11483-37E00-000  

11483-37E02-000
 1148337E00000

Unit Price

16
BOLT

01547-06203-000  

01547-0620B-000
 0154706203000

Unit Price

17
COVER, ENGINE SPROCKET
COVER, SPROCKET

11360-28E00-000   1136028E00000

1136028E00000

Unit Price

17
COVER, ENGINE SPROCKET
COVER, SPROCKET

11360-36E00-000   1136036E00000

1136036E00000

Unit Price

18
BOLT

01547-06253-000  

01547-0625B-000
 0154706253000

Unit Price

18
BOLT

01547-06303-000  

01547-0630B-000
 0154706303000

Unit Price

18A
WASHER, 6.5X14X2.0

09160-06093-000  

09160-06126-000
 0916006093000

Unit Price

19
PLATE, FR CHAIN GUIDE
PLATE, CHAIN GUIDE

27641-37E00-000   2764137E00000

2764137E00000

Unit Price

20
DISCONTINUE
IMPELLER, WATER PUMP

17491-37E00-000   1749137E00000

1749137E00000
Not available
21
SEAL, WATER PUMP OIL

17461-28C10-000  

17461-03B00-000
 1746128C10000

Unit Price

22
DISCONTINUE

17441-37E00-000  

1744137E00000
Not available
23
BEARING
BEARING, RH (8X22X7)

09262-08005-000   0926208005000

0926208005000

Unit Price

24
CIRCLIP

08331-31106-000  

08331-31109-000
 0833131106000

Unit Price

25
SHIM, T:1.0

08211-10141-000  

09181-10111-000
 0821110141000

Unit Price

26
BEARING,10X26X8<br />BEARING, LH (10X26X8)
BEARING, 10X26X8
BEARING, LH (10X26X8)

09262-10014-000   0926210014000

0926210014000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
