Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

SHOCK ABSORBER (MODEL T) REFER TO FIG.34A(I- 8) FOR MODEL V

SHOCK ABSORBER (MODEL V) FOR SUZUKI RM 250 1996

SHOCK ABSORBER (MODEL W) REFER TO FIG.34C(I-10) FOR MODEL X

Item numbers

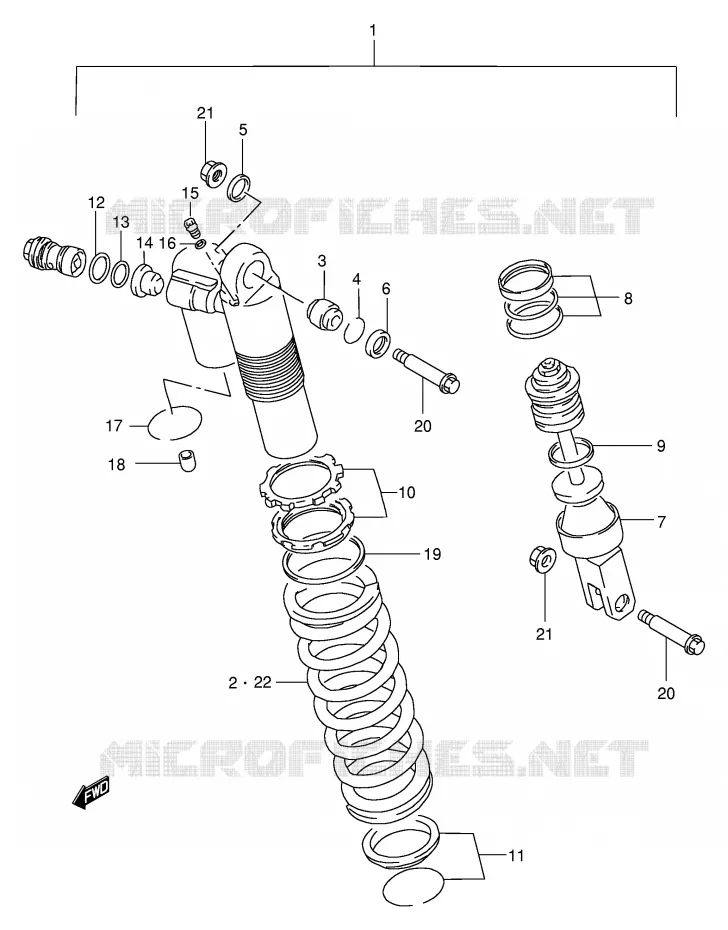

SHOCK ABSORBER (MODEL V) Suzuki MOTO 250 RM 1996 RM250T(E3/E28)
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
21
22
22
1
ABSORBER ASSY, REAR SHOCK (PURPLE)

62100-37E30-0RM   6210037E300RM

6210037E300RM
Not available
1
ABSORBER ASSY, REAR SHOCK (PURPLE)

62100-37E40-0RM   6210037E400RM

6210037E400RM
Not available
2
SPRING (K=5.2)

62211-37E30-000   6221137E30000

6221137E30000
Not available
3
BEARING, RR SHOCK ABSORBER
BEARING

62175-36E00-000   6217536E00000

6217536E00000

Unit Price

4
RING, STOPPER
RING

62277-27C40-000   6227727C40000

6227727C40000

Unit Price

5
SEAL, DUST UPR, R
SEAL, DUST RH

62226-36E00-000   6222636E00000

6222636E00000

Unit Price

6
SEAL, DUST UPR, L
SEAL, DUST LH

62226-36E10-000   6222636E10000

6222636E10000

Unit Price

7
ROD, PISTON

62120-37E30-000   6212037E30000

6212037E30000
Not available
8
DISCONTINUE
O RING SET

62150-28E00-000   6215028E00000

6215028E00000
Not available
9
DISCONTINUE
RING, STOPPER

62279-43D00-000   6227943D00000

6227943D00000
Not available
10
ADJUSTER NUT SET

62190-28E00-000   6219028E00000

6219028E00000
Not available
11
DISCONTINUE
SPRING SEAT SET

62220-28E00-000   6222028E00000

6222028E00000
Not available
12
O RING

62131-28E00-000   6213128E00000

6213128E00000

Unit Price

13
O RING, CTR BOLT UPR
O RING, INNER

51174-43D00-000   5117443D00000

5117443D00000

Unit Price

14
DISCONTINUE
COLLAR

62227-36E00-000   6222736E00000

6222736E00000
Not available
15
DISCONTINUE
BOLT

62281-27C40-000   6228127C40000

6228127C40000
Not available
16
GASKET,DRAIN,PLUG<br />GASKET
GASKET, DRAIN, PLUG
GASKET

51183-31030-000   5118331030000

5118331030000

Unit Price

17
RING, STOPPER

62278-36E00-000   6227836E00000

6227836E00000

Unit Price

18
CAP

51294-20400-000   5129420400000

5129420400000

Unit Price

19
DISCONTINUE
SEAT, SPRING

62195-36E20-000   6219536E20000

6219536E20000
Not available
20
BOLT 10X47.5
BOLT

09103-10149-000   0910310149000

0910310149000

Unit Price

21
NUT

09159-10058-000  

09159-10115-000
 0915910058000

Unit Price

22
DISCONTINUE
SPRING (SOFT, K=4.8)

62211-37E00-000   6221137E00000

6221137E00000
Not available
22
SPRING (SOFT, K=5.0)

62211-37E10-000   6221137E10000

6221137E10000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
