Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT FORK (MODEL X) REFER TO FIG.28D(G-10) FOR MODEL Y

FRONT FORK (MODEL Y) FOR SUZUKI RM 250 1997

STEERING COLUMN (MODEL T / V / W) REFER TO FIG.29A(G-13) FOR MODEL X/Y

Item numbers

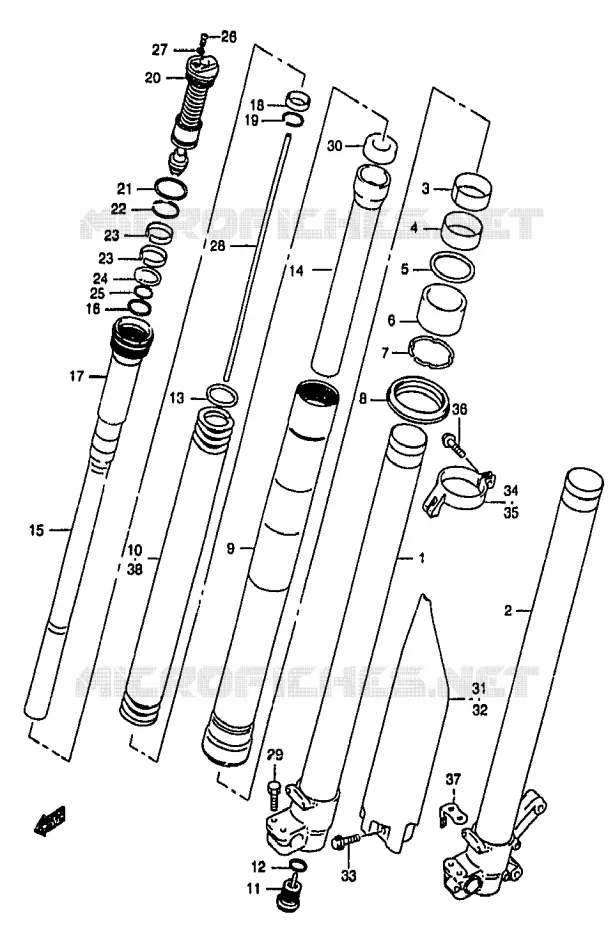

FRONT FORK (MODEL Y) Suzuki MOTO 250 RM 1997 RM250V(T/V/W/X/Y)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
38
1
DISCONTINUE
TUBE, INNER RH

51110-36E80-000   5111036E80000

5111036E80000
Not available
2
TUBE, INNER LH

51120-36E80-000   5112036E80000

5112036E80000
Not available
3
BUSH, SLIDE

51121-36E80-000   5112136E80000

5112136E80000

Unit Price

4
BUSH, GUIDE

51167-36E80-000   5116736E80000

5116736E80000

Unit Price

5
SPACER, SEAL

51158-36E00-000   5115836E00000

5115836E00000

Unit Price

6
SEAL, OIL

51153-36E00-000   5115336E00000

5115336E00000

Unit Price

7
RING, STOPPER
RING, OIL SEAL STOPPER

51156-36E00-000   5115636E00000

5115636E00000

Unit Price

8
SEAL, DUST

51173-36E80-000  

51173-36E00-000
 5117336E80000

Unit Price

9
DISCONTINUE
TUBE, OUTER

51130-36E80-000   5113036E80000

5113036E80000
Not available
10
SPRING, FRONT (K=0.44)

51171-37E80-000   5117137E80000

5117137E80000
Not available
11
DISCONTINUE
BOLT, CENTER

51170-36E20-000   5117036E20000

5117036E20000
Not available
12
O RING

51177-36E20-000   5117736E20000

5117736E20000

Unit Price

13
DISCONTINUE
STOPPER, SPRING

51355-36E60-000   5135536E60000

5135536E60000
Not available
14
DISCONTINUE
COLLAR, SPRING

51176-36E80-000   5117636E80000

5117636E80000
Not available
15
DISCONTINUE
DAMPER, CARTRIDGE

51190-36E80-000   5119036E80000

5119036E80000
Not available
16
O RING

62131-28E30-000  

62131-28E00-000
 6213128E30000

Unit Price

17
DISCONTINUE
SUB TANK

51198-36E60-000   5119836E60000

5119836E60000
Not available
18
VALVE, OIL LOCK

51157-36E60-000   5115736E60000

5115736E60000
Not available
19
DISCONTINUE
RING, VALVE STOPPER

51154-36E60-000   5115436E60000

5115436E60000
Not available
20
DISCONTINUE
BOLT, FORK

51351-36E80-000   5135136E80000

5135136E80000
Not available
21
O RING
O RING, UPPER

51117-36E60-000   5111736E60000

5111736E60000

Unit Price

22
O RING
O RING, BOLT

51117-36E00-000   5111736E00000

5111736E00000

Unit Price

23
BUSH, FORK BOLT SLIDE

51123-28E30-000   5112328E30000

5112328E30000

Unit Price

24
O RING
O RING, CENTER

51174-36E40-000   5117436E40000

5117436E40000

Unit Price

25
DISCONTINUE
O RING, LOWER

51175-36E60-000   5117536E60000

5117536E60000
Not available
26
BOLT, PLUG

51357-28E30-000   5135728E30000

5135728E30000

Unit Price

27
O RING, PLUG

51358-28E30-000   5135828E30000

5135828E30000

Unit Price

28
ROD, PUSH

51191-36E80-000   5119136E80000

5119136E80000
Not available
29
BOLT, HANDLE HOLDER(8X35)
BOLT

51321-27C40-000   5132127C40000

5132127C40000

Unit Price

30
DISCONTINUE
SEAT, SPRING

51180-36E80-000   5118036E80000

5118036E80000
Not available
31
DISCONTINUE
PROTECTOR, RH

51501-36E80-000   5150136E80000

5150136E80000
Not available
32
DISCONTINUE
PROTECTOR, LH

51511-36E80-000   5151136E80000

5151136E80000
Not available
33
BOLT, PROTECTOR(6X10)
BOLT

58627-27C40-000   5862727C40000

5862727C40000

Unit Price

34
GUIDE, PROTECTOR, R
GUIDE, PROTECTOR RH

51220-36E61-000   5122036E61000

5122036E61000

Unit Price

35
GUIDE, PROTECTOR, L
GUIDE, PROTECTOR LH

51210-36E61-000   5121036E61000

5121036E61000

Unit Price

36
BOLT<br />BOLT, GUIDE PROTECTOR
BOLT
BOLT, GUIDE PROTECTOR

01547-06207-000   0154706207000

0154706207000

Unit Price

37
DISCONTINUE
STOPPER, BRAKE HOSE LH

51231-36E60-000   5123136E60000

5123136E60000
Not available
38
DISCONTINUE
SPRING, FRONT (SOFT, K=0.40)

51171-37E60-000   5117137E60000

5117137E60000
Not available
38
DISCONTINUE
SPRING, FRONT (SOFT, K=0.42)

51171-37E70-000   5117137E70000

5117137E70000
Not available
99x
DAMPER ASSY, FRONT FORK RH

51103-37E90-000   5110337E90000

5110337E90000
Not available
99x
DAMPER ASSY, FRONT FORK LH

51104-37E90-000   5110437E90000

5110437E90000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
