Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT FORK (MODEL T) REFER TO FIG.28A(G- 4) FOR MODEL V

FRONT FORK (MODEL V) FOR SUZUKI RM 250 1998

FRONT FORK (MODEL W) REFER TO FIG.28C(G- 8) FOR MODEL X

Item numbers

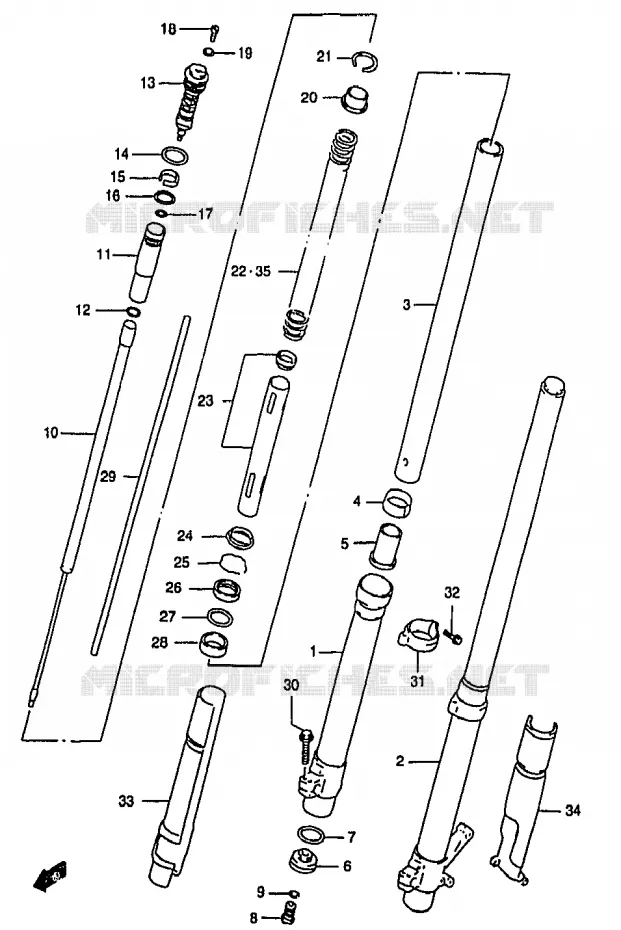

FRONT FORK (MODEL V) Suzuki MOTO 250 RM 1998 RM250W(T/V/W/X/Y)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
1
TUBE, OUTER RH

51130-36E20-000   5113036E20000

5113036E20000
Not available
2
TUBE, OUTER LH

51140-36E20-000   5114036E20000

5114036E20000
Not available
3
DISCONTINUE
TUBE, INNER

51110-36E20-000   5111036E20000

5111036E20000
Not available
4
DISCONTINUE
BUSH, SLIDE

51121-36E00-000   5112136E00000

5112136E00000
Not available
5
DISCONTINUE
PIECE, OIL LOCK

51195-36E30-000   5119536E30000

5119536E30000
Not available
6
DISCONTINUE
PLATE, END

51205-36E20-000   5120536E20000

5120536E20000
7
O RING

51117-27C40-000   5111727C40000

5111727C40000

Unit Price

8
DISCONTINUE
BOLT, CENTER

51170-36E20-000   5117036E20000

5117036E20000
Not available
9
O RING

51177-36E20-000   5117736E20000

5117736E20000

Unit Price

10
DISCONTINUE
ROD, DAMPER

51190-36E30-000   5119036E30000

5119036E30000
Not available
11
TANK, SUB

51198-36E20-000   5119836E20000

5119836E20000
Not available
12
O RING

51174-36E30-000   5117436E30000

5117436E30000
Not available
13
DISCONTINUE
BOLT, FORK

51351-36E30-000   5135136E30000

5135136E30000
Not available
14
O RING
O RING, UPPER

51117-36E00-000   5111736E00000

5111736E00000

Unit Price

15
BUSH, FORK BOLT SLIDE

51123-28E30-000   5112328E30000

5112328E30000

Unit Price

16
DISCONTINUE
O RING, CENTER

51174-36E20-000   5117436E20000

5117436E20000
Not available
17
O RING
O RING, LOWER

51175-36E20-000   5117536E20000

5117536E20000

Unit Price

18
BOLT, PLUG

51357-28E30-000   5135728E30000

5135728E30000

Unit Price

19
O RING, PLUG

51358-28E30-000   5135828E30000

5135828E30000

Unit Price

20
SPRING, STOPPER

51355-36E20-000   5135536E20000

5135536E20000
Not available
21
DISCONTINUE
RING, STOPPER

51354-36E20-000   5135436E20000

5135436E20000
Not available
22
SPRING, FRONT (K=0.42)

51171-37E20-000   5117137E20000

5117137E20000
Not available
23
DISCONTINUE
COLLAR, SPRING

51176-36E20-000   5117636E20000

5117636E20000
Not available
24
SEAL, DUST

51173-36E00-000   5117336E00000

5117336E00000

Unit Price

25
RING, STOPPER

51156-36E00-000   5115636E00000

5115636E00000

Unit Price

26
SEAL, OIL

51153-36E00-000   5115336E00000

5115336E00000

Unit Price

27
SPACER, SEAL

51158-36E00-000   5115836E00000

5115836E00000

Unit Price

28
DISCONTINUE
BUSH, GUIDE

51167-36E00-000   5116736E00000

5116736E00000
Not available
29
DISCONTINUE
ROD, PUSH

51191-36E20-000   5119136E20000

5119136E20000
Not available
30
BOLT, HANDLE HOLDER(8X35)
BOLT

51321-27C40-000   5132127C40000

5132127C40000

Unit Price

31
DISCONTINUE
GUIDE, FRONT PROTECTOR RH

51211-36E00-000   5121136E00000

5121136E00000
Not available
31
DISCONTINUE
GUIDE, FRONT PROTECTOR LH

51221-36E00-000   5122136E00000

5122136E00000
Not available
32
BOLT

58628-43D00-000  

01547-06207-000
 5862843D00000

Unit Price

33
DISCONTINUE
PROTECTOR, OUTER TUBE RH (YELLOW)

51551-36E10-25Y   5155136E1025Y

5155136E1025Y
Not available
34
DISCONTINUE
PROTECTOR, OUTER TUBE LH (YELLOW)

51552-36E10-25Y   5155236E1025Y

5155236E1025Y
Not available
35
DISCONTINUE
SPRING, FRONT (SOFT, K=0.40)

51171-37E30-000   5117137E30000

5117137E30000
Not available
99x
DAMPER ASSY, FRONT FORK RH

51103-37E30-000   5110337E30000

5110337E30000
Not available
99x
DAMPER ASSY, FRONT FORK LH

51104-37E30-000   5110437E30000

5110437E30000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 250 RM 1998
