CRANKCASE

CRANKCASE COVER- WATER PUMP FOR SUZUKI RM 250 2002

CRANKSHAFT

Item numbers

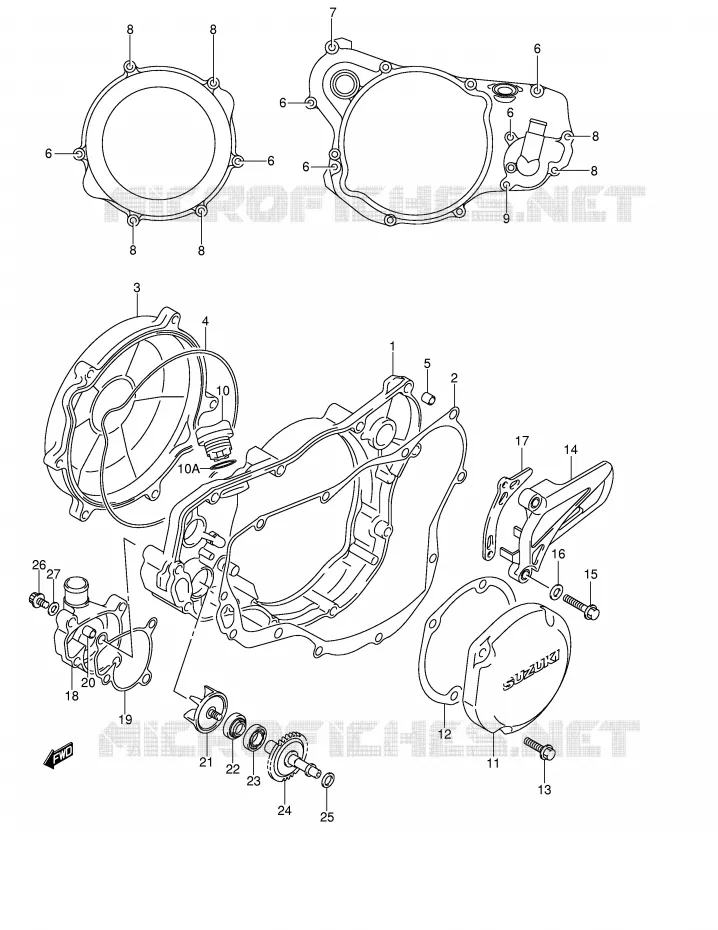

CRANKCASE COVER- WATER PUMP Suzuki MOTO 250 RM 2002 RM250K2(E2)
1
2
2
3
3
4
5
6
6
6
6
6
6
6
6
6
6
6
6
7
7
8
8
8
8
8
8
8
8
8
8
8
8
9
9
10A
10
11
11
12
13
13
14
15
15
16
17
18
18
19
20
21
21
22
23
24
25
26
27
1
COVER, CLUTCH

11341-37F00-000   1134137F00000

1134137F00000
Not available
2
GASKET, COVER

11482-37F00-000  

11482-37F01-000
 1148237F00000

Unit Price

3
COVER, CLUTCH OUTER

11371-37E01-000  

11371-37F01-000
 1137137E01000

Unit Price

4
O-RING, CL COVER OUTER

11484-37E00-000  

11484-37E01-000
 1148437E00000

Unit Price

5
PIN
PIN

04211-09109-000   0421109109000

0421109109000

Unit Price

6
BOLT

01547-06253-000  

01547-0625B-000
 0154706253000

Unit Price

6
BOLT,CL COVER<br />BOLT (L:25)
BOLT, CL COVER
BOLT (L:25)

09103-06250-000   0910306250000

0910306250000

Unit Price

7
BOLT

01547-06303-000  

01547-0630B-000
 0154706303000

Unit Price

7
BOLT, CL COVER
BOLT (L:30)

09103-06251-000   0910306251000

0910306251000

Unit Price

8
BOLT

01547-06603-000  

01547-0660B-000
 0154706603000

Unit Price

8
BOLT, CL COVER
BOLT (L:60)

09103-06253-000   0910306253000

0910306253000

Unit Price

9
BOLT

01547-06653-000  

01547-0665B-000
 0154706653000

Unit Price

9
BOLT, CRANKCASE L65
BOLT (L:65)

09103-06245-000   0910306245000

0910306245000

Unit Price

10
PLUG, OIL FILLER
PLUG, OIL FILLER

11971-12C51-000   1197112C51000

1197112C51000

Unit Price

10A
O-RING,OIL FILLER<br />O RING (D:3.1,ID:16.8)
O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000   0928017003000

0928017003000

Unit Price

11
COVER, MAGNETO

11351-37E00-000  

11351-37F00-000
 1135137E00000

Unit Price

12
GASKET, MAGNETO COVER

11483-37E01-000  

11483-37E02-000
 1148337E01000

Unit Price

13
BOLT

01547-06203-000  

01547-0620B-000
 0154706203000

Unit Price

13
BOLT

09103-06235-000  

01547-06207-000
 0910306235000

Unit Price

14
COVER, ENGINE SPROCKET
COVER, SPROCKET

11360-36E00-000   1136036E00000

1136036E00000

Unit Price

15
BOLT

01547-06303-000  

01547-0630B-000
 0154706303000

Unit Price

15
BOLT, CL COVER
BOLT

09103-06251-000   0910306251000

0910306251000

Unit Price

16
WASHER

08322-01063-000  

08322-0106A-000
 0832201063000

Unit Price

17
PLATE, FR CHAIN GUIDE
PLATE, CHAIN GUIDE

27641-37E00-000   2764137E00000

2764137E00000

Unit Price

18
DISCONTINUE

17411-37F00-000  

1741137F00000
Not available
19
GASKET, WATER PUMP CASE

17431-37F00-000   1743137F00000

1743137F00000

Unit Price

20
PIN
PIN

04211-09109-000   0421109109000

0421109109000

Unit Price

21
DISCONTINUE

17491-37F00-000  

1749137F00000
Not available
22
SEAL, WATER PUMP OIL

17461-28C10-000  

17461-03B00-000
 1746128C10000

Unit Price

23
BALL BEARING<br />BEARING
BALL BEARING
BEARING

08113-69010-000   0811369010000

0811369010000

Unit Price

24
DISCONTINUE
SHAFT, WATER PUMP

17510-37F00-000   1751037F00000

1751037F00000
Not available
25
SHIM, 8.8X14X1.0
WASHER (8X14X1.0)

09181-08139-000   0918108139000

0918108139000

Unit Price

26
BOLT

07120-06103-000  

07120-0610B-000
 0712006103000

Unit Price

27
TACH GEAR WASHER<br />GASKET
TACH GEAR WASHER
GASKET

09168-06004-000   0916806004000

0916806004000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
