Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER (MODEL K3 / K4 / K5 / K6)

EXHAUST VALVE (MODEL K1) FOR SUZUKI RM 250 2002

EXHAUST VALVE (MODEL K2) REFER TO FIG.2B(B-14) FOR MODEL K3/K4/K5/K6

Item numbers

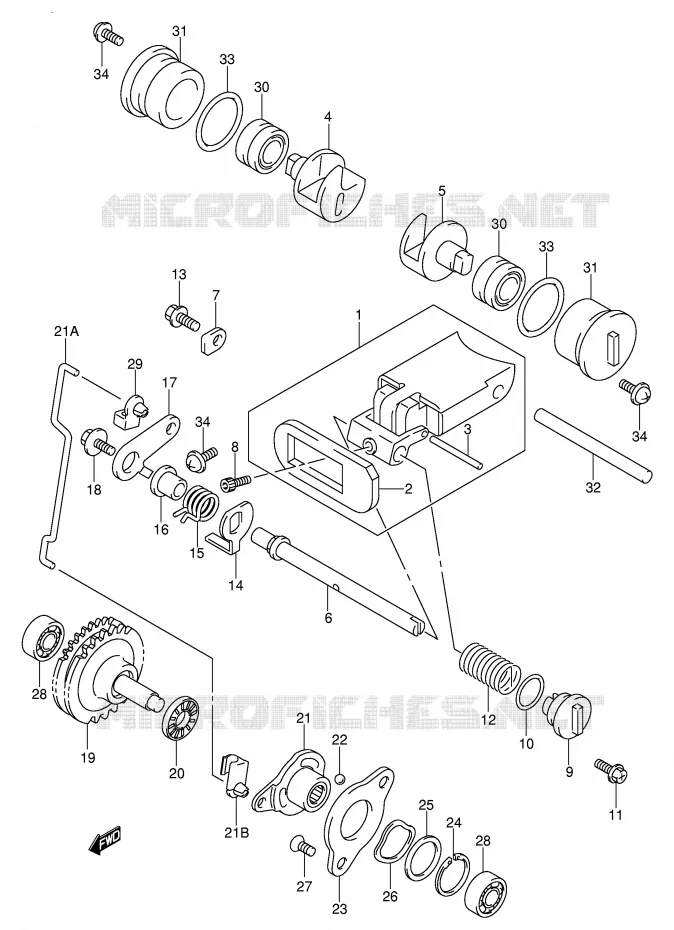

EXHAUST VALVE (MODEL K1) Suzuki MOTO 250 RM 2002 RM250K2(E3/E28)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21A
21B
22
23
24
25
26
27
28
28
29
30
30
31
31
32
33
33
34
34
34
1
DISCONTINUE
VALVE, EXHAUST MAIN

11206-37F00-000   1120637F00000

1120637F00000
Not available
2
GUIDE, EXHAUST VALVE

11261-37F00-000   1126137F00000

1126137F00000
Not available
3
PIN, EXHAUST VALVE

09261-04013-000   0926104013000

0926104013000
Not available
4
VALVE, EXHAUST SIDE RH

11255-37F00-000   1125537F00000

1125537F00000
Not available
5
DISCONTINUE
VALVE, EXHAUST SIDE LH

11256-37F00-000   1125637F00000

1125637F00000
Not available
6
SHAFT, EXHAUST VALVE

11259-37E00-000   1125937E00000

1125937E00000

Unit Price

7
RETAINER<br />RETAINER, EX VALVE STOP
RETAINER
RETAINER, EX VALVE STOP

24741-21A00-000   2474121A00000

2474121A00000

Unit Price

8
BOLT, EXHAUST VALVE
BOLT (4X8)

09106-04003-000   0910604003000

0910604003000

Unit Price

9
DISCONTINUE
CAP, EXHAUST VALVE

11274-37E11-000   1127437E11000

1127437E11000
Not available
10
O RING, HEAD COVER
O RING (D:1.9, ID:14.5)

09280-15006-000   0928015006000

0928015006000

Unit Price

11
SCREW

02162-05123-000  

02162-0512A-000
 0216205123000

Unit Price

12
DISCONTINUE

11257-37F00-000  

1125737F00000
Not available
13
BOLT

01547-06103-000  

01547-0610B-000
 0154706103000

Unit Price

14
LEVER, EXHAUST VALVE NO.2

11267-00B21-000   1126700B21000

1126700B21000

Unit Price

15
SPRING

09444-16010-000   0944416010000

0944416010000
Not available
16
SPACER, EXHAUST VALVE
SPACER

11268-01B01-000   1126801B01000

1126801B01000

Unit Price

17
DISCONTINUE
LEVER, EXHAUST VALVE NO.1

11266-37F00-000   1126637F00000

1126637F00000
Not available
18
BOLT<br />BOLT (5X12)
BOLT
BOLT (5X12)

09118-05005-000   0911805005000

0911805005000

Unit Price

19
DISCONTINUE
GOVERNOR ASSY, EXHAUST VALVE

12670-37E11-000   1267037E11000

1267037E11000
Not available
20
RD SFT ARM PIN BRG
BEARING (10.1X22X2.8)

09263-10002-000   0926310002000

0926310002000

Unit Price

21A
ROD, EXHAUST VALVE

12685-37F00-000   1268537F00000

1268537F00000

Unit Price

21B
BUSH, EXHAUST VALVE ROD NO.1
BUSH, EXHAUST VALVE NO.2

12686-36E00-000   1268636E00000

1268636E00000

Unit Price

21
DISCONTINUE

12680-01830-000  

1268001830000
Not available
22
BALL
BALL

06111-06003-000   0611106003000

0611106003000

Unit Price

23
STARTER, EXHAUST VALVE ACTUATOR
STATOR, ACTUATOR

12682-01B02-000   1268201B02000

1268201B02000

Unit Price

24
CIRCLIP

09380-19003-000   0938019003000

0938019003000

Unit Price

25
SHIM
SHIM (19.1X25X0.3)

09181-19004-000   0918119004000

0918119004000

Unit Price

26
WASHER
LOCK WASHER

09164-19001-000   0916419001000

0916419001000

Unit Price

27
SCREW (5X10)

09120-05003-000   0912005003000

0912005003000

Unit Price

28
BEARING

09262-08005-000   0926208005000

0926208005000

Unit Price

29
BUSH, EXHAUST VALVE ROD NO.1
BUSH, EXHAUST VALVE

12686-01B00-000   1268601B00000

1268601B00000
Not available
30
BEARING, EXH.SIDE VAL
BEARING, SIDE VALVE

09263-12026-000   0926312026000

0926312026000

Unit Price

31
DISCONTINUE
CAP, EX SIDE VALVE

11262-37F00-000   1126237F00000

1126237F00000
Not available
32
DISCONTINUE
PIN

09202-04020-000   0920204020000

0920204020000
Not available
33
DISCONTINUE
O RING

09280-29005-000   0928029005000

0928029005000
Not available
34
SCREW

02112-15123-000  

02142-0512A-000
 0211215123000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
