FRONT FORK (MODEL K2) REFER TO FIG.28B(I- 9) FOR MODEL K3

FRONT FORK (MODEL K3) FOR SUZUKI RM 250 2002

FRONT FORK (MODEL K4) REFER TO FIG.28D(I-13) FOR MODEL K5

Item numbers

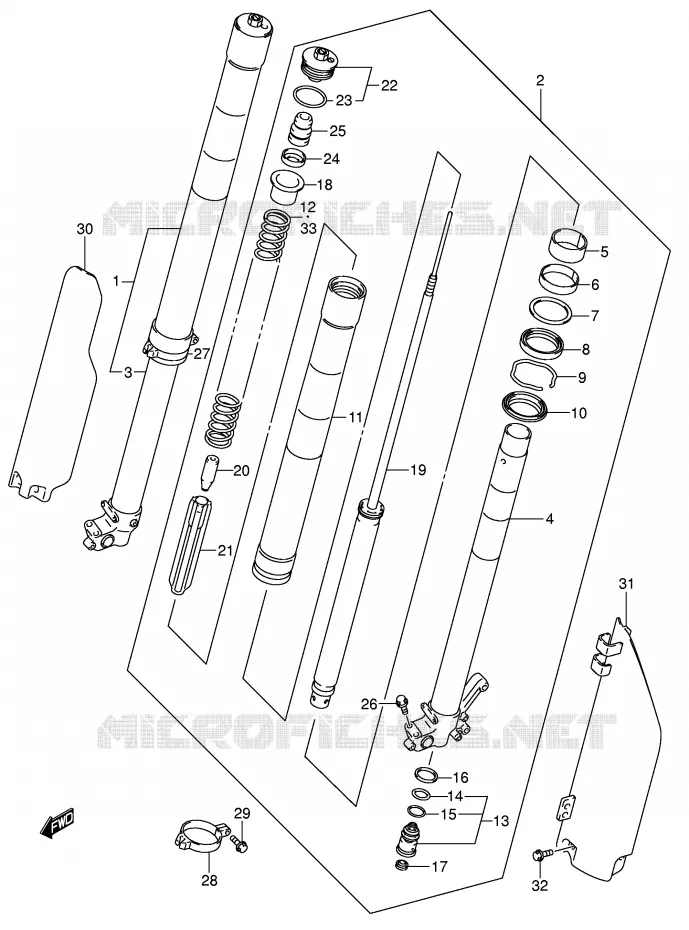

FRONT FORK (MODEL K3) Suzuki MOTO 250 RM 2002 RM250K2(E3/E28)
1
1
2
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
33
33
33
1
DAMPER ASSY, FRONT FORK RH

51103-37F40-000   5110337F40000

5110337F40000
Not available
1
DAMPER ASSY, FRONT FORK RH

51103-37F50-000   5110337F50000

5110337F50000
Not available
2
DAMPER ASSY, FRONT FORK LH

51104-37F40-000   5110437F40000

5110437F40000
Not available
2
DAMPER ASSY, FRONT FORK LH

51104-37F50-000   5110437F50000

5110437F50000
Not available
3
DISCONTINUE
TUBE, INNER RH

51110-37F40-000   5111037F40000

5111037F40000
Not available
4
DISCONTINUE
TUBE, INNER LH

51120-37F40-000   5112037F40000

5112037F40000
Not available
5
BUSH, SLIDE

51121-37F00-000   5112137F00000

5112137F00000

Unit Price

6
DISCONTINUE
BUSH, GUIDE

51167-37F40-000   5116737F40000

5116737F40000
Not available
7
WASHER
SPACER, SEAL

51158-27C00-000   5115827C00000

5115827C00000

Unit Price

8
SEAL, OIL

51153-37F00-000   5115337F00000

5115337F00000

Unit Price

9
RING, STOPPER
RING, OIL SEAL STOPPER

51156-27C00-000   5115627C00000

5115627C00000

Unit Price

10
DISCONTINUE
SEAL, DUST

51173-37F00-000   5117337F00000

5117337F00000
Not available
11
DISCONTINUE
TUBE, OUTER

51130-37F40-000   5113037F40000

5113037F40000
Not available
12
DISCONTINUE
SPRING, FRONT (K=4.2)

51171-37F70-000   5117137F70000

5117137F70000
Not available
12
DISCONTINUE
SPRING, FRONT (K=4.3)

51171-37F80-000   5117137F80000

5117137F80000
Not available
13
DISCONTINUE
VALVE ASSY, BASE

51170-37F40-000   5117037F40000

5117037F40000
Not available
13
VALVE ASSY, BASE

51170-37F50-000   5117037F50000

5117037F50000
Not available
14
DISCONTINUE
O RING

51174-37F40-000   5117437F40000

5117437F40000
Not available
15
DISCONTINUE
O RING

51177-37F40-000   5117737F40000

5117737F40000
Not available
16
DISCONTINUE
PACKING

51148-37F00-000   5114837F00000

5114837F00000
Not available
17
CAP, RUBBER

51189-28C00-000   5118928C00000

5118928C00000
Not available
18
DISCONTINUE
SPACER

51198-37F40-000   5119837F40000

5119837F40000
Not available
19
DISCONTINUE
ROD ASSY, PISTON

51128-37F40-000   5112837F40000

5112837F40000
Not available
19
ROD ASSY, PISTON

51128-37F50-000   5112837F50000

5112837F50000
Not available
20
DISCONTINUE
NUT

51814-37F40-000   5181437F40000

5181437F40000
Not available
21
DISCONTINUE
GUIDE, SPRING

51172-37F40-000   5117237F40000

5117237F40000
Not available
22
DISCONTINUE
CAP

51351-37F40-000   5135137F40000

5135137F40000
Not available
23
O RING

51117-37F40-000   5111737F40000

5111737F40000

Unit Price

24
DISCONTINUE
WASHER

51197-37F40-000   5119737F40000

5119737F40000
Not available
25
DISCONTINUE
RUBBER, CUSHION

51196-37F40-000   5119637F40000

5119637F40000
Not available
26
BOLT

51321-37F00-000  

51451-10G00-000
 5132137F00000

Unit Price

27
DISCONTINUE
GUIDE, PROTECTOR RH

51220-37F00-000   5122037F00000

5122037F00000
Not available
28
GUIDE, PROTECTOR, L
GUIDE, PROTECTOR LH

51210-37F00-000   5121037F00000

5121037F00000

Unit Price

29
BOLT,6X25<br />BOLT
BOLT, 6X25
BOLT

01547-06257-000   0154706257000

0154706257000

Unit Price

30
DISCONTINUE
PROTECTOR, RH

51501-36E60-000   5150136E60000

5150136E60000
Not available
31
DISCONTINUE
PROTECTOR, LH

51511-36E60-000   5151136E60000

5151136E60000
Not available
32
BOLT, EXHAUST VALVE S
BOLT

09103-06256-000   0910306256000

0910306256000

Unit Price

33
DISCONTINUE
SPRING, FRONT (SOFT, K=4.2)

51171-37F70-000   5117137F70000

5117137F70000
Not available
33
DISCONTINUE
SPRING, FRONT (HARD, K=4.3)

51171-37F80-000   5117137F80000

5117137F80000
Not available
33
SPRING, FRONT (SOFT, K=4.1)

51171-37F90-000   5117137F90000

5117137F90000
Not available
33
DISCONTINUE
SPRING, FRONT (HARD, K=4.4)

51171-37FA0-000   5117137FA0000

5117137FA0000
Not available
33
DISCONTINUE
SPRING, FRONT (HARD, K=4.5)

51171-37FB0-000   5117137FB0000

5117137FB0000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
