Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKSHAFT

CARBURETOR FOR SUZUKI RM 250 2007

AIR FILTER

Item numbers

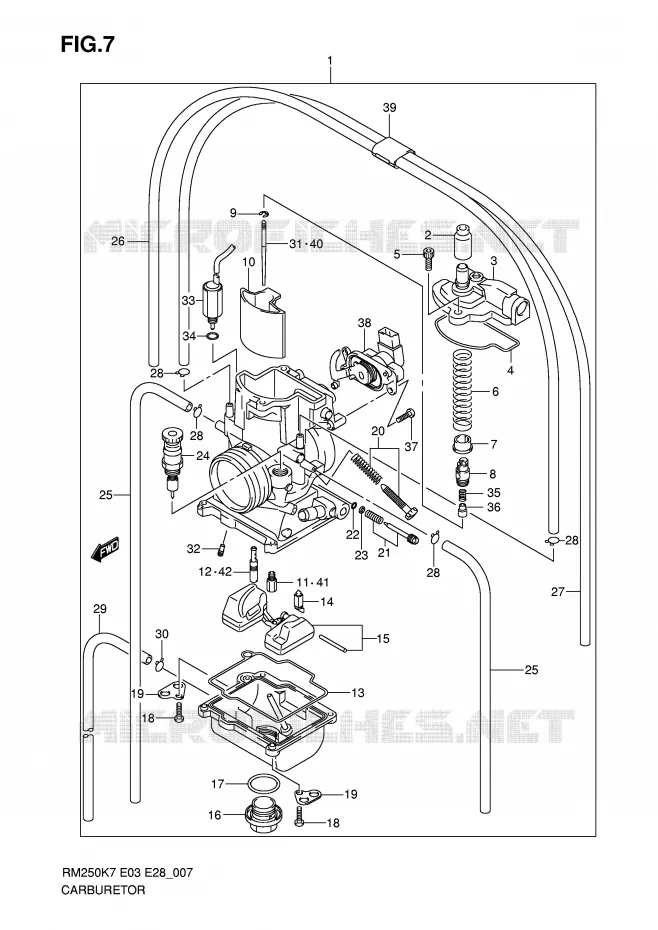

CARBURETOR Suzuki MOTO 250 RM 2007 RM250K7(E3/E28)
1
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
18
18
19
19
20
21
22
23
24
25
25
26
27
28
28
28
28
29
30
31
31
32
32
33
34
35
36
37
38
39
40
40
40
40
40
40
40
40
40
40
40
40
40
40
41
41
41
41
41
41
41
41
41
41
41
41
41
41
41
41
41
41
41
42
42
42
42
42
42
42
42
42
42
1
CARBURETOR ASSY

13200-37FB0-000   1320037FB0000

1320037FB0000

Unit Price

1
CARBURETOR ASSY

13200-37FA0-000   1320037FA0000

1320037FA0000
Not available
2
CAP, CARBURETOR

13681-43D30-000   1368143D30000

1368143D30000

Unit Price

3
TOP

13261-37F80-000   1326137F80000

1326137F80000

Unit Price

4
O RING

13262-37F80-000   1326237F80000

1326237F80000

Unit Price

5
SCREW

13262-37F00-000   1326237F00000

1326237F00000

Unit Price

6
SPRING, THROTTLE VALVE

13573-37F00-000   1357337F00000

1357337F00000

Unit Price

7
COLLAR, THROTTLE VALVE

13424-43D30-000   1342443D30000

1342443D30000

Unit Price

8
HOLDER, CABLE

13581-37F80-000   1358137F80000

1358137F80000

Unit Price

9
CLIP, NEEDLE

13394-28E00-000   1339428E00000

1339428E00000

Unit Price

10
VALVE, PISTON
VALVE, THROTTLE

13551-37F80-000   1355137F80000

1355137F80000

Unit Price

11
JET, MAIN (168)

09491-33010-000   0949133010000

0949133010000

Unit Price

11
JET, MAIN (172)

09491-34011-000   0949134011000

0949134011000

Unit Price

12
JET, SLOW, 48
JET, PILOT (48)

09492-48013-000   0949248013000

0949248013000

Unit Price

12
JET, SLOW, 50
JET, PILOT (50)

09492-50023-000   0949250023000

0949250023000

Unit Price

13
GASKET, FLOAT CAHMBER
GASKET, FLOAT CHAMBER

13696-44E00-000   1369644E00000

1369644E00000

Unit Price

14
VALVE SET, FLOAT

13370-43D30-000   1337043D30000

1337043D30000

Unit Price

15
FLOAT SET

13240-36E20-000   1324036E20000

1324036E20000

Unit Price

16
BOLT, DRAIN

13247-28E00-000   1324728E00000

1324728E00000

Unit Price

17
O RING

13246-28E00-000   1324628E00000

1324628E00000

Unit Price

18
SCREW
SCREW

13602-26E10-000   1360226E10000

1360226E10000

Unit Price

19
PLATE

13693-36E00-000   1369336E00000

1369336E00000

Unit Price

20
SCREW SET, STOP

13270-43D30-000   1327043D30000

1327043D30000

Unit Price

21
SCREW SET, AIR

13280-43D30-000   1328043D30000

1328043D30000

Unit Price

22
O RING
O RING

13295-26E00-000   1329526E00000

1329526E00000

Unit Price

23
WASHER
WASHER

13291-26E00-000   1329126E00000

1329126E00000

Unit Price

24
STARTER VALVE

13410-43D30-000   1341043D30000

1341043D30000

Unit Price

25
HOSE (4X7X620)

13686-36E00-000   1368636E00000

1368636E00000

Unit Price

26
HOSE (4X7X620)

13686-36E00-000   1368636E00000

1368636E00000

Unit Price

27
HOSE (4X7X620)

13686-36E00-000   1368636E00000

1368636E00000

Unit Price

28
CLIP
CLIP

09401-06101-000   0940106101000

0940106101000

Unit Price

29
HOSE,3.5*6.5*600<br />HOSE (3.5X6.5X600)
HOSE, 3.5*6.5*600
HOSE (3.5X6.5X600)

09351-35653-600   0935135653600

0935135653600

Unit Price

30
CLIP

09401-05402-000   0940105402000

0940105402000
Not available
31
NEEDLE, JET(NECJ)
NEEDLE, JET

13383-37FE0-000   1338337FE0000

1338337FE0000

Unit Price

31
NEEDLE, JET(NEDH)
NEEDLE, JET

13383-37FK0-000   1338337FK0000

1338337FK0000

Unit Price

32
JET, POWER (55)

09492-55019-000   0949255019000

0949255019000

Unit Price

32
JET, POWER (45)

13345-37F00-000   1334537F00000

1334537F00000

Unit Price

33
SOLENOID ASSY

13160-37E01-000   1316037E01000

1316037E01000

Unit Price

34
O RING

13453-37E00-000   1345337E00000

1345337E00000

Unit Price

35
SPRING

13582-37F80-000   1358237F80000

1358237F80000

Unit Price

36
COLLAR

13583-37F80-000   1358337F80000

1358337F80000

Unit Price

37
DISCONTINUE
SCREW

13602-37F00-000   1360237F00000

1360237F00000
Not available
38
SENSOR ASSY

13580-37F80-000   1358037F80000

1358037F80000

Unit Price

39
CLIP

13451-37F00-000   1345137F00000

1345137F00000

Unit Price

40
NEEDLE, JET (NECF)

13383-37FA0-000   1338337FA0000

1338337FA0000

Unit Price

40
NEEDLE, JET (NECG)

13383-37FB0-000   1338337FB0000

1338337FB0000

Unit Price

40
NEEDLE, JET (NECH)

13383-37FC0-000   1338337FC0000

1338337FC0000

Unit Price

40
NEEDLE, JET (NECW)

13383-37FD0-000   1338337FD0000

1338337FD0000

Unit Price

40
NEEDLE, JET (NECJ)

13383-37FE0-000   1338337FE0000

1338337FE0000

Unit Price

40
NEEDLE, JET (NECK)

13383-37FF0-000   1338337FF0000

1338337FF0000

Unit Price

40
NEEDLE, JET (NECL)

13383-37FG0-000   1338337FG0000

1338337FG0000

Unit Price

40
NEEDLE, JET (NEDF)

13383-37FH0-000   1338337FH0000

1338337FH0000

Unit Price

40
NEEDLE, JET (NEDG)

13383-37FJ0-000   1338337FJ0000

1338337FJ0000

Unit Price

40
NEEDLE, JET (NEDH)

13383-37FK0-000   1338337FK0000

1338337FK0000

Unit Price

40
NEEDLE, JET (NEDW)

13383-37FL0-000   1338337FL0000

1338337FL0000

Unit Price

40
NEEDLE, JET (NEDJ)

13383-37FM0-000   1338337FM0000

1338337FM0000

Unit Price

40
NEEDLE, JET (NEDK)

13383-37FN0-000   1338337FN0000

1338337FN0000

Unit Price

40
NEEDLE, JET (NEDL)

13383-37FP0-000   1338337FP0000

1338337FP0000

Unit Price

41
JET, MAIN (150)

09491-30018-000   0949130018000

0949130018000

Unit Price

41
JET, MAIN (152)

09491-30019-000   0949130019000

0949130019000

Unit Price

41
JET, MAIN (155)

09491-31012-000   0949131012000

0949131012000

Unit Price

41
JET, MAIN (158)

09491-31013-000   0949131013000

0949131013000

Unit Price

41
JET, MAIN (160)

09491-32010-000   0949132010000

0949132010000

Unit Price

41
JET, MAIN (162)

09491-32011-000   0949132011000

0949132011000

Unit Price

41
JET, MAIN (165)

09491-33009-000   0949133009000

0949133009000

Unit Price

41
JET, MAIN (168)

09491-33010-000   0949133010000

0949133010000

Unit Price

41
JET, MAIN (172)

09491-34011-000   0949134011000

0949134011000

Unit Price

41
JET, MAIN (175)

09491-35009-000   0949135009000

0949135009000

Unit Price

41
JET, MAIN (178)

09491-35010-000   0949135010000

0949135010000

Unit Price

41
JET, MAIN (180)

09491-36008-000   0949136008000

0949136008000

Unit Price

41
JET, MAIN (185)

09491-37008-000   0949137008000

0949137008000

Unit Price

41
JET, MAIN (190)

09491-38011-000   0949138011000

0949138011000

Unit Price

41
JET, MAIN (195)

09491-39001-000   0949139001000

0949139001000

Unit Price

41
JET, MAIN
JET, MAIN (200)

09491-40013-000   0949140013000

0949140013000

Unit Price

41
JET, MAIN (170)

09491-34010-000   0949134010000

0949134010000

Unit Price

41
JET, MAIN (205)

09491-41001-000   0949141001000

0949141001000
Not available
41
JET, MAIN (210)

09491-42006-000   0949142006000

0949142006000
Not available
42
JET, SLOW, 35
JET, PILOT (35)

09492-35019-000   0949235019000

0949235019000

Unit Price

42
JET, SLOW, 40
JET, PILOT (40)

09492-40022-000   0949240022000

0949240022000

Unit Price

42
JET, SLOW, 42
JET, PILOT (42)

09492-42019-000   0949242019000

0949242019000

Unit Price

42
JET, SLOW
JET, PILOT (45)

09492-45032-000   0949245032000

0949245032000

Unit Price

42
JET, SLOW, 48
JET, PILOT (48)

09492-48013-000   0949248013000

0949248013000

Unit Price

42
JET, SLOW, 50
JET, PILOT (50)

09492-50023-000   0949250023000

0949250023000

Unit Price

42
JET, SLOW(52)
JET, PILOT (52)

09492-52011-000   0949252011000

0949252011000

Unit Price

42
JET, SLOW, 55
JET, PILOT (55)

09492-55017-000   0949255017000

0949255017000

Unit Price

42
JET, PILOT (58)

09492-58001-000   0949258001000

0949258001000

Unit Price

42
JET, SLOW, 60
JET, PILOT (60)

09492-60016-000   0949260016000

0949260016000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 250 RM 2007

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 250 RM 2007

Choose your Suzuki 250 2007 RM model

250 RM 2007 RM250K7(E3/E28)

Suzuki RM

Displacement: 250 cc
Year: 2007
Model code RM250K7(E3 / E28)
