FRONT FORK (E1,MODEL V / W P37) REFER TO FIG.33A(H-4) FOR MODEL X P37

FRONT FORK (MODEL X P37) FOR SUZUKI RMX 250 1997

STEERING COLUMN

Item numbers

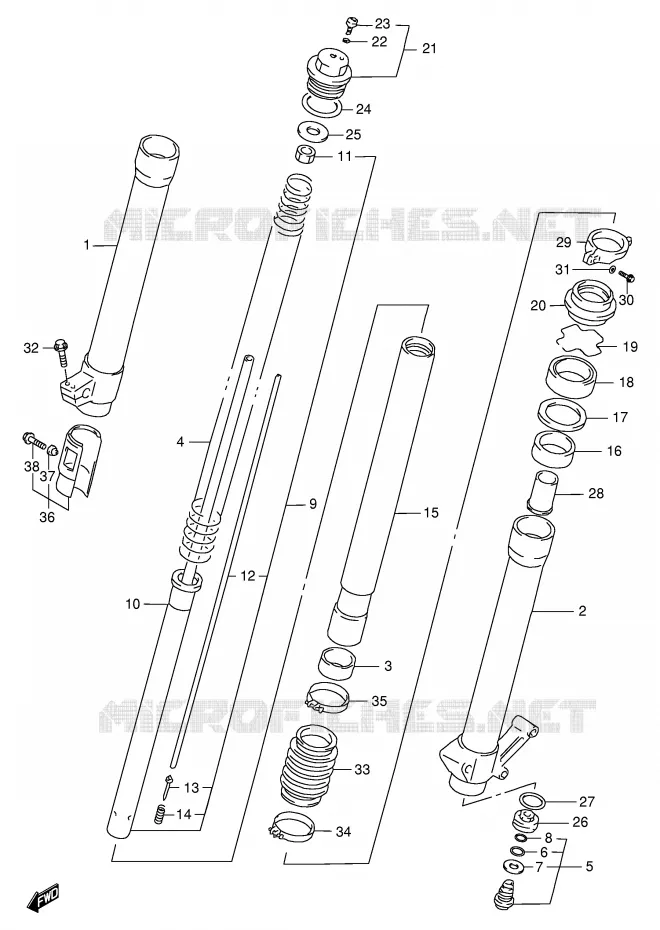

FRONT FORK (MODEL X P37) Suzuki MOTO 250 RMX 1997 RMX250V(E1)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
1
TUBE, OUTER RH

51130-29EA0-000   5113029EA0000

5113029EA0000
Not available
2
TUBE, OUTER LH

51140-29EA0-000   5114029EA0000

5114029EA0000
Not available
3
DISCONTINUE
BUSH, SLIDE

51121-27C40-000   5112127C40000

5112127C40000
Not available
4
SPRING, FRONT

51171-29EA0-000   5117129EA0000

5117129EA0000
Not available
5
DISCONTINUE
BOLT, CENTER

51170-29EA0-000   5117029EA0000

5117029EA0000
Not available
6
DISCONTINUE
O RING

51177-43D00-000   5117743D00000

5117743D00000
Not available
7
DISCONTINUE
GASKET

51148-43D00-000   5114843D00000

5114843D00000
Not available
8
O RING, CTR BOLT UPR
O RING

51174-43D00-000   5117443D00000

5117443D00000

Unit Price

9
ROD, DAMPER

51190-29EA0-000   5119029EA0000

5119029EA0000
Not available
10
DISCONTINUE
BUSH, SLIDE

51122-29EA0-000   5112229EA0000

5112229EA0000
Not available
11
NUT<br />NUT, PUSH
NUT
NUT, PUSH

51827-33E00-000   5182733E00000

5182733E00000

Unit Price

12
DISCONTINUE
ROD, PUSH

51191-29EA0-000   5119129EA0000

5119129EA0000
Not available
13
NEEDLE

51192-05D80-000   5119205D80000

5119205D80000

Unit Price

14
SPRING, PUSH ROD

51193-28E00-000   5119328E00000

5119328E00000

Unit Price

15
DISCONTINUE
TUBE, INNER

51110-29EA0-000   5111029EA0000

5111029EA0000
Not available
16
DISCONTINUE
BUSH, GUIDE

51167-27C40-000   5116727C40000

5116727C40000
Not available
17
SPACER, SEAL

51158-27C40-000   5115827C40000

5115827C40000

Unit Price

18
SEAL, OIL

51153-28E30-000   5115328E30000

5115328E30000

Unit Price

19
RING, OIL SEAL STOPPER

51156-27C40-000   5115627C40000

5115627C40000

Unit Price

20
SEAL, DUST

51173-28E40-000   5117328E40000

5117328E40000

Unit Price

21
DISCONTINUE
BOLT, FORK

51351-29EA0-000   5135129EA0000

5135129EA0000
Not available
22
O RING, PLUG
O RING

51358-28E30-000   5135828E30000

5135828E30000

Unit Price

23
BOLT, PLUG
BOLT

51357-28E30-000   5135728E30000

5135728E30000

Unit Price

24
O RING

51117-29EA0-000   5111729EA0000

5111729EA0000

Unit Price

25
DISCONTINUE
JOINT, SPRING

51172-29EA0-000   5117229EA0000

5117229EA0000
Not available
26
DISCONTINUE
PLATE, END

51205-29EA0-000   5120529EA0000

5120529EA0000
Not available
27
O RING,FORK BOLT<br />O RING
O RING, FORK BOLT
O RING

51187-08D00-000   5118708D00000

5118708D00000

Unit Price

28
PIECE, OIL LOCK

51195-29EA0-000   5119529EA0000

5119529EA0000
Not available
29
DISCONTINUE
HOLDER, BOOT

51203-29EA0-000   5120329EA0000

5120329EA0000
Not available
30
BOLT, GUIDE BOOT
BOLT

51579-29EC0-000   5157929EC0000

5157929EC0000

Unit Price

31
WASHER

51574-29EC0-000   5157429EC0000

5157429EC0000
Not available
32
BOLT, HOLDER AXLE(8X40)
BOLT, RH

51328-27E30-000   5132827E30000

5132827E30000

Unit Price

33
DISCONTINUE
BOOT (BLACK)

51571-29EA0-019   5157129EA0019

5157129EA0019
Not available
34
CLAMP, LOWER

51576-29EC0-000   5157629EC0000

5157629EC0000
Not available
35
DISCONTINUE
CLAMP, UPPER

51575-29EA0-000   5157529EA0000

5157529EA0000
Not available
36
DISCONTINUE
PROTECTOR SET, OUTER TUBE RH (GRAY)

51500-36E30-1KY   5150036E301KY

5150036E301KY
Not available
37
WASHER

09169-06054-000  

09169-06053-000
 0916906054000

Unit Price

38
BOLT

01547-06123-000  

01547-0612B-000
 0154706123000

Unit Price

99x
DAMPER ASSY, FRONT FORK RH

51103-29EC0-000   5110329EC0000

5110329EC0000
Not available
99x
DAMPER ASSY, FRONT FORK LH

51104-29EC0-000   5110429EC0000

5110429EC0000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 250 RMX 1997
