CYLINDER FOR SUZUKI TS-ER 250 1992

CRANKCASE

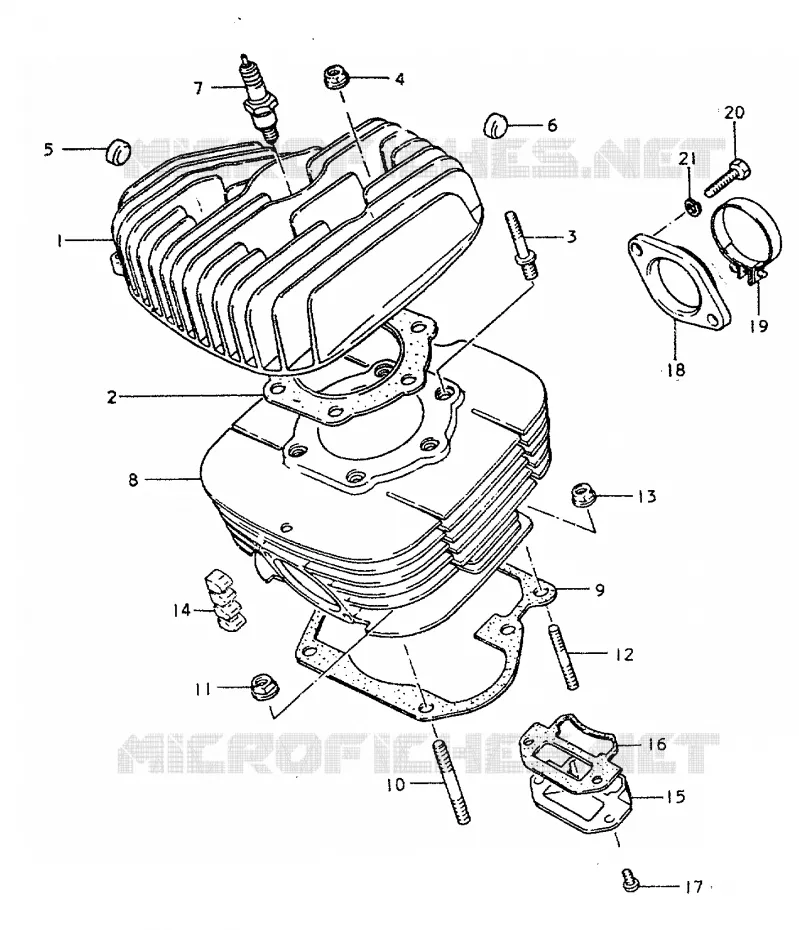

CYLINDER Suzuki MOTO 250 TS-ER 1992 TS250ERN
1
CYLINDER HEAD

11111-30503-000   1111130503000

1111130503000
Not available
2
DISCONTINUE
GASKET

11141-30900-000   1114130900000

1114130900000
Not available
3
CYLINDER STUD BOLT
STUD BOLT

09108-08018-000   0910808018000

0910808018000

Unit Price

4
NUT

08316-16088-000  

08316-10087-000
 0831616088000

Unit Price

5
PAD, CYLINDER RUBBER(N1)

11252-28000-000  

11252-13630-000
 1125228000000

Unit Price

6
RUBBER PAD, NO.2

11252-38001-000   1125238001000

1125238001000
Not available
7
09482-00139-CDN
SPARK PLUG (NGK, BP7ES)

09482-00139-000   0948200139000

0948200139000
Not available
7
SPARK PLUG (NO, W22EP)

09482-00140-000   0948200140000

0948200140000
Not available
8
CYLINDER

11210-30900-000   1121030900000

1121030900000
Not available
9
DISCONTINUE

11241-41100-000  

1124141100000
Not available
10
01421-1025B
STUD BOLT

01421-10258-000  

0142110258000
Not available
11
NUT

08316-16108-000  

08316-1010B-000
 0831616108000

Unit Price

12
BOLT, STUD

01421-08258-000  

01421-0825A-000
 0142108258000

Unit Price

13
NUT

08316-16088-000  

08316-10087-000
 0831616088000

Unit Price

14
DISCONTINUED

11251-30500-000   1125130500000

1125130500000
Not available
15
VALVE ASSY, REED
REED VALVE ASSY

13150-41113-000   1315041113000

1315041113000

Unit Price

16
GASKET, REED VALVE

13156-41100-000  

13156-41100-H17
 1315641100000

Unit Price

17
SCREW

02112-06208-000  

02112-06207-000
 0211206208000

Unit Price

18
DISCONTINUE
PIPE, INTAKE

13110-30900-000  

1311030900000
Not available
19
CLAMP

09402-48306-000   0940248306000

0940248306000
Not available
20
BOLT, FENDER REAR

01107-06168-000   0110706168000

0110706168000
Not available
21
LOCK WASHER

08321-21068-000   0832121068000

0832121068000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
