Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

OIL PUMP

CLUTCH FOR SUZUKI TS-ER 250 1996

TRANSMISSION * DRIVE CHAIN LINKS.

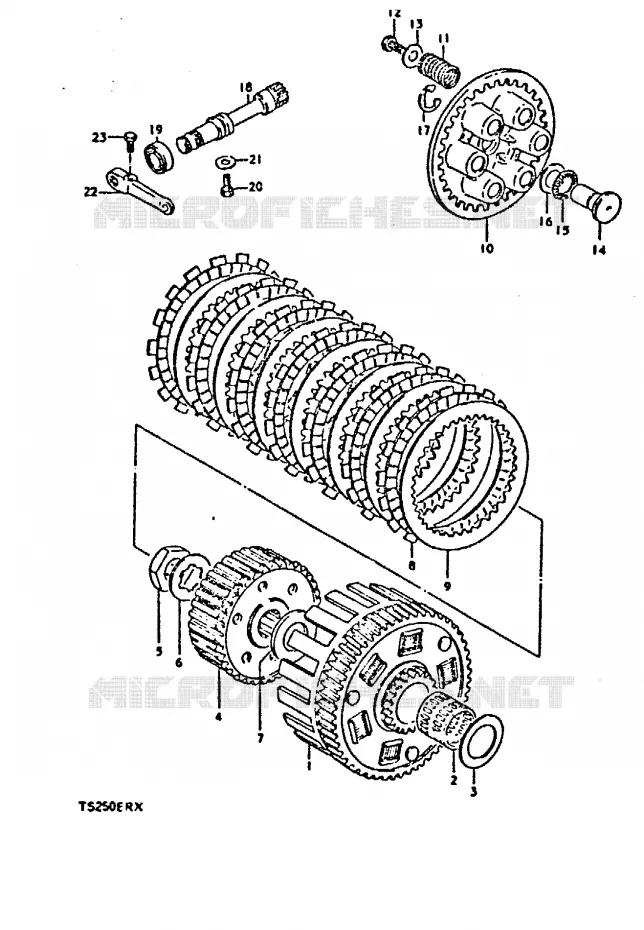

CLUTCH Suzuki MOTO 250 TS-ER 1996 TS250ERT(T/X)
1
GEAR, PRIMARY DRIVEN

21200-30003-000   2120030003000

2120030003000
Not available
2
DISCONTINUED

09263-25014-000   0926325014000

0926325014000
Not available
3
WASHER 25X41X3<br />WASHER
WASHER 25X41X3
WASHER

09160-25009-000   0916025009000

0916025009000

Unit Price

4
HUB, SLEEVE

21411-30001-000   2141130001000

2141130001000
Not available
5
DRIVE SPROCKET NUT

09140-20002-000  

09140-20001-000
 0914020002000

Unit Price

6
WASHER
WASHER

09167-20006-000   0916720006000

0916720006000

Unit Price

7
WASHER(20X44X3)
WASHER

09160-20015-000   0916020015000

0916020015000

Unit Price

8
PLATE, CLUTCH DRIVE(T:3.5)

21441-16500-000  

21442-37401-000
 2144116500000

Unit Price

9
PLATE,CLUTCH DRIVEN(T:2.0)<br />PLATE, DRIVEN
PLATE, CLUTCH DRIVEN(T:2.0)
PLATE, DRIVEN

21451-31000-000   2145131000000

2145131000000

Unit Price

10
PLATE, PRESSURE

21462-16500-000   2146216500000

2146216500000
Not available
11
CLUTCH SPRING<br />SPRING
CLUTCH SPRING
SPRING

09440-19004-000   0944019004000

0944019004000

Unit Price

12
BOLT

01107-09168-000   0110709168000

0110709168000
Not available
13
WASHER

00160-06020-000   0016006020000

0016006020000
Not available
14
DISCONTINUED

23165-16501-000   2316516501000

2316516501000
Not available
15
BEARING(15X28X2)<br />BEARING
BEARING(15X28X2)
BEARING

09263-15003-000   0926315003000

0926315003000

Unit Price

16
WASHER

09160-15015-000  

09160-15045-000
 0916015015000

Unit Price

17
E RING

08332-11128-000  

08332-1112A-000
 0833211128000

Unit Price

18
DISCONTINUED

23261-16500-000   2326116500000

2326116500000
Not available
19
09285-12006<br />OIL SEAL
09285-12006
OIL SEAL

09285-12002-000  

0928512002000
Not available
20
DRIVEN GEAR BOLT<br />BOLT
DRIVEN GEAR BOLT
BOLT

09135-06009-000   0913506009000

0913506009000

Unit Price

21
WASHER

08322-21068-000   0832221068000

0832221068000
Not available
22
DISCONTINUE

23271-30500-000  

2327130500000
Not available
23
BOLT, ADJUSTER

01107-06208-000   0110706208000

0110706208000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 250 TS-ER 1996

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 250 TS-ER 1996

Choose your Suzuki 250 1996 TS-ER model

250 TS-ER 1996 TS250ERT(T/X)

Suzuki TS-ER

Displacement: 250 cc
Year: 1996
Model code TS250ERT(T / X)
