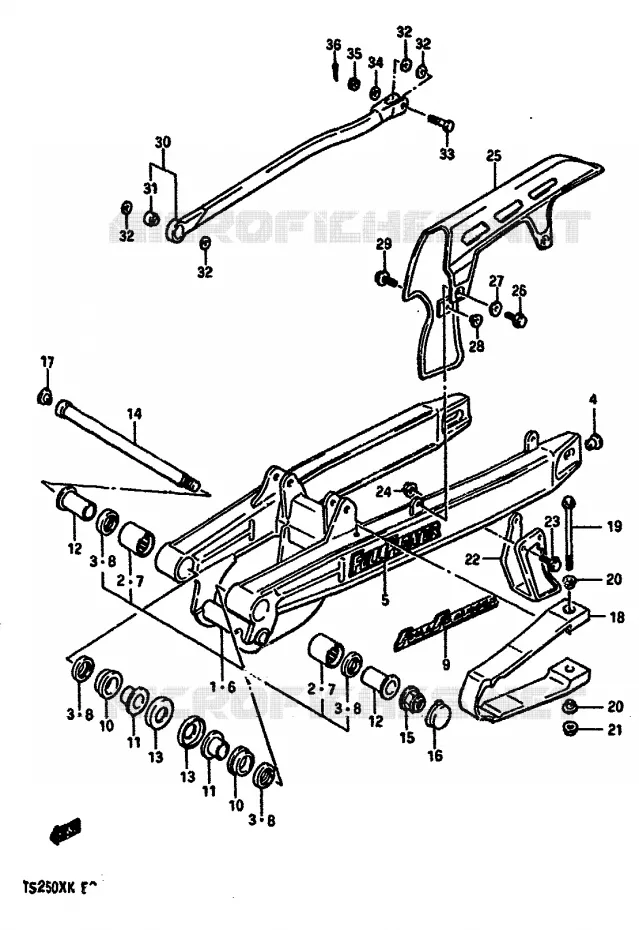

SWINGARM FOR SUZUKI TS-X 250 1986

SWINGARM (E15,E16,E17,E18,E22,E24)

SWINGING ARM ASSY, REAR

61000-13A02-000 6100013A02000

Not available

BEARING SWING ARM
BEARING (20X27X20)

09263-20041-000 0926320041000

$30,97

Unit Price

KK SHAFT OIL SEAL

09285-20005-000

09283-20031-000

$8,97

Unit Price

SUPPORT

61433-33400-000 6143333400000

Not available

EMBLEM

68381-20920-97J 683812092097J

Not available

SWINGING ARM ASSY, REAR

61000-13A31-000 6100013A31000

Not available

BEARING SWING ARM
BEARING

09263-20041-000 0926320041000

$30,97

Unit Price

KK SHAFT OIL SEAL

09285-20005-000

09283-20031-000

$8,97

Unit Price

.EMBLEM

68381-03410-97J 683810341097J

Not available

DISCONTINUE

61261-40402-000

Not available

DISCONTINUE
SPACER

61252-14100-000 6125214100000

Not available

DISCONTINUE
SPACER

61251-14100-000 6125114100000

Not available

SEAL, DUST

61262-40400-000

61262-40401-000

$12,97

Unit Price

SHAFT

61211-13A00-000 6121113A00000

Not available

NUT

08319-31148-000

08319-3114A-000

$15,97

Unit Price

DISCONTINUE
CAP, PIVOT (BLACK)

61222-13A00-019 6122213A00019

Not available

DISCONTINUE
CAP, PIVOT (BLUE)

61222-13A00-19F 6122213A0019F

Not available

CAP, SHAFT (BLACK)

61223-13A00-019 6122313A00019

Not available

CAP, SHAFT (BLUE)

61223-13A00-19F 6122313A0019F

Not available

BUFFER

61273-13A01-000 6127313A01000

Not available

BOLT

09103-05008-000 0910305008000

Not available

WASHER

61274-13A00-000 6127413A00000

Not available

NUT

08319-31058-000 0831931058000

Not available

GUIDE, CHAIN

61341-13A00-000

61341-13A10-000

$35,97

Unit Price

BOLT, EXTENSION

01517-06205-000 0151706205000

Not available

NUT

08319-31065-000

08319-3106A-000

$3,97

Unit Price

CASE, CHAIN

61311-13A01-000 6131113A01000

Not available

BOLT

01517-06105-000

01550-0610B-000

$4,97

Unit Price

LOCK WASHER
WASHER

09169-06026-000 0916906026000

$3,97

Unit Price

WASHER

09169-06042-000 0916906042000

Not available

BOLT, EXTENSION

01517-06205-000 0151706205000

Not available

TORQUE LINK SET

64300-13810-000 6430013810000

Not available

TORQUE LINK SET

64300-13820-000 6430013820000

Not available

DISCONTINUE

64352-14500-000

Not available

DISCONTINUE

64352-40411-000

Not available

SEAL, BEARING DUST

64339-40410-000

64339-40411-000

$14,97

Unit Price

BOLT (8X29.5)

09101-08014-000 0910108014000

Not available

WASHER

08322-11088-000

08322-01087-000

$3,97

Unit Price

NUT

08314-41088-000

08314-4008B-000

$3,97

Unit Price

04111-20208-000

04111-2020A-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki of TS-X. Let us know if you have any questions.
