Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

ANTI POLLUTION SYSTEM

CLUTCH FOR SUZUKI V-STROM 250 2018

TRANSMISSION

Item numbers

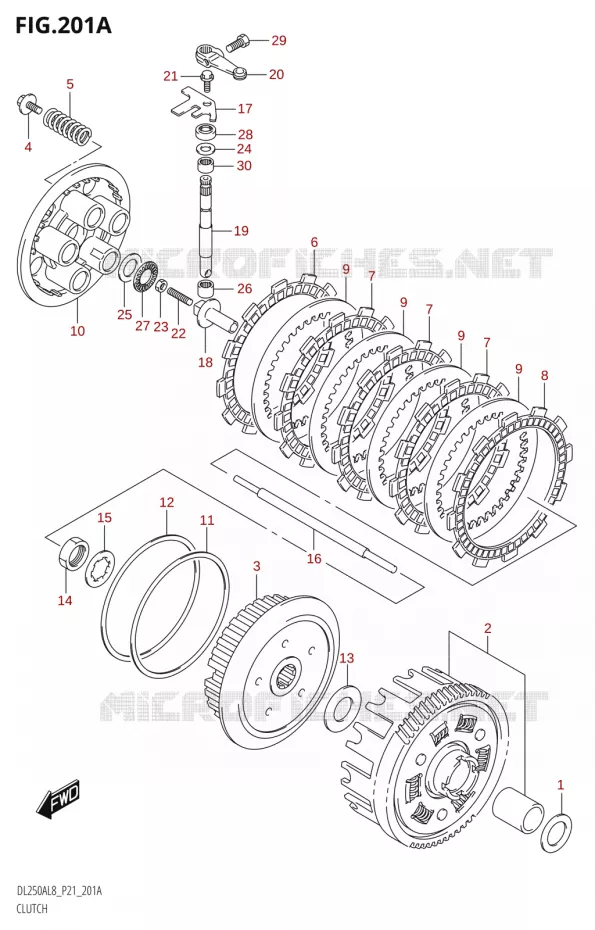

CLUTCH Suzuki MOTO 250 V-STROM 2018 DL250A L8 (P21)
1
2
3
4
5
6
7
7
7
8
9
9
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
WASHER

08211-22363-000   0821122363000

0821122363000

Unit Price

2
GEAR ASSY, PRIMARY DRIVEN
GEAR ASSY, PRIMARY DRIVEN(NT:68)

21200-48880-000   2120048880000

2120048880000

Unit Price

3
HUB, CLUTCH SLEEVE

21411-48H00-000   2141148H00000

2141148H00000

Unit Price

4
BOLT, CLUTCH SPRING

21412-48H00-000   2141248H00000

2141248H00000

Unit Price

5
SPRING, CLUTCH

21413-48H10-000   2141348H10000

2141348H10000

Unit Price

6
PLATE, CLUTCH DRIVE NO.1
PLATE, CLUTCH DRIVE NO.1(T:3.0)

21441-48H00-000   2144148H00000

2144148H00000

Unit Price

7
PLATE, CLUTCH DRIVE NO.2
PLATE, CLUTCH DRIVE NO.2(T:3.0)

21441-48H10-000   2144148H10000

2144148H10000

Unit Price

8
PLATE, CLUTCH DRIVE NO.3
PLATE, CLUTCH DRIVE NO.3(T:3.5)

21442-48H00-000   2144248H00000

2144248H00000

Unit Price

9
PLATE, CLUTCH DRIVEN
PLATE, CLUTCH DRIVEN(T:2.0)

21451-48H00-000   2145148H00000

2145148H00000

Unit Price

10
DISC, CLUTCH PRESSURE

21462-48H00-000   2146248H00000

2146248H00000

Unit Price

11
SEAT, WAVE WASHER

21471-48H00-000   2147148H00000

2147148H00000

Unit Price

12
WASHER, CLUTCH SLEEVE HUB WAVE

21472-48H00-000   2147248H00000

2147248H00000

Unit Price

13
WASHER, THRUST

21252-48H00-000   2125248H00000

2125248H00000

Unit Price

14
NUT
NUT

09140-22005-000   0914022005000

0914022005000

Unit Price

15
WASHER, LOCK
WASHER

09167-22029-000   0916722029000

0916722029000

Unit Price

16
ROD, CLUTCH PUSH

23110-48H00-000   2311048H00000

2311048H00000

Unit Price

17
RETAINER, CL RLSE OIL SEAL

23117-48H00-000   2311748H00000

2311748H00000

Unit Price

18
PIECE, CLUTCH PUSH

23121-48H00-000   2312148H00000

2312148H00000

Unit Price

19
CAMSHAFT, CLUTCH RELEASE

23122-48H10-000   2312248H10000

2312248H10000

Unit Price

20
ARM, CLUTCH RELEASE

23271-48H00-000   2327148H00000

2327148H00000

Unit Price

21
BOLT
BOLT(6X12)

09103-06233-000   0910306233000

0910306233000

Unit Price

22
SCREW(6X25)

09134-06018-000   0913406018000

0913406018000

Unit Price

23
NUT
NUT(6X3.6)

09140-06023-000   0914006023000

0914006023000

Unit Price

24
WASHER(12.5X17X1)

09160-12119-000   0916012119000

0916012119000

Unit Price

25
WASHER<br />WASHER(15.5X28X1)
WASHER
WASHER(15.5X28X1)

09160-15045-000   0916015045000

0916015045000

Unit Price

26
BEARING, CL RLSE
BEARING, CL RLSE(10X14X10)

09263-10023-000   0926310023000

0926310023000

Unit Price

27
BEARING(15X28X2)

09263-15L01-000   0926315L01000

0926315L01000

Unit Price

28
SEAL, OIL(10X17X5)

09285-10L01-000   0928510L01000

0928510L01000

Unit Price

29
BOLT
BOLT

01500-0616A-000   015000616A000

015000616A000

Unit Price

30
BEARING, CL RLSE CAMSHAFT UPR

09263-12028-000  

09263-12029-000
 0926312028000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki V-STROM 250 of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 250 V-STROM 2018

Suzuki 250 V-STROM 2018

Select your Suzuki 2018 model

250 V-STROM 2018 DL250A L8 (P21)

V-STROM 250

Suzuki V-STROM

Displacement: 250 cc
Year: 2018
Model code DL250A L8 (P21)
Color: Pearl Nebular Black (YAY) / Pearl Nebular Black - Solid Dazzling Cool Yellow (BJE) / Metallic Diamond Red (YYW)
