TAIL LIGHT ASSY FOR SUZUKI V-STROM 250 2019

WIRING HARNESS

Item numbers

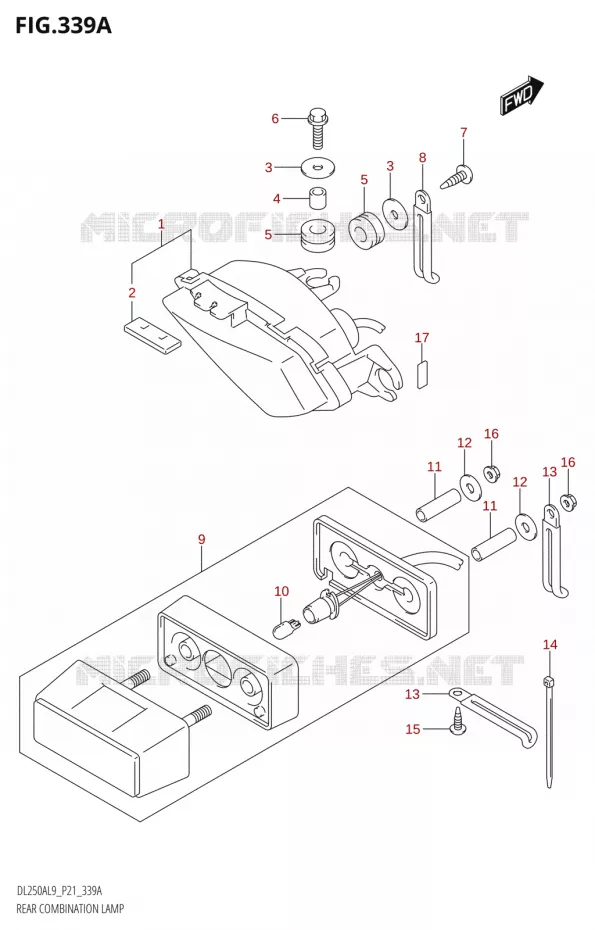

TAIL LIGHT ASSY Suzuki MOTO 250 V-STROM 2019 DL250A L9 (P21)
1
2
3
3
4
5
5
6
7
8
9
10
11
11
12
12
13
13
14
15
16
16
17
1
LAMP ASSY, REAR COMB

35710-20K10-000   3571020K10000

3571020K10000
Not available
2
.COVER

35781-20K00-000   3578120K00000

3578120K00000

Unit Price

3
WASHER<br />WASHER (5.5X20X1.2)
WASHER
WASHER (5.5X20X1.2)

09160-05501-000   0916005501000

0916005501000

Unit Price

4
SPACER<br />SPACER (6.5X10X10)
SPACER
SPACER (6.5X10X10)

09180-06310-000   0918006310000

0918006310000

Unit Price

5
CUSHION, REAR COMB LAMP

09320-10054-000  

09320-10073-000
 0932010054000

Unit Price

6
BOLT

01550-0520A-000   015500520A000

015500520A000

Unit Price

7
SCREW
SCREW

03541-0516A-000   035410516A000

035410516A000

Unit Price

8
CLAMP(L:65)

09404-06206-000  

09404-06432-000
 0940406206000

Unit Price

9
LAMP ASSY, LICENSE

35910-48H01-000   3591048H01000

3591048H01000
Not available
10
BULB 12V1.7W,T6.5<br />.BULB (12V5W)
BULB 12V1.7W, T6.5
.BULB (12V5W)

09471-12216-000  

0947112216000
Not available
11
SPACER, LICENSE LAMP

35996-48H00-000   3599648H00000

3599648H00000
Not available
12
WASHER 6.5X10X1.2<br />WASHER (6.5X20X1.2)
WASHER 6.5X10X1.2
WASHER (6.5X20X1.2)

09160-06077-000   0916006077000

0916006077000

Unit Price

13
CLAMP(L:65)

09404-06206-000  

09404-06432-000
 0940406206000

Unit Price

14
CLAMP

09407-20405-000  

09407-25402-000
 0940720405000

Unit Price

15
SCREW
SCREW

03541-0516A-000   035410516A000

035410516A000

Unit Price

16
NUT

08316-1006A-000   083161006A000

083161006A000

Unit Price

17
CUSHION, RR FENDER FR NO.2
CUSHION, REAR FENDER FRONT NO.2

63117-20K00-000   6311720K00000

6311720K00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT ASSY of your Suzuki V-STROM 250 of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 250 V-STROM 2019

Suzuki 250 V-STROM 2019

Select your Suzuki 2019 model

250 V-STROM 2019 DL250A L9 (P21)

V-STROM 250

Suzuki V-STROM

Displacement: 250 cc
Year: 2019
Model code DL250A L9 (P21)
Color: Pearl Nebular Black - Solid Dazzling Cool Yellow (BJE) / Metallic Triton Blue No.2 (QHV) / Pearl Nebular Black (YAY)
