FRAME (MODEL H / J / K) REFER TO FIG.29A(G-3) FOR MODEL L/M/N/P/R/S

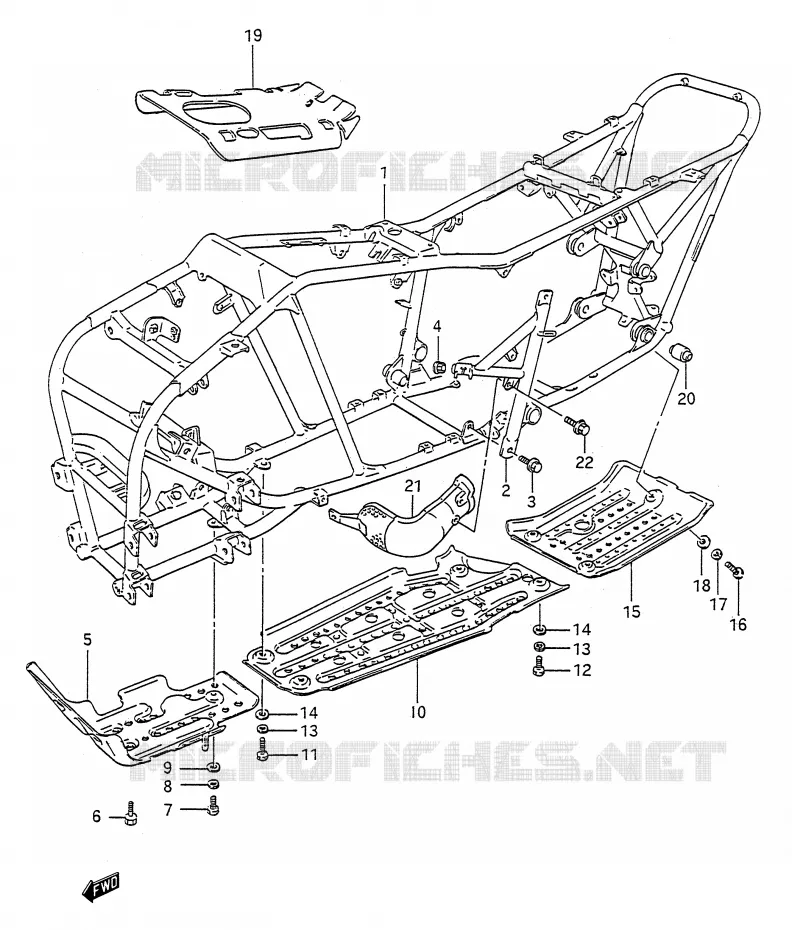

FRAME (MODEL L / M / N / P / R / S) FOR SUZUKI KINGQUAD 250 1988

FOOTREST

Item numbers

41101-39841-019
FRAME SET (BLACK)

41100-39870-019 4110039870019

Not available

FRAME SET (BLACK)

41101-19810-019 4110119810019

Not available

DISCONTINUE

41101-19813-019

Not available

TUBE, ENGINE MOUNT FR

41910-19B20-019

41910-39D00-019

$178,97

Unit Price

BOLT(10X20)
BOLT

09103-10165-000 0910310165000

$6,97

Unit Price

CAP, FR GRIP
CAP

43978-24500-000 4397824500000

$13,97

Unit Price

PROTECTOR, FR

42510-19B11-000

42510-19B12-000

$115,97

Unit Price

BOLT

01107-06126-000

01500-06123-000

$2,97

Unit Price

01580-0612B
BOLT, FRONT

01177-06126-000

Not available

BOLT

01107-06166-000

01107-06163-000

$2,97

Unit Price

BOLT

01177-06166-000

01580-06163-000

$3,97

Unit Price

08321-0106A
.WASHERLOCK6.1X12X1.2

08321-21066-000

Not available

WASHER

08322-21066-000

08322-0106A-000

$2,97

Unit Price

42560-19B03
PROTECTOR, MIDDLE

42560-19B02-000 4256019B02000

Not available

DISCONTINUE

42560-19B20-000

Not available

BOLT

01107-06206-000

01500-06203-000

$2,97

Unit Price

BOLT

01177-06206-000

01580-06203-000

$4,97

Unit Price

BOLT

01107-06166-000

01107-06163-000

$2,97

Unit Price

BOLT

01177-06166-000

01580-06163-000

$3,97

Unit Price

08321-0106A
.WASHERLOCK6.1X12X1.2

08321-21066-000

Not available

WASHER

08322-21066-000

08322-0106A-000

$2,97

Unit Price

PROTECTOR, ENGINE

61390-19B01-000

61390-19B02-000

$151,97

Unit Price

PROTECTOR, ENGINE

61390-19B00-000 6139019B00000

Not available

BOLT

01107-06166-000

01107-06163-000

$2,97

Unit Price

BOLT

01177-06166-000

01580-06163-000

$3,97

Unit Price

08321-0106A
.WASHERLOCK6.1X12X1.2

08321-21066-000

Not available

WASHER

08322-21066-000

08322-0106A-000

$2,97

Unit Price

DISCONTINUE

47157-19B10-000

Not available

BUSH.ENGINE MOUNTING
BUSH

09319-10064-000 0931910064000

$31,97

Unit Price

COVER, MUD

42570-39D00-000 4257039D00000

$294,97

Unit Price

BOLT

01517-06105-000

01550-0610B-000

$3,97

Unit Price

01580-0612B
BOLT

01580-06123-000

Not available
