CRANKCASE COVER

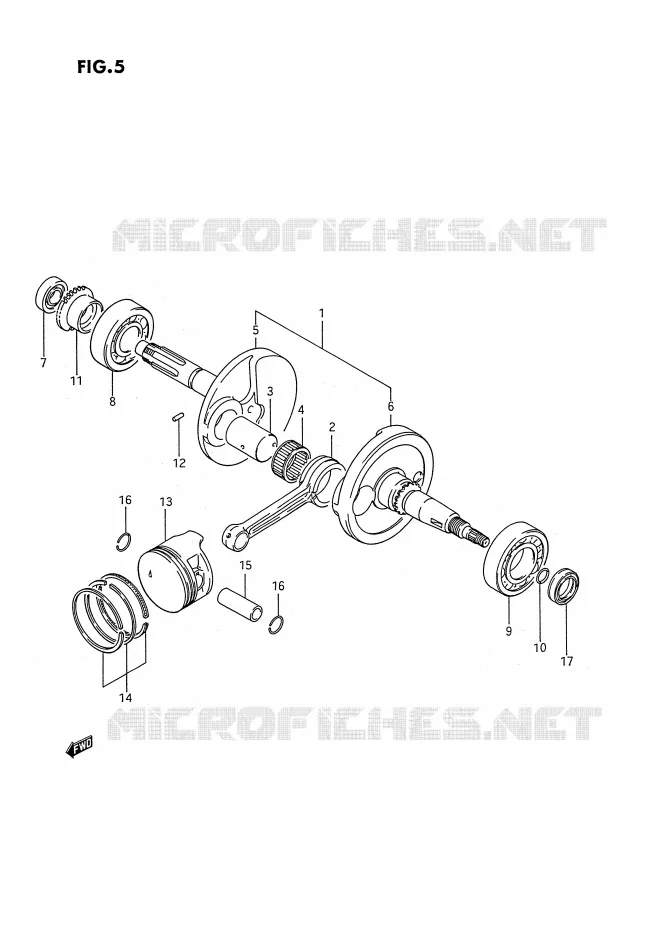

CRANKSHAFT FOR SUZUKI KINGQUAD 250 1993

STARTER MOTOR CLUTCH

DISCONTINUE
CRANKSHAFT ASSY

12200-19B01-000 1220019B01000

Not available

DISCONTINUE

12200-19B10-000

Not available

CONNECTING ROD

12161-19B02-000

12161-19B03-000

$157,97

Unit Price

PIN, CRANK

12210-22A02-000

12210-22A03-000

$67,97

Unit Price

BEARING

09263-30033-0B0 09263300330B0

$109,97

Unit Price

DISCONTINUE
BEARING

09263-30028-0B0 09263300280B0

Not available

CRANKSHAFT, RH

12220-19B00-000 1222019B00000

Not available

CRANKSHAFT, RH

12220-19B10-000 1222019B10000

Not available

DISCONTINUE

12220-19B20-000

Not available

CRANKSHAFT, LH

12261-19B00-000 1226119B00000

Not available

DISCONTINUE

12261-19B20-000

Not available

BEARING(15X35X11)
BEARING, RH (15X35X11)

09262-15014-000 0926215014000

$31,97

Unit Price

BALL BEARING
BEARING, MDL (28X68X18)

09262-28014-000 0926228014000

$82,97

Unit Price

BEARING 35X72X17
BEARING, LH (35X72X17)

09262-35038-000 0926235038000

$68,97

Unit Price

O RING(D:1.9, ID:12.6)
O RING

09280-12009-000 0928012009000

$4,97

Unit Price

GEAR, OIL PUMP DRIVE
GEAR, OIL PUMP DRIVE (NT:30)

16321-19B00-000 1632119B00000

$74,97

Unit Price

GEAR, OIL PUMP DRIVE (NT:30)

16321-18A00-000 1632118A00000

Not available

04221-04089-000 0422104089000

$1,97

Unit Price

ROLLER

06211-03052-000

04221-03059-000

$2,97

Unit Price

PISTON (66.00MM)
PISTON

12111-19B01-000 1211119B01000

$146,97

Unit Price

PISTON SET(OS:1.0)

12111-19B01-100

12100-19B00-100

$237,97

Unit Price

DISCONTINUE

12111-19B01-050

Not available

RING SET, PISTON

12140-19B10-000 1214019B10000

$110,97

Unit Price

RING SET, PISTON(OS:0.50)
RING SET, PISTON (OS:0.5)

12140-19B10-050 1214019B10050

$123,97

Unit Price

RING SET, PISTON (OS:1.0)

12140-19B10-100 1214019B10100

$95,97

Unit Price

PIN, PISTON

12151-22A02-000 1215122A02000

$18,97

Unit Price

CIRCLIP

09381-16004-000 0938116004000

$6,97

Unit Price

SEAL, OIL CRANKSHAFT
OIL SEAL (22X35X7)

09289-22008-000 0928922008000

$51,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of KINGQUAD. Let us know if you have any questions.
