STARTER MOTOR CLUTCH

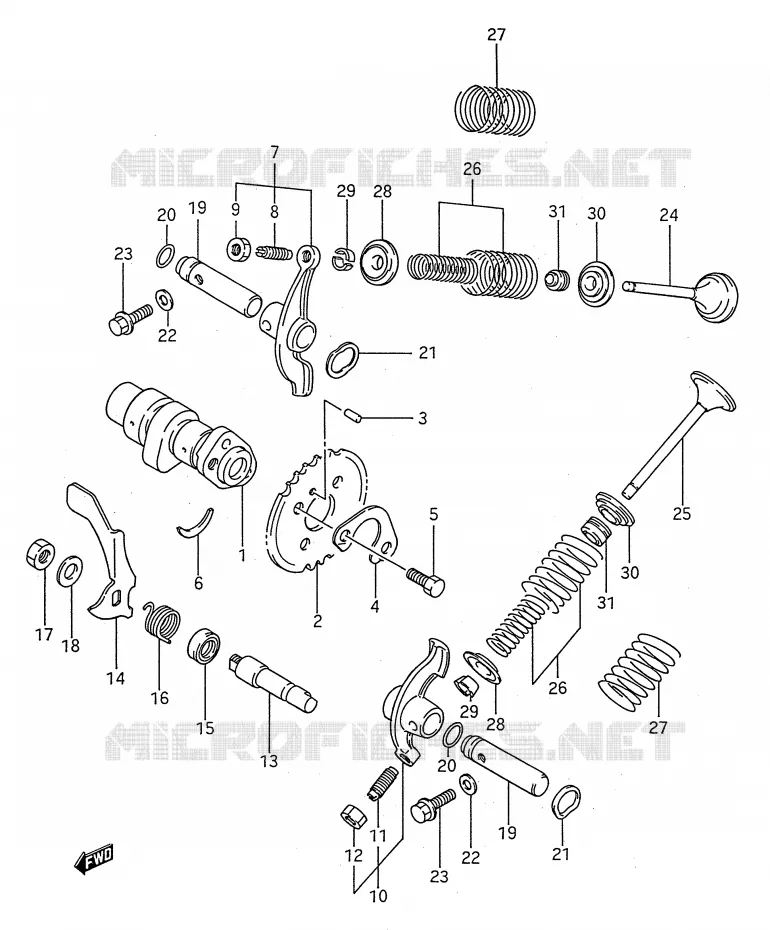

CAM SHAFT - VALVE FOR SUZUKI KINGQUAD 250 1993

TIMING

Item numbers

CAM SHAFT

12711-18A00-000 1271118A00000

$216,97

Unit Price

DISCONTINUE
CAM SHAFT

12711-22A00-000 1271122A00000

Not available

SPROCKET, CAMSHAFT
SPROCKET (NT:32)

12741-05201-000 1274105201000

$21,97

Unit Price

KNOCK PIN, SPROCKET
PIN

09261-05005-000 0926105005000

$2,97

Unit Price

WASHER, SPROCKET

12747-05201-000

12747-05202-000

$3,97

Unit Price

BOLT, SPROCKET
BOLT

09111-06032-000 0911106032000

$3,97

Unit Price

C-RING, CAM SHAFT
C RING

09390-22002-000 0939022002000

$3,97

Unit Price

ARM ASSY, VALVE ROCKER

12840-05200-000

12850-25C00-000

$38,97

Unit Price

SCREW, TAPPET ADJUSTING
SCREW

12842-32411-000 1284232411000

$7,97

Unit Price

NUT, ADJUSTING SCREW
NUT

12843-32400-000 1284332400000

$4,97

Unit Price

ARM ASSY, VALVE ROCKER

12850-24400-000

12850-25C00-000

$38,97

Unit Price

SCREW, TAPPET ADJUSTING
SCREW

12842-32411-000 1284232411000

$7,97

Unit Price

NUT, ADJUSTING SCREW
NUT

12843-32400-000 1284332400000

$4,97

Unit Price

SHAFT, DECOMP

12941-19B00-000 1294119B00000

$37,97

Unit Price

LEVER, DECOMP SHAFT

12942-19B00-000

12942-19B01-000

$9,97

Unit Price

SEAL, OIL
OIL SEAL (10X17X6)

09282-10014-000 0928210014000

$10,97

Unit Price

SPRING DECOMP LEVER
SPRING

09448-17014-000 0944817014000

$21,97

Unit Price

NUT

08310-22085-000

09140-08021-000

$4,97

Unit Price

NUT

08316-10083-000

08316-1008B-000

$4,97

Unit Price

08322-0108A
WASHER, FRONT

08322-11084-000

Not available

SHAFT, VALVE ROCKET
SHAFT, ROCKER ARM

12861-05201-000 1286105201000

$19,97

Unit Price

O RING, ROCKER SHAFT
O RING

09280-09005-000 0928009005000

$5,97

Unit Price

WASHER, WAVE
WASHER

09164-12021-000 0916412021000

$3,97

Unit Price

GASKET

09168-06023-000 0916806023000

Not available

BOLT

01517-06254-000

01550-0625B-000

$3,97

Unit Price

BOLT

01550-06253-000

01550-0625A-000

$3,97

Unit Price

VALVE, INTAKE

12911-19B00-000 1291119B00000

$35,97

Unit Price

VALVE, EXHAUST

12912-18A00-000 1291218A00000

$80,97

Unit Price

SPRING SET, VALVE

12920-05210-000 1292005210000

$20,97

Unit Price

SPRING, VALVE

12921-19B00-000 1292119B00000

$16,97

Unit Price

RETAINER, VALVE SPRING

12931-19B00-000

12931-19B01-000

$18,97

Unit Price

RETAINER, VALVE SPRING

12931-49200-000

12931-49201-000

$10,97

Unit Price

COTTER, VALVE

12932-24400-000 1293224400000

$2,97

Unit Price

SEAT, VALVE SPRING
SEAT, SPRING

12933-19B00-000 1293319B00000

$9,97

Unit Price

SEAT, VALVE SPRING
SEAT, SPRING

12933-49201-000 1293349201000

$8,97

Unit Price

SEAL, OIL(5.5X11X8.2)
OIL SEAL

09289-05015-000 0928905015000

$8,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAM SHAFT - VALVE of your Suzuki of KINGQUAD. Let us know if you have any questions.
