FRONT WHEEL BRAKE (MODEL H / J / K / L) REFER TO FIG.40A(I-3) FOR MODEL M/N/P/R/S

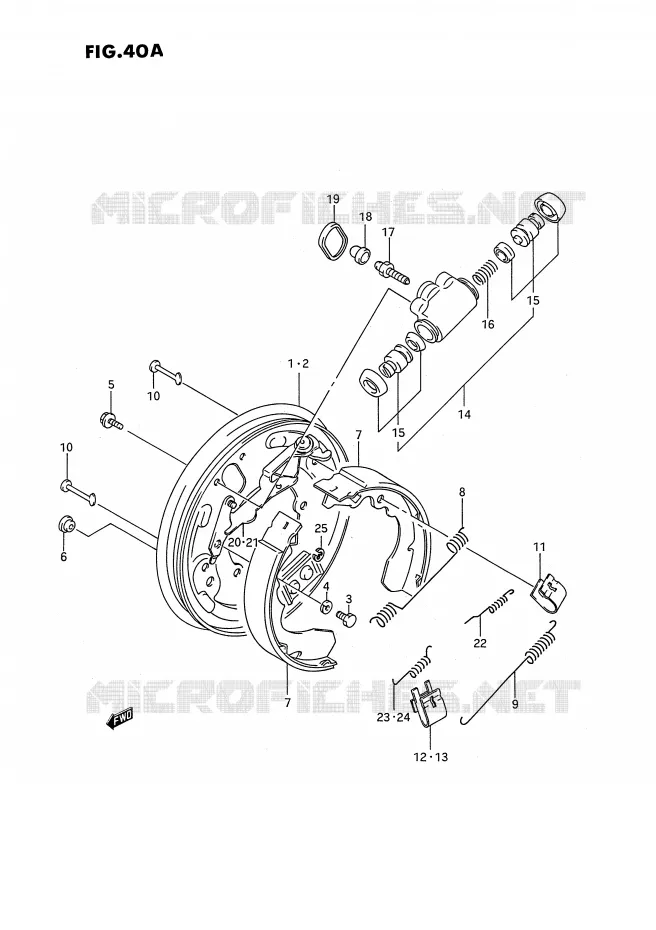

FRONT WHEEL BRAKE (MODEL M / N / P / R / S) FOR SUZUKI KINGQUAD 250 1994

HANDLEBAR - CABLES (MODEL H) REFER TO FIG.41A(I-6) FOR MODEL J/K

Item numbers

DISCONTINUE
PLATE, BACKING RH

54510-19B20-000 5451019B20000

Not available

DISCONTINUE
PLATE, BACKING LH

54810-19B20-000 5481019B20000

Not available

BOLT

01500-08163-000

01500-0816B-000

$4,97

Unit Price

01500-0816B
BOLT M8X1.25X16 LH

01107-08166-000

Not available

WASHER, LOCK

08321-01083-000

08321-0108B-000

$3,97

Unit Price

BOLT

01550-06103-000

01550-0610B-000

$4,97

Unit Price

BOLT, WHEEL CYLINDER

53131-82030-000 5313182030000

Not available

PLUG, BACK PLATE
PLUG, BACKING PLATE

54515-39D00-000 5451539D00000

$4,97

Unit Price

SHOE SET, BRAKE

54410-19B10-000

54400-19830-000

$46,97

Unit Price

SPRING, SHOE RETURN UPR

54531-19B00-000

54531-19B01-000

$10,97

Unit Price

SPRING, SHOE RETURN LWR

54532-19B00-000

54532-19B01-000

$15,97

Unit Price

PIN, SHOE HOLD DOWN

53241-82030-000 5324182030000

$4,97

Unit Price

SPRING, SHOE HOLD DOWN

53243-85010-000 5324385010000

$6,97

Unit Price

SPRING, SHOE HOLD DOWN, L
SPRING, SHOE HOLD DOWN RH

53245-82031-000 5324582031000

$11,97

Unit Price

SPRING, SHOE HOLD DOWN, R
SPRING, SHOE HOLD DOWN LH

53244-82031-000 5324482031000

$11,97

Unit Price

CYLINDER ASSY, RR WHEEL
CYLINDER ASSY, REAR WHEEL

54540-19B10-000 5454019B10000

$125,97

Unit Price

CUP SET, WHEEL CYLINDER

53400-82811-000 5340082811000

$17,97

Unit Price

SPRING, WHEEL CYLINDER

53432-82030-000 5343282030000

$6,97

Unit Price

PLUG, BLEEDER

54542-19B00-000 5454219B00000

$12,97

Unit Price

CAP, BLEEDER PLUG

59122-18410-000

55156-66310-000

$7,97

Unit Price

GASKET, RR WHEEL CYLINDER
GASKET, REAR WHEEL CYLINDER

53417-82030-000 5341782030000

$4,97

Unit Price

DISCONTINUE
STRUT ASSY, BRAKE RH

54550-19B10-000 5455019B10000

Not available

DISCONTINUE
STRUT ASSY, BRAKE LH

54850-19B10-000 5485019B10000

Not available

SPRING, QUADRANT

53714-82030-000

53714-8203V-000

$8,97

Unit Price

SPRING, ANTIRATTLE, L

54524-19B00-000

54524-56B00-000

$7,97

Unit Price

SPRING, ANTIRATTLE, R

54824-19B00-000

54824-56B00-000

$6,97

Unit Price

RING

53753-85010-000

08332-11043-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT WHEEL BRAKE (MODEL M/N/P/R/S) of your Suzuki of KINGQUAD. Let us know if you have any questions.
