OIL PUMP - FUEL PUMP

CLUTCH FOR SUZUKI KINGQUAD 250 1994

TRANSMISSION (1)

Item numbers

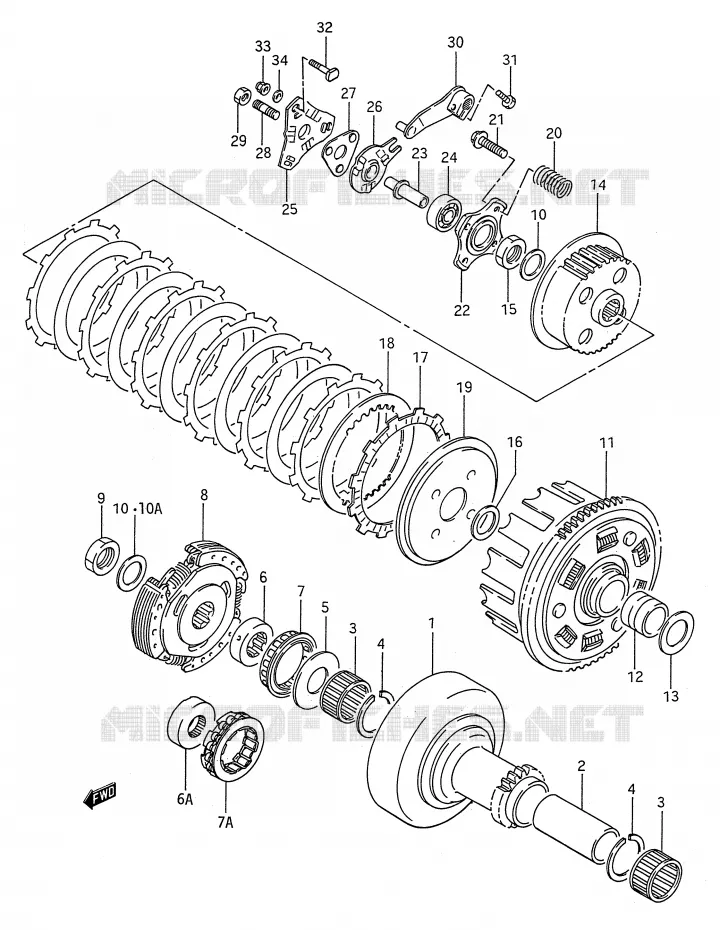

CLUTCH Suzuki QUAD 250 KINGQUAD 1994 LT-F4WDR(E28)
1
1
2
3
3
4
4
5
6
6A
7
7A
8
8
8
9
9
10A
10
10
10
10
11
11
12
13
14
15
16
17
17
17
18
18
19
20
21
21
22
23
24
25
25
26
26
26
27
27
28
29
29
30
31
31
31
32
33
33
34
1
DISCONTINUE
GEAR, PRIMARY DRIVE (NT:20)

21110-19B00-000   2111019B00000

2111019B00000
Not available
1
DISCONTINUE

21110-19B11-000  

2111019B11000
Not available
2
SPACER

09180-22039-000   0918022039000

0918022039000
Not available
3
DISCONTINUE
BEARING (28X32X16.8)

09263-28023-000   0926328023000

0926328023000
Not available
4
CIRCLIP

09381-33002-000   0938133002000

0938133002000

Unit Price

5
WASHER (22X48X2.5)

09160-22036-000   0916022036000

0916022036000
Not available
6A
RACE, ONE WAY CLUTCH

21631-19B10-000  

21631-19B11-000
 2163119B10000

Unit Price

6
DISCONTINUE
RACE, INNER

21631-18A00-000   2163118A00000

2163118A00000
Not available
7A
CLUTCH ASSY, ONE WAY
CLUTCH, ONE WAY

21273-19B10-000   2127319B10000

2127319B10000

Unit Price

7
DISCONTINUE
CLUTCH, ONE WAY

21273-01401-000   2127301401000

2127301401000
Not available
8
CLUTCH ASSY, SHOE

21500-19B11-000  

21500-19B22-000
 2150019B11000

Unit Price

8
DISCONTINUE

21500-19B00-000  

2150019B00000
Not available
9
NUT

09140-18012-000   0914018012000

0914018012000

Unit Price

9
NUT CLUTCH SHOE
NUT

09140-20013-000   0914020013000

0914020013000

Unit Price

10
WASHER
LOCK WASHER

09164-20007-000   0916420007000

0916420007000

Unit Price

10A
PRI DRIVE GR WAS****
LOCK WASHER

09164-18001-000   0916418001000

0916418001000

Unit Price

11
DISCONTINUE

21200-19B02-000  

2120019B02000
Not available
12
SPACER(22X28X23)
SPACER

09180-22035-000   0918022035000

0918022035000

Unit Price

13
WASHER

08211-22361-000  

09181-22251-000
 0821122361000

Unit Price

14
DISCONTINUE
HUB, CLUTCH

21410-24500-000   2141024500000

2141024500000
Not available
15
DRIVE SPROCKET NUT

09140-20002-000  

09140-20001-000
 0914020002000

Unit Price

16
WASHER

08211-20323-000   0821120323000

0821120323000

Unit Price

17
PLATE, CLUTCH DRIVE
PLATE, DRIVE

21441-22A01-000   2144122A01000

2144122A01000

Unit Price

18
PLATE, DRIVEN(T:1.4)
PLATE, DRIVEN

21451-01B40-000   2145101B40000

2145101B40000

Unit Price

19
DISC, CLUTCH PRESSURE
DISC, PRESSURE

21462-24501-000   2146224501000

2146224501000

Unit Price

20
SPRING

09440-19017-000   0944019017000

0944019017000

Unit Price

21
BOLT

01517-06203-000  

01550-0620B-000
 0151706203000

Unit Price

21
BOLT

01517-06207-000  

01550-06207-000
 0151706207000

Unit Price

22
PLATE, RELEASE

21465-24500-000   2146524500000

2146524500000

Unit Price

23
PIECE, CLUTCH PUSH
PIECE, PUSH

23121-19B00-000   2312119B00000

2312119B00000

Unit Price

24
BALL BEARING<br />BEARING
BALL BEARING
BEARING

09262-12001-000   0926212001000

0926212001000

Unit Price

25
BALL GUIDE, CL RELEASE OUTER

23231-19B00-000  

23231-19B10-000
 2323119B00000

Unit Price

26
BALL GUIDE, CL RELEASE INNER
GUIDE, BALL INNER

23211-24201-000   2321124201000

2321124201000

Unit Price

26
DISCONTINUE

23211-24500-000  

2321124500000
Not available
27
BALL, CLUTCH RELEASE
BALL, RELEASE

23250-24500-000   2325024500000

2325024500000

Unit Price

27
BALL,CLUTCH RELEASE<br />BALL, RELEASE
BALL, CLUTCH RELEASE
BALL, RELEASE

23250-31003-000   2325031003000

2325031003000

Unit Price

28
SCREW, CLUTCH ADJUST
SCREW, ADJUSTER

09134-08009-000   0913408009000

0913408009000

Unit Price

29
NUT

08310-22088-000  

08310-00087-000
 0831022088000

Unit Price

29
NUT

09140-08012-000  

09140-08019-000
 0914008012000

Unit Price

30
ARM, CLUTCH RELEASE
ARM, RELEASE

23220-24500-000   2322024500000

2322024500000

Unit Price

31
BOLT

01107-06207-000  

01500-06207-000
 0110706207000

Unit Price

32
BOLT

09119-06068-000   0911906068000

0911906068000

Unit Price

33
NUT

08313-20063-000  

08313-2006A-000
 0831320063000

Unit Price

34
GASKET<br />SEAL, BOLT
GASKET
SEAL, BOLT

09168-06023-000   0916806023000

0916806023000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 250 KINGQUAD 1994
