TAIL LIGHT

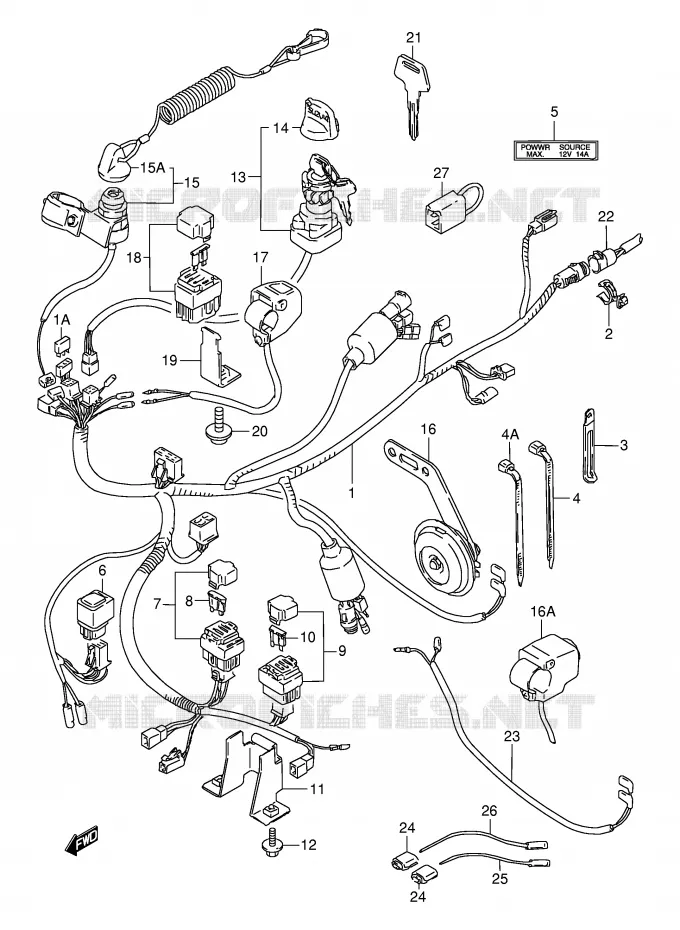

WIRING HARNESS FOR SUZUKI KINGQUAD 250 1998

BACKUP LAMP (OPTIONAL)

Item numbers

DIODE

36611-38A00-000

36611-38A10-000

$20,97

Unit Price

DISCONTINUE
WIRING HARNESS

36610-39DC0-000 3661039DC0000

Not available

WIRING HARNESS

36610-39DD0-000 3661039DD0000

Not available

CLAMP

09403-16307-000 0940316307000

Not available

CLAMP(L:65)

09404-06432-000

09404-06039-000

$3,97

Unit Price

FUEL HOSE CLAMP
CLAMP (L:128)

09407-12402-000 0940712402000

$4,97

Unit Price

CLAMP, WIRING HARNESS

09407-18403-000

09407-18402-000

$3,97

Unit Price

BAND, WIRING HARNESS
CLAMP

09407-14403-000 0940714403000

$3,97

Unit Price

DISCONTINUE
LABEL, POWER SOURCE

38852-19B10-000 3885219B10000

Not available

RELAY, NEUTRAL STARTER
RELAY, NEUTRAL START

38730-19B00-000 3873019B00000

$69,97

Unit Price

BOX ASSY, FUSE
BOX ASSY, MAIN FUSE

36740-24B01-000 3674024B01000

$29,97

Unit Price

FUSE (20A)

09481-20101-000 0948120101000

$2,97

Unit Price

BOX ASSY, FUSE
FUSE CASE ASSY

36740-04701-000 3674004701000

$33,97

Unit Price

FUSE (15A)

09481-15101-000 0948115101000

$2,97

Unit Price

HOLDER, ELECTRIC PARTS FR
HOLDER, ELECTRIC PARTS FRONT

47410-19B00-000 4741019B00000

$15,97

Unit Price

BOLT (6X12)

09118-06103-000 0911806103000

Not available

SWITCH ASSY, IGNITION

37110-19B02-000

37110-19B03-000

$146,97

Unit Price

MASCOT, KEY

37142-19B00-000

37142-19B01-000

$10,97

Unit Price

SWITCH ASSY, EMERGENCY

37820-19B00-000 3782019B00000

Not available

15A

WIRE, EMERGENCY SWITCH

37825-24500-000 3782524500000

Not available

16A

SWITCH ASSY, COOLING FAN

37910-19B10-000 3791019B10000

$70,97

Unit Price

DISCONTINUE

38500-19B02-000

Not available

SWITCH ASSY, HORN

37830-18A00-000

37830-27H00-000

$54,97

Unit Price

DISCONTINUE
BOX ASSY, FAN FUSE

36740-24510-000 3674024510000

Not available

BRACKET, TURN SIGNAL RELAY
BRACKET

38620-04570-000 3862004570000

$7,97

Unit Price

SCREW (6X12)

09118-06103-000 0911806103000

Not available

KEY, BLANK(TYPE:C)
KEY, BLANK TYPE C

37146-19B00-000 3714619B00000

$12,97

Unit Price

KEY, BLANK(TYPE:D)
KEY, BLANK TYPE D

37146-19B10-000 3714619B10000

$12,97

Unit Price

PLUG ASSY, POWER SOURCE

39602-18A00-000 3960218A00000

$50,97

Unit Price

LEAD WIRE, HORN

36852-19B00-000 3685219B00000

Not available

CONNECTOR, LEAD WIRE

36859-36590-000 3685936590000

$10,97

Unit Price

LEAD WIRE, HORH SUITCH (ORANGE)

36851-19B00-000 3685119B00000

Not available

LEAD WIRE, HORN SUITCH

36851-19B10-000 3685119B10000

Not available

LEAD WIRE, EMAGENCY SWITCH

36851-39D00-000 3685139D00000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS of your Suzuki of KINGQUAD. Let us know if you have any questions.
