Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

OIL PUMP - FUEL PUMP

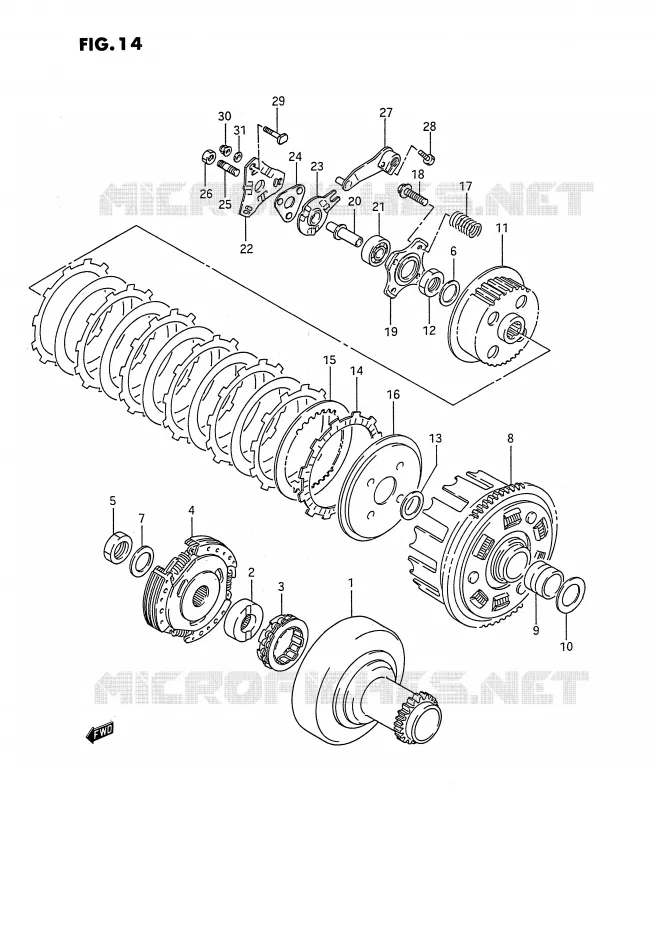

CLUTCH FOR SUZUKI OZARK 250 1990

TRANSMISSION (1)

DISCONTINUE

21110-19B11-000

Not available

RACE, ONE WAY CLUTCH

21631-19B10-000

21631-19B11-000

$44,97

Unit Price

CLUTCH ASSY, ONE WAY
CLUTCH, ONE WAY

21273-19B10-000 2127319B10000

$178,97

Unit Price

CLUTCH ASSY, SHOE

21500-19B21-000

21500-19B22-000

$372,97

Unit Price

NUT

09140-18012-000 0914018012000

$13,97

Unit Price

WASHER
LOCK WASHER (ID:20.1)

09164-20007-000 0916420007000

$6,97

Unit Price

PRI DRIVE GR WAS****
LOCK WASHER (ID:18.3)

09164-18001-000 0916418001000

$5,97

Unit Price

DISCONTINUE
GEAR ASSY, PRIMARY DRIVEN

21200-19B03-000 2120019B03000

Not available

SPACER(22X28X23)
SPACER

09180-22035-000 0918022035000

$30,97

Unit Price

WASHER

08211-22361-000

09181-22251-000

$6,97

Unit Price

DISCONTINUE
HUB, CLUTCH

21410-24500-000 2141024500000

Not available

DRIVE SPROCKET NUT

09140-20002-000

09140-20001-000

$5,97

Unit Price

WASHER

08211-20323-000 0821120323000

$3,97

Unit Price

PLATE, CLUTCH DRIVE
PLATE, DRIVE

21441-22A01-000 2144122A01000

$21,97

Unit Price

PLATE, DRIVEN(T:1.4)
PLATE, DRIVEN

21451-01B40-000 2145101B40000

$12,97

Unit Price

DISC, CLUTCH PRESSURE
DISC, PRESSURE

21462-24501-000 2146224501000

$80,97

Unit Price

SPRING

09440-19017-000 0944019017000

$7,97

Unit Price

BOLT

01517-06207-000

01550-06207-000

$3,97

Unit Price

BOLT

01550-06203-000

01550-0620B-000

$4,97

Unit Price

PLATE, RELEASE

21465-24500-000 2146524500000

$24,97

Unit Price

PIECE, CLUTCH PUSH
PIECE, PUSH

23121-19B00-000 2312119B00000

$25,97

Unit Price

BALL BEARING
BEARING

09262-12001-000 0926212001000

$26,97

Unit Price

BALL GUIDE, CL RELEASE OUTER
GUIDE, BALL OUTER

23231-19B10-000 2323119B10000

$26,97

Unit Price

BALL GUIDE, CL RELEASE INNER
GUIDE, BALL INNER

23211-24201-000 2321124201000

$39,97

Unit Price

BALL, CLUTCH RELEASE
BALL, RELEASE

23250-31003-000 2325031003000

$28,97

Unit Price

SCREW, CLUTCH ADJUST
SCREW, ADJUSTER

09134-08009-000 0913408009000

$6,97

Unit Price

NUT

08310-22088-000

08310-00087-000

$3,97

Unit Price

NUT

09140-08012-000

09140-08019-000

$3,97

Unit Price

ARM, CLUTCH RELEASE
ARM, RELEASE

23220-24500-000 2322024500000

$29,97

Unit Price

BOLT

01500-06207-000 0150006207000

$3,97

Unit Price

BOLT

09119-06068-000 0911906068000

$4,97

Unit Price

NUT

08313-20063-000

08313-2006A-000

$3,97

Unit Price

GASKET
SEAL, BOLT

09168-06023-000 0916806023000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
