Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

REAR FENDER (MODEL J / K / L) REFER TO FIG.37A(G-13) FOR MODEL M/N/P/R/S/T

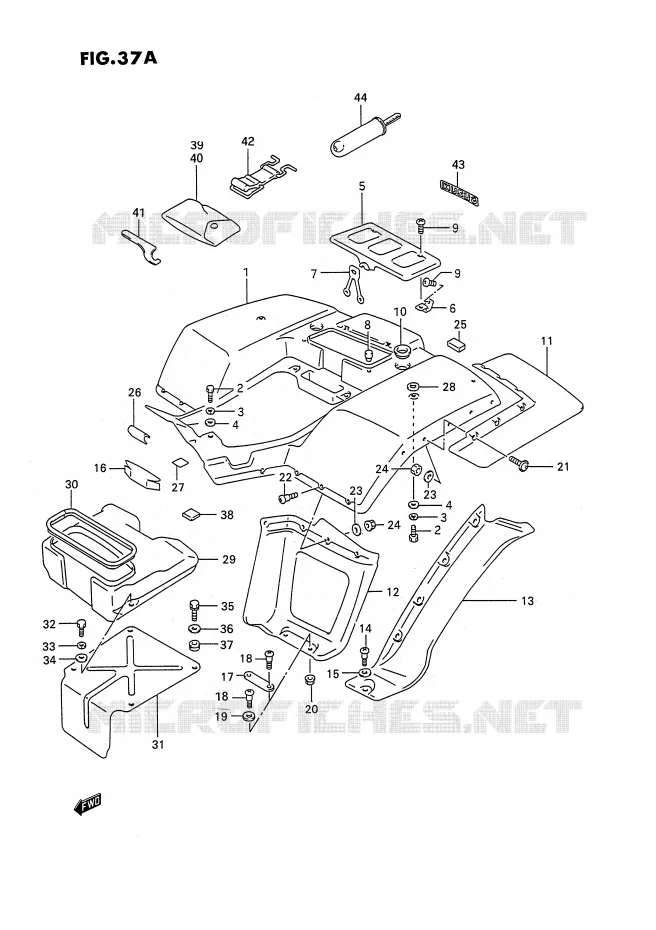

REAR FENDER (MODEL M / N / P / R / S / T) FOR SUZUKI OZARK 250 1995

LABEL

REAR FENDER (MODEL M/N/P/R/S/T) Suzuki QUAD 250 OZARK 1995 LT-F250S(E2)
1
DISCONTINUE
FENDER, REAR (BLUE)

63111-19B10-0VT   6311119B100VT

6311119B100VT
Not available
1
DISCONTINUE
FENDER, REAR (GREEN)

63111-19B10-1AT   6311119B101AT

6311119B101AT
Not available
1
DISCONTINUE

63111-19B10-25G  

6311119B1025G
Not available
2
BOLT

01107-06166-000  

01107-06163-000
 0110706166000

Unit Price

2
BOLT(6X16)
BOLT

09118-06006-000   0911806006000

0911806006000

Unit Price

3
08321-0106A
LOCK WASHER

08321-01063-000  

0832101063000
Not available
4
WASHER, 6.5X24X1.6

09160-06004-000  

09160-06134-000
 0916006004000

Unit Price

5
DISCONTINUE
LID, FENDER

63195-19B00-000   6319519B00000

6319519B00000
Not available
6
DISCONTINUE
HINGE, LID

63270-19B00-000   6327019B00000

6327019B00000
Not available
7
DISCONTINUE
BAND, LID

63196-19B00-000   6319619B00000

6319619B00000
Not available
8
CUSHION,LICENCE PLAT
CUSHION, LICENCE PLAT

09321-06013-000  

09321-06036-000
 0932106013000

Unit Price

9
SCREW

02142-05104-000  

02142-0510A-000
 0214205104000

Unit Price

9
SCREW 5X8
SCREW (5X10)

09125-05073-000   0912505073000

0912505073000

Unit Price

10
GROMMET

09308-25003-000  

09308-25005-000
 0930825003000

Unit Price

11
DISCONTINUE
MUD GUARD, RH

63331-18B10-000   6333118B10000

6333118B10000
Not available
11
DISCONTINUE
MUD GUARD, LH

63341-18B10-000   6334118B10000

6334118B10000
Not available
12
DISCONTINUE
MUD GUARD, FRONT RH

63351-19B10-000   6335119B10000

6335119B10000
Not available
12
DISCONTINUE
MUD GUARD, FRONT LH

63361-19B10-000   6336119B10000

6336119B10000
Not available
13
EXTENSION
EXTENSION, LH

63321-19B00-000   6332119B00000

6332119B00000

Unit Price

13
DISCONTINUE
EXTENSION, RH

63311-19B00-000   6331119B00000

6331119B00000
Not available
14
SCREW

09139-05040-000   0913905040000

0913905040000

Unit Price

15
WASHER, 8.5X20X1.2

09160-08107-000  

09160-08123-000
 0916008107000

Unit Price

16
DISCONTINUE
HEAT SHIELD

63355-19B10-000   6335519B10000

6335519B10000
Not available
17
DISCONTINUE
PLATE, FRONT

63341-19B10-000   6334119B10000

6334119B10000
Not available
18
SCREW

09139-05040-000   0913905040000

0913905040000

Unit Price

19
DISCONTINUE
WASHER

09160-08105-000   0916008105000

0916008105000
Not available
20
NUT

09159-05026-000  

09159-05043-000
 0915905026000

Unit Price

21
SCREW

09136-05038-000   0913605038000

0913605038000

Unit Price

22
SCREW<br />SCREW, FRONT
SCREW
SCREW, FRONT

09139-05038-000   0913905038000

0913905038000

Unit Price

23
WASHER, 5.5X20X1.4

09160-05039-000  

09160-05046-000
 0916005039000

Unit Price

24
NUT

09159-05026-000  

09159-05043-000
 0915905026000

Unit Price

25
DISCONTINUE
CUSHION

63149-19B00-000   6314919B00000

6314919B00000
Not available
26
DISCONTINUE
SHEET

63261-19B00-000   6326119B00000

6326119B00000
Not available
27
DISCONTINUE
SHEET

63262-19B00-000   6326219B00000

6326219B00000
Not available
28
WASHER 6.5X10X1.2

09160-06038-000  

09160-06077-000
 0916006038000

Unit Price

29
DISCONTINUE
BOX, REAR

47431-19B00-000   4743119B00000

4743119B00000
Not available
30
MOLDING, RR BOX
MOLDING (L:1130)

92114-19B00-000   9211419B00000

9211419B00000

Unit Price

31
PLATE, HEAT SHIELD

47432-19B02-000   4743219B02000

4743219B02000

Unit Price

32
BOLT(6X14)
BOLT

09118-06019-000   0911806019000

0911806019000

Unit Price

32
DISCONTINUE<br />BOLT (6X14)
DISCONTINUE
BOLT (6X14)

09100-06067-000   0910006067000

0910006067000
Not available
33
WASHER,LOCK<br />LOCK WASHER
WASHER, LOCK
LOCK WASHER

08321-01067-000   0832101067000

0832101067000

Unit Price

34
WASHER(6.5X18X1.6)

09160-06006-000  

09160-06084-000
 0916006006000

Unit Price

35
BOLT

01570-06163-000  

01570-0616A-000
 0157006163000

Unit Price

35
BOLT
BOLT

01570-06167-000   0157006167000

0157006167000

Unit Price

36
WASHER

09169-06040-000   0916906040000

0916906040000

Unit Price

37
CUSHION
CUSHION

09320-08030-000   0932008030000

0932008030000
Not available
38
CAP(OD:18)

09250-10011-000  

09250-10033-000
 0925010011000

Unit Price

39
TOOL ASSY

09800-00343-000  

09800-21019-000
 0980000343000

Unit Price

40
TOOL ASSY

09800-21019-000  

09800-21075-000
 0980021019000

Unit Price

41
CLAMP WRENCH<br />CLAMP, WENCH
CLAMP WRENCH
CLAMP, WENCH

09822-00004-000   0982200004000

0982200004000

Unit Price

42
DISCONTINUE
BAND

09462-00090-000   0946200090000

0946200090000
Not available
43
DISCONTINUE
EMBLEM, SUZUKI

68111-19B30-7ZP   6811119B307ZP

6811119B307ZP
Not available
44
GAUGE ASSY, AIR PRESSURE

96200-18A01-000  

96200-18A02-000
 9620018A01000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
