OIL PUMP - FUEL PUMP

CLUTCH FOR SUZUKI OZARK 250 2000

TRANSMISSION (1)

Item numbers

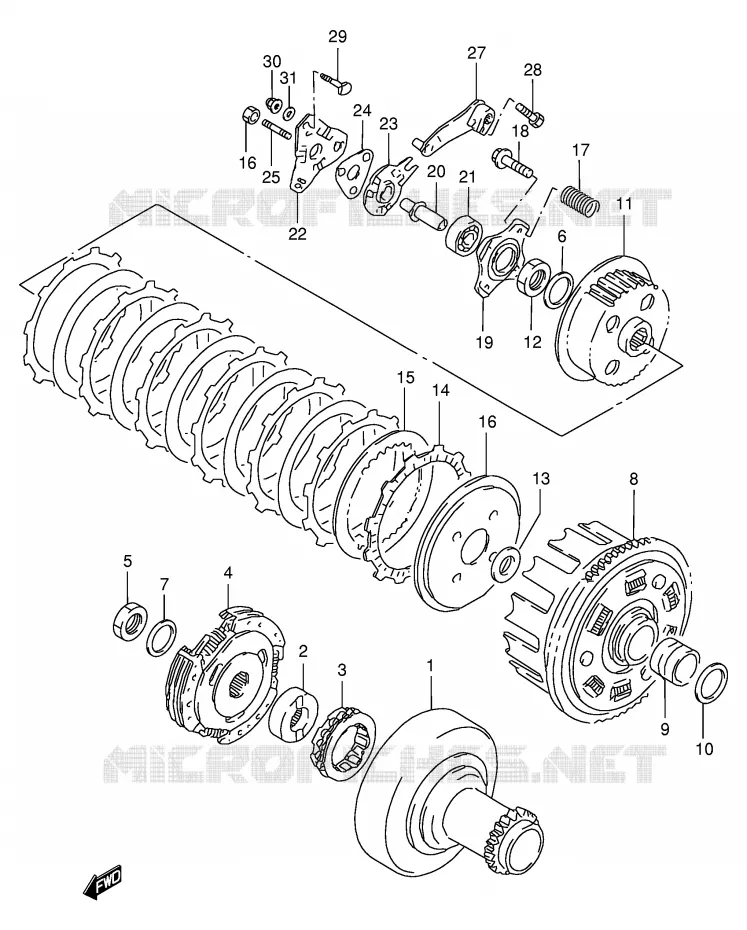

CLUTCH Suzuki QUAD 250 OZARK 2000 LT-F250Y(E24)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
27
28
29
30
31
1
DISCONTINUE
GEAR, PRIMARY DRIVE (NT:20)

21110-19B12-000   2111019B12000

2111019B12000
Not available
2
RACE, ONE WAY CLUTCH
RACE, INNER

21631-19B11-000   2163119B11000

2163119B11000

Unit Price

3
CLUTCH ASSY, ONE WAY
CLUTCH, ONE WAY

21273-19B10-000   2127319B10000

2127319B10000

Unit Price

4
CLUTCH ASSY, SHOE

21500-19B21-000  

21500-19B22-000
 2150019B21000

Unit Price

5
NUT

09140-18012-000   0914018012000

0914018012000

Unit Price

6
WASHER
LOCK WASHER (ID:20.1)

09164-20007-000   0916420007000

0916420007000

Unit Price

7
PRI DRIVE GR WAS****

09164-18007-000  

09164-18001-000
 0916418007000

Unit Price

8
DISCONTINUE
GEAR ASSY, PRIMARY (NT:60)

21200-19B03-000   2120019B03000

2120019B03000
Not available
9
SPACER (22X28X23)

09180-22035-000   0918022035000

0918022035000

Unit Price

10
WASHER<br />WASHER (22X36X1.0)
WASHER
WASHER (22X36X1.0)

09181-22251-000   0918122251000

0918122251000

Unit Price

11
DISCONTINUE
HUB, CLUTCH

21410-24500-000   2141024500000

2141024500000
Not available
12
DRIVE SPROCKET NUT<br />NUT
DRIVE SPROCKET NUT
NUT

09140-20001-000   0914020001000

0914020001000

Unit Price

13
WASHER

08211-20323-000   0821120323000

0821120323000

Unit Price

14
PLATE, CLUTCH DRIVE
PLATE, DRIVE

21441-22A01-000   2144122A01000

2144122A01000

Unit Price

15
PLATE, DRIVEN(T:1.4)
PLATE, DRIVEN

21451-01B40-000   2145101B40000

2145101B40000

Unit Price

16
DISC, CLUTCH PRESSURE
DISC, PRESSURE

21462-24501-000   2146224501000

2146224501000

Unit Price

17
SPRING

09440-19017-000   0944019017000

0944019017000

Unit Price

18
BOLT

01550-06203-000  

01550-0620B-000
 0155006203000

Unit Price

19
PLATE, RELEASE

21465-24500-000   2146524500000

2146524500000

Unit Price

20
PIECE, CLUTCH PUSH
PIECE, PUSH

23121-19B00-000   2312119B00000

2312119B00000

Unit Price

21
BALL BEARING<br />BEARING (12X28X8)
BALL BEARING
BEARING (12X28X8)

09262-12001-000   0926212001000

0926212001000

Unit Price

22
BALL GUIDE, CL RELEASE OUTER
GUIDE, BALL OUTER

23231-19B10-000   2323119B10000

2323119B10000

Unit Price

23
BALL GUIDE, CL RELEASE INNER
GUIDE, BALL INNER

23211-24201-000   2321124201000

2321124201000

Unit Price

24
BALL,CLUTCH RELEASE<br />BALL, RELEASE
BALL, CLUTCH RELEASE
BALL, RELEASE

23250-31003-000   2325031003000

2325031003000

Unit Price

25
SCREW, CLUTCH ADJUST
SCREW, ADJUSTER

09134-08009-000   0913408009000

0913408009000

Unit Price

26
NUT
NUT, ADJUSTER

09140-08019-000   0914008019000

0914008019000

Unit Price

27
ARM, CLUTCH RELEASE
ARM, RELEASE

23220-24500-000   2322024500000

2322024500000

Unit Price

28
BOLT

01500-06203-000  

01500-0620A-000
 0150006203000

Unit Price

29
BOLT
BOLT (6X25)

09119-06068-000   0911906068000

0911906068000

Unit Price

30
NUT

08313-20063-000  

08313-2006A-000
 0831320063000

Unit Price

31
GASKET<br />SEAL, BOLT
GASKET
SEAL, BOLT

09168-06023-000   0916806023000

0916806023000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 250 OZARK 2000
