Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

WIRING HARNESS (MODEL K2 / K3 / K4) REFER TO FIG.27A(E-15) FOR MODEL K5/K6

WIRING HARNESS (MODEL K5 / K6) FOR SUZUKI OZARK 250 2002

* COLOR PICTURE LT-F250K5 *

Item numbers

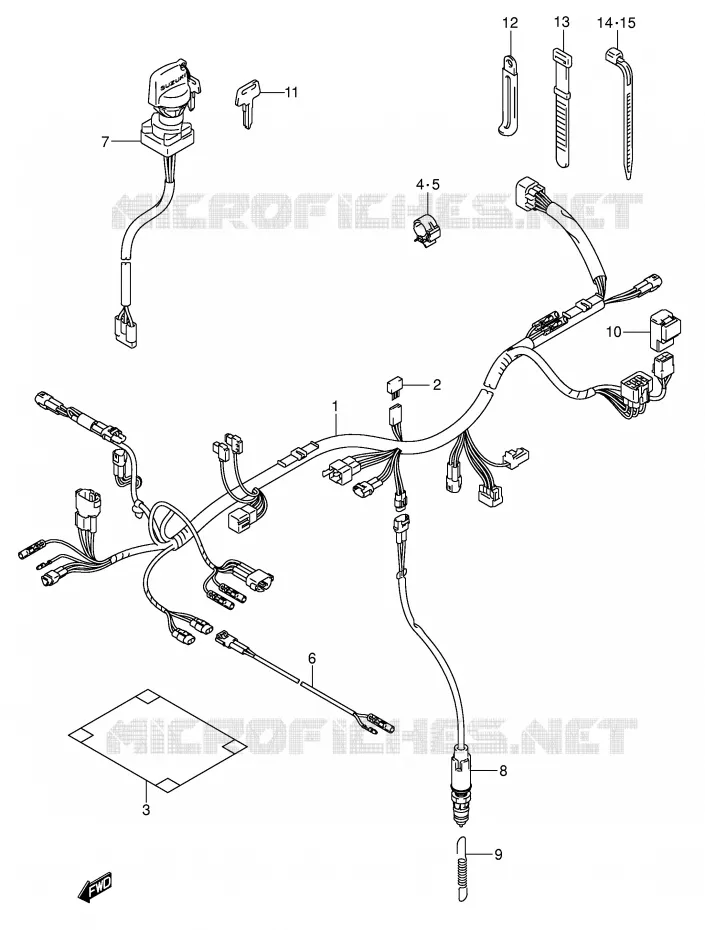

WIRING HARNESS (MODEL K5/K6) Suzuki QUAD 250 OZARK 2002 LT-F250K2(E3/E28)
1
2
3
4
5
6
7
8
9
10
11
11
11
11
12
13
14
15
1
HARNESS, WIRING

36610-05G20-000   3661005G20000

3661005G20000

Unit Price

2
DIODE
DIODE

36611-38A00-000  

36611-38A10-000
 3661138A00000

Unit Price

3
COVER,WIRING HARNESS
COVER, WIRING HARNESS

36618-15D20-000  

36618-15D21-000
 3661815D20000

Unit Price

4
CLAMP
CLAMP (ID:15)

09403-15405-000   0940315405000

0940315405000

Unit Price

5
CLAMP
CLAMP (ID:25)

09403-25401-000   0940325401000

0940325401000

Unit Price

6
WIRE, BRAKE SW LEAD

36856-35B00-000  

36856-35B01-000
 3685635B00000

Unit Price

7
SWITCH ASSY, IGNITION

37110-05G00-000  

37110-05G02-000
 3711005G00000

Unit Price

7A
MASCOT, KEY

37142-19B00-000  

37142-19B01-000
 3714219B00000

Unit Price

8
SWITCH ASSY, STOP LAMP

37740-38F01-000   3774038F01000

3774038F01000

Unit Price

9
BRAKE SWITCH SPRING<br />SPRING, STOP LAMP SWITCH
BRAKE SWITCH SPRING
SPRING, STOP LAMP SWITCH

09443-06012-000   0944306012000

0944306012000

Unit Price

10
RELAY ASSY,SIDE STAND
RELAY ASSY, SIDE STAND

38740-26E00-000  

38740-26E01-000
 3874026E00000

Unit Price

11
KEY, BLANK (TYPE:C)

37146-19B00-000   3714619B00000

3714619B00000

Unit Price

11
KEY, BLANK (TYPE:D)

37146-19B10-000   3714619B10000

3714619B10000

Unit Price

11
KEY, BLANK (TYPE:E)

37146-19B20-000   3714619B20000

3714619B20000

Unit Price

11
KEY, BLANK (TYPE:F)

37146-19B30-000   3714619B30000

3714619B30000

Unit Price

12
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

13
FUEL HOSE CLAMP<br />CLAMP (L:120)
FUEL HOSE CLAMP
CLAMP (L:120)

09407-12402-000   0940712402000

0940712402000

Unit Price

14
BAND,WIRING HARNESS<br />CLAMP (L:125)
BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

15
CLAMP,WIRING HARNESS<br />CLAMP (L:165)
CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000   0940718402000

0940718402000

Unit Price

16
CLAMP

09407-10404-000  

09407-14407-000
 0940710404000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 250 OZARK 2002

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 250 OZARK 2002

Choose your Suzuki 250 2002 OZARK model

250 OZARK 2002 LT-F250K2(E3/E28)
250 OZARK 2002 LT-F250K2(E3/E28)

Suzuki OZARK

Displacement: 250 cc
Year: 2002
Model code LT-F250K2(E3 / E28)
