Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

SWINGARM (MODEL G) REFER TO FIG.58 (I- 4) FOR MODEL H/J/K/L

SWINGARM (MODEL H / J / K / L) FOR SUZUKI QUADRACER 250 1986

SWINGARM (MODEL M / N)

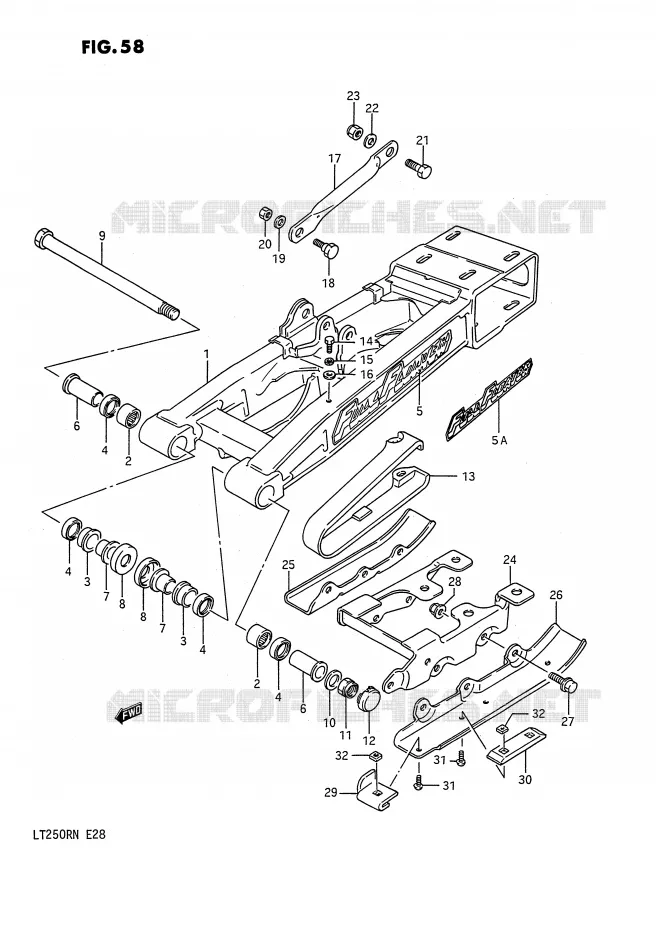

SWINGARM (MODEL H/J/K/L) Suzuki QUAD 250 QUADRACER 1986 LT250RG(E28)
1
DISCONTINUED

61000-01C00-000   6100001C00000

6100001C00000
Not available
1
DISCONTINUE
SWINGING ARM ASSY, REAR

61000-01C11-000   6100001C11000

6100001C11000
Not available
2
BEARING SWING ARM
BEARING

09263-20041-000   0926320041000

0926320041000

Unit Price

3
DISCONTINUE

61261-40402-000  

6126140402000
Not available
4
KK SHAFT OIL SEAL

09285-20005-000  

09283-20031-000
 0928520005000

Unit Price

5
DISCONTINUE

68381-19A10-97J  

6838119A1097J
Not available
5A
EMBLEM

68381-01C00-2SG   6838101C002SG

6838101C002SG
Not available
6
DISCONTINUE
SPACER

61251-19A00-000   6125119A00000

6125119A00000
Not available
7
DISCONTINUE
SPACER, INNER

61252-14100-000   6125214100000

6125214100000
Not available
8
SEAL, DUST

61262-40400-000  

61262-40401-000
 6126240400000

Unit Price

9
DISCONTINUE
SHAFT

61211-19A00-000   6121119A00000

6121119A00000
Not available
10
PIVOT SHAFT WASHER<br />WASHER
PIVOT SHAFT WASHER
WASHER

09160-14009-000   0916014009000

0916014009000

Unit Price

11
NUT 14MM

09159-14013-000  

09159-14019-000
 0915914013000

Unit Price

12
DISCONTINUE
CAP (BLUE)

61222-13A00-19F   6122213A0019F

6122213A0019F
Not available
13
DISCONTINUE
BUFFER

61273-19A01-000   6127319A01000

6127319A01000
Not available
14
BOLT

01107-06127-000  

01500-06127-000
 0110706127000

Unit Price

15
WASHER, LOCK

08321-21067-000  

08321-01067-000
 0832121067000

Unit Price

16
CLUTCH REL WASHER<br />WASHER
CLUTCH REL WASHER
WASHER

09160-06019-000   0916006019000

0916006019000

Unit Price

17
TORQUE LINK, REAR

64311-01C00-000   6431101C00000

6431101C00000
Not available
18
DISCONTINUE
BOLT, FRONT

09111-08061-000   0911108061000

0911108061000
Not available
19
WASHER

08322-11088-000  

08322-01087-000
 0832211088000

Unit Price

20
NUT

08319-21088-000  

08319-2108A-000
 0831921088000

Unit Price

21
BOLT
BOLT, REAR

09100-10230-000   0910010230000

0910010230000

Unit Price

22
WASHER

08322-11107-000  

08322-01107-000
 0832211107000

Unit Price

23
FINAL GEAR CASE NUT<br />NUT
FINAL GEAR CASE NUT
NUT

09159-10027-000   0915910027000

0915910027000

Unit Price

24
STAY, GUARD

61390-01C00-000   6139001C00000

6139001C00000
Not available
25
DISCONTINUE

61391-43B00-000  

6139143B00000
Not available
26
DISCONTINUE
GUARD, SPROCKET

61392-43B00-000   6139243B00000

6139243B00000
Not available
27
BOLT

01517-08207-000  

01550-08207-000
 0151708207000

Unit Price

28
NUT
NUT

08319-31087-000   0831931087000

0831931087000
Not available
29
DISCONTINUE
BUFFER, SPROCKET GUARD

61396-19A13-000   6139619A13000

6139619A13000
Not available
30
DISCONTINUE
BUFFER, SPROCKET GUARD

61397-43B01-000   6139743B01000

6139743B01000
Not available
31
SCREW

02142-05104-000  

02142-0510A-000
 0214205104000

Unit Price

32
NUT

08318-11056-000  

08318-1105A-000
 0831811056000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM (MODEL H/J/K/L) of your Suzuki of QUADRACER. Let us know if you have any questions.

Genuine parts for Suzuki 250 QUADRACER 1986
