CAM SHAFT - VALVE

TIMING FOR SUZUKI QUADRUNNER 250 1987

CARBURETOR (MODEL H / J / K) REFER TO FIG.9A (C-4) FOR MODEL L/M/N/P/R/S

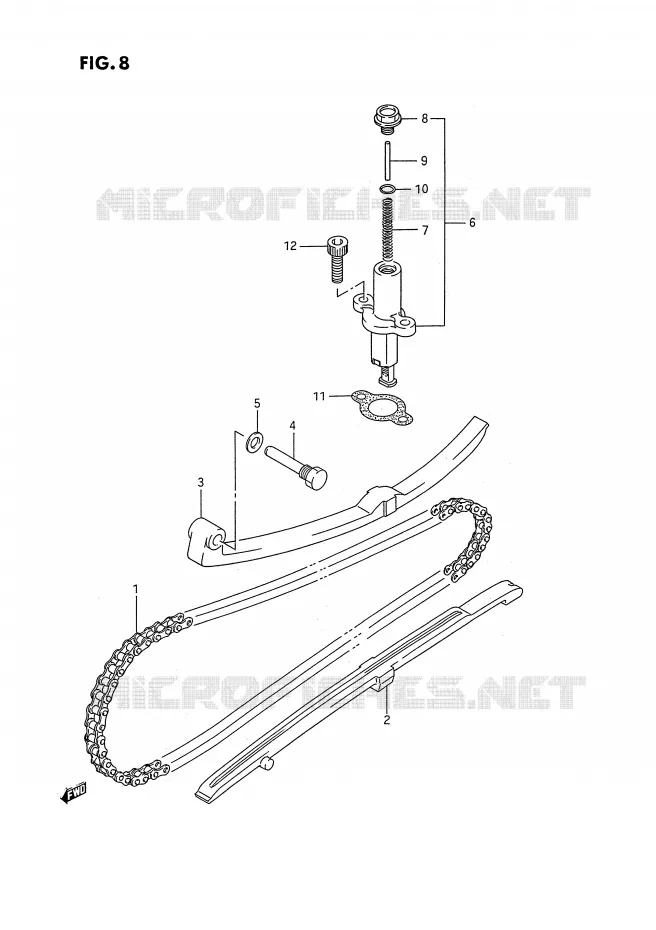

TIMING Suzuki QUAD 250 QUADRUNNER 1987 LT-4WDH(E3)

1

CHAIN, CAMSHAFT DRIVE

12760-19B00-000

12760-19B01-000

$117,97

Unit Price

2

GUIDE, CAM CHAIN

12771-19B00-000

12771-19B02-000

$59,97

Unit Price

3

TENSIONER, CAM CHAIN

12811-19B10-000

12811-19B11-000

$65,97

Unit Price

4

BOLT, CAM CHAIN TENSIONER
BOLT

12812-32410-000 1281232410000

$8,97

Unit Price

5

GASKET, 8.2X14X1

09168-08008-000

09168-08016-000

$2,97

Unit Price

6

ADJUSTER ASSY, TENSIONER

12830-19B01-000

12830-19B02-000

$99,97

Unit Price

7

SPRING

12833-19B00-000 1283319B00000

$4,97

Unit Price

8

PLUG

12834-19B00-000 1283419B00000

$16,97

Unit Price

9

BAR

12835-19B00-000 1283519B00000

$3,97

Unit Price

10

O RING

12832-02A00-000 1283202A00000

$4,97

Unit Price

11

GASKET, TENSIONER ADJUSTER
GASKET, ADJUSTER

12837-19B10-000 1283719B10000

$4,97

Unit Price

12

BOLT

07130-06203-000

07130-0620B-000

$5,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
