DRIVESHAFT (MODEL R / S)

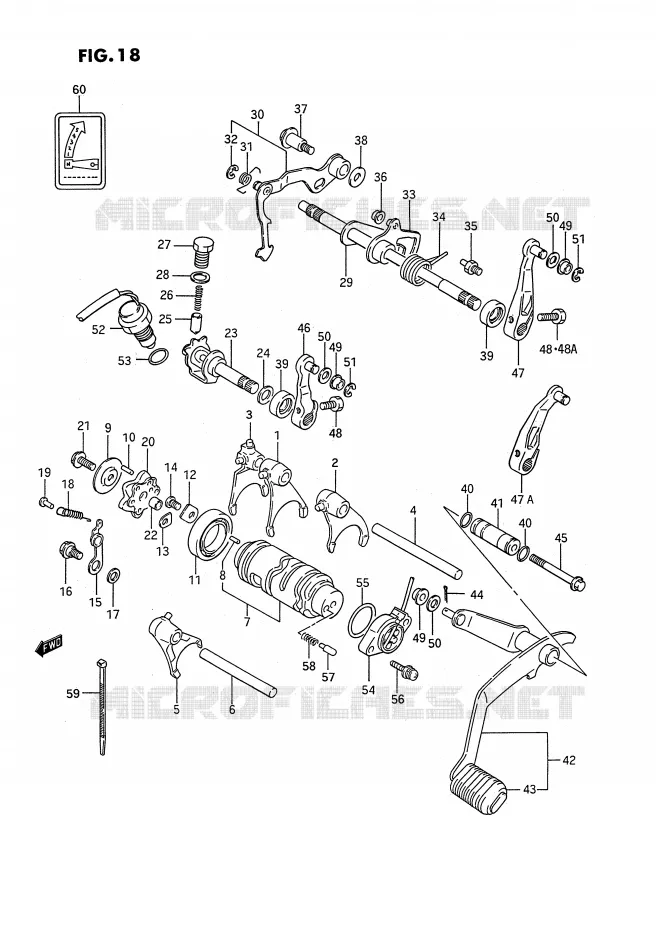

GEAR SHIFTING ASSY FOR SUZUKI QUADRUNNER 250 1993

FRONT FINAL GEAR

FORK GEAR SHIFT NO.1

25211-19B00-000 2521119B00000

$68,97

Unit Price

FORK, GEAR SHIFT NO.2
FORK, GEAR SHIFTING, NO.2

25221-19B00-000 2522119B00000

$68,97

Unit Price

FORK, GEAR SHIFT REVERSE
FORK, GEAR SHIFTING, NO.4

25241-19B00-000 2524119B00000

$90,97

Unit Price

SHAFT, GEAR SHIFT FORK NO.1
SHAFT, NO.1

25411-24501-000 2541124501000

$24,97

Unit Price

FORK, GEAR SHIFT NO.3
FORK, GEAR SHIFTING, NO.3

25231-19B00-000 2523119B00000

$88,97

Unit Price

SHAFT, GEAR SHIFT FORK

25411-14330-000

25411-14331-000

$19,97

Unit Price

CAM, GEAR SHIFT
CAM, GEAR SHIFTING

25310-19B02-000 2531019B02000

$170,97

Unit Price

04221-04089-000 0422104089000

$1,97

Unit Price

RETAINER, SHIFT CAM DR PIN
RETAINER, PIN

25322-19B00-000 2532219B00000

$4,97

Unit Price

ROLLER(4X13.8)
PIN

09261-04002-000 0926104002000

$2,97

Unit Price

BEARING, ROLLER KOYO
BEARING (25X47X8)

09262-25006-000 0926225006000

$39,97

Unit Price

RETAINER, SHIFT CAM BRG NO.1
RETAINER

25341-19B00-000 2534119B00000

$4,97

Unit Price

RETAINER

24741-20A10-000

24741-21A00-000

$4,97

Unit Price

SCREW

02112-06123-000

02112-3612A-000

$3,97

Unit Price

SCREW

02112-06128-000

02112-06127-000

$2,97

Unit Price

DISCONTINUE
STOPPER, CAM

25350-19B00-000 2535019B00000

Not available

BOLT

09111-06019-000

09111-06054-000

$4,97

Unit Price

THRUST WASHER
WASHER

08211-06141-000 0821106141000

$3,97

Unit Price

SPRING

09443-06067-000 0944306067000

$6,97

Unit Price

RIVET
PIN

09223-04001-000 0922304001000

$2,97

Unit Price

DISCONTINUE
PLATE, STOPPER

25381-20A00-000 2538120A00000

Not available

BOLT

01517-06257-000

01550-0625A-000

$2,97

Unit Price

04211-09109-000 0421109109000

$2,97

Unit Price

CAM, REVERSE SHIFT

25320-19B01-000

25320-19B10-000

$51,97

Unit Price

08211-1218A
WASHER

08211-12183-000 0821112183000

Not available

STOPPER, REVERSE CAM

25351-11000-000

25351-11010-000

$14,97

Unit Price

SPRING

09440-05011-000 0944005011000

$35,97

Unit Price

HOUSING, GEAR SHIFT CAM STOPPER
HOLDER, STOPPER

25352-11010-000 2535211010000

$14,97

Unit Price

SPARK PLUG GASKET
GASKET

09168-14004-000 0916814004000

$2,97

Unit Price

GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000 0916814002000

$2,97

Unit Price

SHAFT, GEAR SHIFT
SHAFT, GEAR SHIFTING NO.1

25510-19B00-000 2551019B00000

$106,97

Unit Price

ARM, GEAR SHIFTING NO.2

25520-19B01-000 2552019B01000

$53,97

Unit Price

SPRING

09448-13006-000 0944813006000

$3,97

Unit Price

E RING

08332-11076-000

08332-11073-000

$2,97

Unit Price

ARM, GEAR SHIFT LINK
ARM, LINK

25540-19B01-000 2554019B01000

$32,97

Unit Price

SPRING

09444-26022-000

09444-26025-000

$7,97

Unit Price

STOPPER, GEAR SHIFT ARM

25671-24500-000

25671-24501-000

$6,97

Unit Price

SPACER
ROLLER

09180-07014-000 0918007014000

$6,97

Unit Price

BOLT(8X30.3)
BOLT

09103-08193-000 0910308193000

$11,97

Unit Price

WASHER THRUST
WASHER

08211-08201-000 0821108201000

$3,97

Unit Price

OIL SEAL
OIL SEAL (12X22X9)

09285-12006-000 0928512006000

$10,97

Unit Price

O RING (D:1.5, ID:10)

09280-10012-000 0928010012000

$3,97

Unit Price

COLLAR, GEAR SHIFT LEVER
COLLAR

25661-19B00-000 2566119B00000

$23,97

Unit Price

LEVER ASSY, GEAR SHIFT
LEVER ASSY, GEAR SHIFTING

25600-19B70-000 2560019B70000

$104,97

Unit Price

DISCONTINUE
LEVER ASSY, GEAR SHIFTING

25600-19B03-000 2560019B03000

Not available

RUBBER, GEAR SHIFT PEDAL
COVER

25652-24401-000 2565224401000

$7,97

Unit Price

04111-25158-000

04111-2515A-000

$1,97

Unit Price

BOLT

01517-06555-000

01550-06553-000

$4,97

Unit Price

ARM, REVERSE GEAR SHIFT
ARM

25640-19B00-000 2564019B00000

$71,97

Unit Price

47A

ARM, T/M GEAR SHIFT CABLE
ARM, GEAR SHIFTING CABLE

25630-19B70-000 2563019B70000

$93,97

Unit Price

ARM, GEAR SHIFTING CABLE

25630-19B01-000 2563019B01000

Not available

ARM, GEAR SHIFTING CABLE

25630-19B10-000 2563019B10000

Not available

BOLT

01500-06203-000

01500-0620A-000

$2,97

Unit Price

BOLT

01500-06207-000 0150006207000

$3,97

Unit Price

48A

BOLT

01107-08253-000

01500-0825A-000

$3,97

Unit Price

BUSH

09306-08014-000 0930608014000

$3,97

Unit Price

WASHER

08322-11088-000

08322-01087-000

$2,97

Unit Price

08322-0108A
WASHER

08322-01083-000

Not available

E RING

08332-11063-000

08332-1106B-000

$2,97

Unit Price

.E RING 6MM

08332-11066-000 0833211066000

Not available

SWITCH ASSY, REVERSE

37600-19B02-000

37600-19B03-000

$137,97

Unit Price

O RING
O RING (D:3.2, ID:15.8)

09280-16008-000 0928016008000

$2,97

Unit Price

BASE ASSY, NEUTRAL SW TERMINAL

37720-24501-000

37720-24502-000

$89,97

Unit Price

O RING
O RING (D:2.4, ID:26.2)

09280-26005-000 0928026005000

Not available

SCREW

02112-75203-000

02112-7520A-000

$3,97

Unit Price

SCREW

02112-75208-000

02112-75207-000

$3,97

Unit Price

K S PAWL ROLLER
CONTACT

09209-05011-000 0920905011000

$3,97

Unit Price

K S PAWL SPRING
SPRING

09440-04010-000 0944004010000

$2,97

Unit Price

BAND, WIRING HARNESS
CLAMP

09407-14403-000 0940714403000

$3,97

Unit Price

LABEL, GEAR SHIFT PATTERN
LABEL, GEAR SHIFT

68392-24210-000 6839224210000

$4,97

Unit Price
