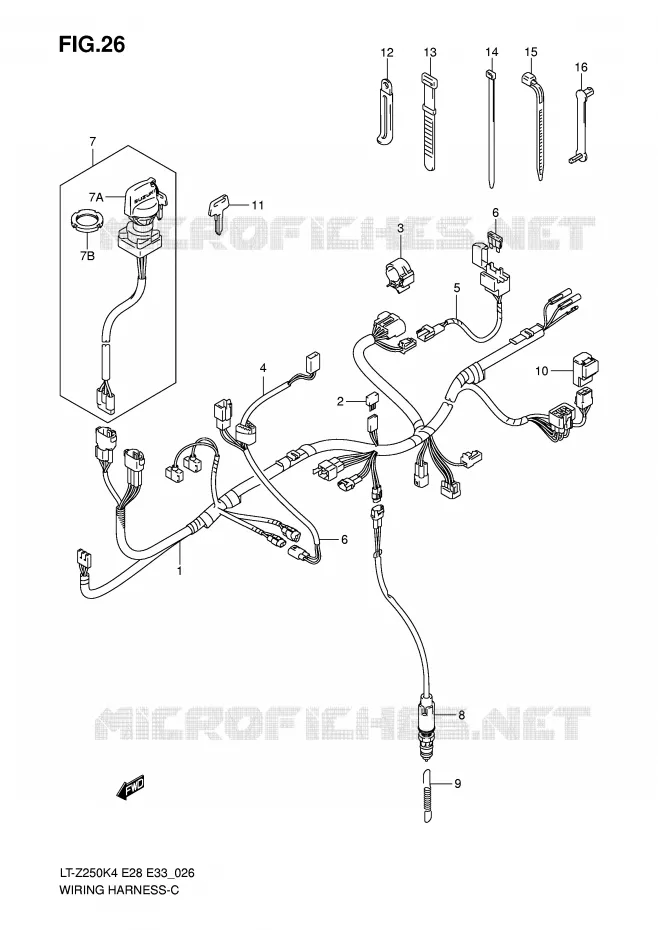

WIRING HARNESS FOR SUZUKI QUADSPORT 250 2005

* COLOR PICTURE LT-Z250K5 *

Item numbers

HARNESS, WIRING

36610-21G00-000 3661021G00000

$528,97

Unit Price

DIODE

36611-38A00-000

36611-38A10-000

$20,97

Unit Price

CLAMP
CLAMP (ID:15)

09403-15405-000 0940315405000

$4,97

Unit Price

CLAMP
CLAMP (ID:20)

09403-20403-000 0940320403000

$5,97

Unit Price

CLAMP
CLAMP (ID:25)

09403-25401-000 0940325401000

$5,97

Unit Price

DISCONTINUE
WIRE, FRONT BRAKE SW LEAD

36854-21G00-000 3685421G00000

Not available

WIRE, FUSE LEAD

36852-21G00-000 3685221G00000

$21,97

Unit Price

FUSE (15A)

09481-15101-000 0948115101000

$2,97

Unit Price

SWITCH ASSY, IGNITION

37110-05G00-000

37110-05G02-000

$147,97

Unit Price

MASCOT, KEY

37142-19B00-000

37142-19B01-000

$10,97

Unit Price

NUT, IGNITION SWITCH
NUT, IGNITION

37112-24500-000 3711224500000

$14,97

Unit Price

SWITCH ASSY, STOP LAMP

37740-38F01-000 3774038F01000

$123,97

Unit Price

BRAKE SWITCH SPRING
SPRING, STOP LAMP SWITCH

09443-06012-000 0944306012000

$4,97

Unit Price

RELAY ASSY, SIDE STAND

38740-26E00-000

38740-26E01-000

$39,97

Unit Price

KEY, BLANK (TYPE:C)

37146-19B00-000 3714619B00000

$12,97

Unit Price

KEY, BLANK (TYPE:D)

37146-19B10-000 3714619B10000

$12,97

Unit Price

KEY, BLANK (TYPE:E)

37146-19B20-000 3714619B20000

$12,97

Unit Price

KEY, BLANK (TYPE:F)

37146-19B30-000 3714619B30000

$12,97

Unit Price

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

CLAMP(L:80)

09404-06433-000

09404-06036-000

$3,97

Unit Price

FUEL HOSE CLAMP
CLAMP (L:120)

09407-12402-000 0940712402000

$4,97

Unit Price

CLAMP

09407-10404-000

09407-14407-000

$4,97

Unit Price

BAND, WIRING HARNESS

09407-11401-000

09407-14403-000

$3,97

Unit Price

CLAMP

09407-03401-000 0940703401000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
