LEVERS - HANDGRIPS (MODEL K1 / K2)

FRONT FORK (MODEL W / X) FOR SUZUKI BURGMAN 250 1998

FRONT FORK (MODEL Y) REFER TO FIG.52B(K-12) FOR MODEL K1/K2

Item numbers

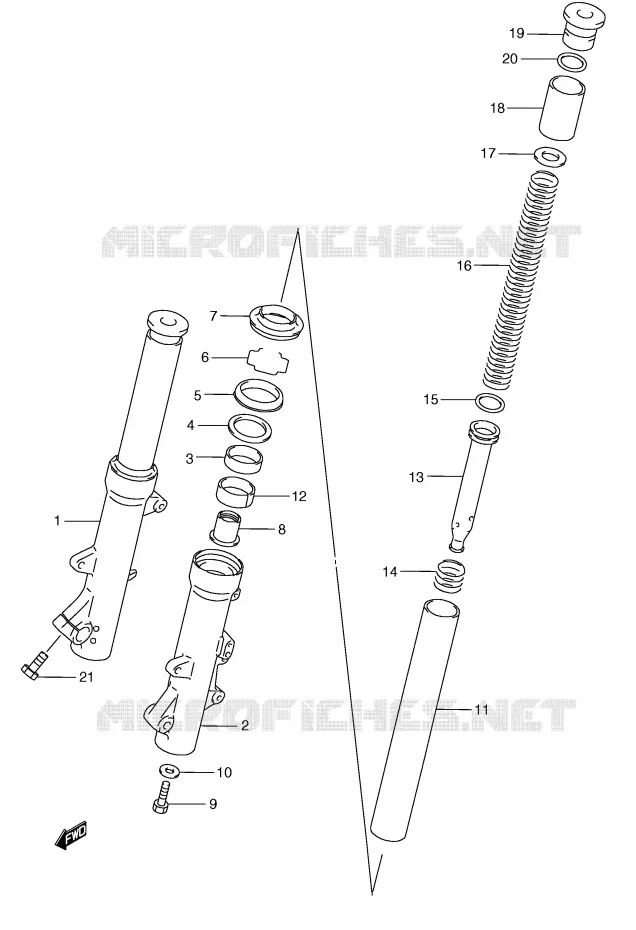

FRONT FORK (MODEL W/X) Suzuki SCOOTER 250 BURGMAN 1998 AN250W(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
DISCONTINUE
TUBE, OUTER RH

51130-14F00-000   5113014F00000

5113014F00000
Not available
2
DISCONTINUE
TUBE, OUTER LH

51140-14F00-000   5114014F00000

5114014F00000
Not available
3
METAL, SLIDE
METAL, SLIDE

51167-26E10-000   5116726E10000

5116726E10000

Unit Price

4
WASHER
WASHER

51158-05A00-000   5115805A00000

5115805A00000

Unit Price

5
SEAL, OIL
SEAL, OIL

51153-14F00-000   5115314F00000

5115314F00000

Unit Price

6
RING,OIL SEAL STOPPER<br />RING, SNAP
RING, OIL SEAL STOPPER
RING, SNAP

51156-49440-000   5115649440000

5115649440000

Unit Price

7
SEAL, DUST
SEAL, DUST

51173-14F00-000   5117314F00000

5117314F00000

Unit Price

8
PIECE, OIL LOCK
PIECE, OIL LOCK

51195-33D10-000   5119533D10000

5119533D10000

Unit Price

9
BOLT,FORK CYLINDER(10X25)<br />BOLT
BOLT, FORK CYLINDER(10X25)
BOLT

51147-16510-000   5114716510000

5114716510000

Unit Price

10
GASKET
GASKET

51148-41310-000   5114841310000

5114841310000

Unit Price

11
TUBE, INNER

51110-14F00-000   5111014F00000

5111014F00000
Not available
12
PISTON
PISTON

51121-33D10-000   5112133D10000

5112133D10000

Unit Price

13
CYLINDER

51146-14F00-000   5114614F00000

5114614F00000
Not available
14
SPRING,REBOUND<br />SPRING
SPRING, REBOUND
SPRING

51177-06C00-000   5117706C00000

5117706C00000

Unit Price

15
DISCONTINUE<br />RING, PISTON
DISCONTINUE
RING, PISTON

51196-33D10-000   5119633D10000

5119633D10000
Not available
16
SPRING, FRONT

51171-14F00-000   5117114F00000

5117114F00000
Not available
17
WASHER(22.5X35.9X1.6)<br />WASHER
WASHER(22.5X35.9X1.6)
WASHER

51356-10D03-000   5135610D03000

5135610D03000

Unit Price

18
SPACER, SPRING

51176-14F00-000   5117614F00000

5117614F00000
Not available
19
CAP

51351-14F00-000   5135114F00000

5135114F00000
Not available
20
O RING
O RING

09280-32001-000   0928032001000

0928032001000

Unit Price

21
BOLT<br />BOLT, RH (8X25)
BOLT
BOLT, RH (8X25)

07130-08257-000   0713008257000

0713008257000

Unit Price

99x
DAMPER ASSY, FRONT FORK RH

51103-14F00-000   5110314F00000

5110314F00000
Not available
99x
DAMPER ASSY, FRONT FORK LH

51104-14F00-000   5110414F00000

5110414F00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK (MODEL W/X) of your Suzuki of BURGMAN. Let us know if you have any questions.
