HANDLEBAR (MODEL W / X) FOR SUZUKI BURGMAN 250 2001

HANDLEBAR (MODEL Y) REFER TO FIG.45B(I-13) FOR MODEL K1/K2

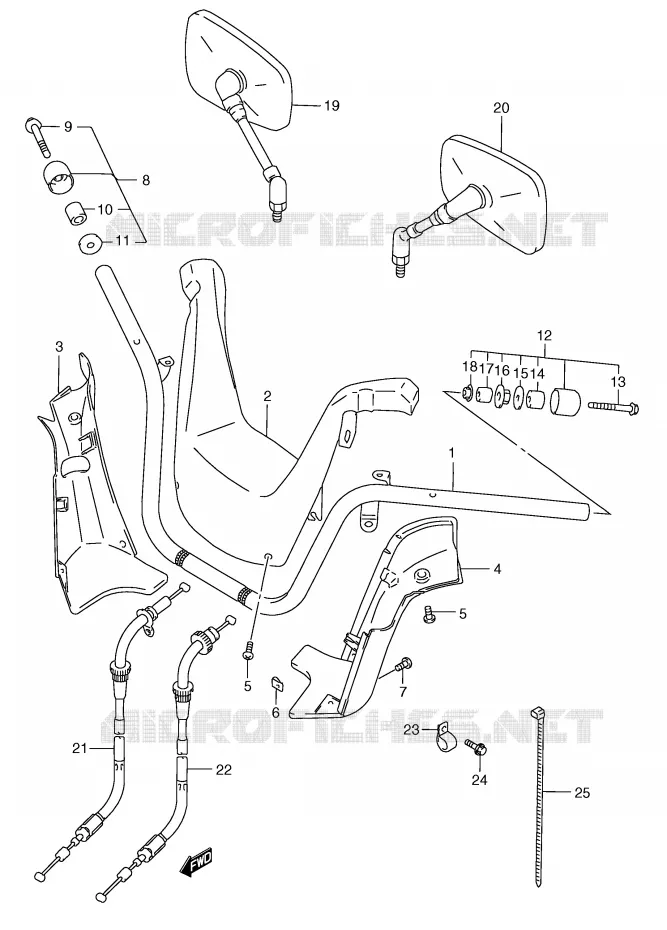

HANDLEBAR (MODEL W/X) Suzuki SCOOTER 250 BURGMAN 2001 AN250K1(E2)
1
HANDLE BAR

56110-14F00-000   5611014F00000

5611014F00000
Not available
2
COVER, HANDLE UPPER (GRAY)

56311-14F00-Y0J   5631114F00Y0J

5631114F00Y0J
Not available
3
COVER, HANDLE LOWER RH (GRAY)

56321-14F00-Y0J   5632114F00Y0J

5632114F00Y0J
Not available
4
COVER, HANDLE LOWER LH (GRAY)

56331-14F00-Y0J   5633114F00Y0J

5633114F00Y0J
Not available
5
SCREW

03541-04163-000  

03541-0416A-000
 0354104163000

Unit Price

6
NUT
NUT

09148-04024-000   0914804024000

0914804024000

Unit Price

7
SCREW

02142-05123-000  

02142-0512A-000
 0214205123000

Unit Price

8
BALANCER ASSY, HANDLE RH

57210-14F00-000   5721014F00000

5721014F00000
Not available
9
SCREW

02122-06407-000   0212206407000

0212206407000
Not available
10
FR BEARING RHSPACER
SPACER

09180-12141-000   0918012141000

0918012141000

Unit Price

11
SPACER,BALANCER<br />SPACER, INNER
SPACER, BALANCER
SPACER, INNER

56275-34401-000   5627534401000

5627534401000

Unit Price

12
BALANCER ASSY, HANDLE LH

57220-14F00-000   5722014F00000

5722014F00000
Not available
13
SCREW
SCREW

02122-06657-000   0212206657000

0212206657000

Unit Price

14
FR BEARING RHSPACER
SPACER

09180-12141-000   0918012141000

0918012141000

Unit Price

15
SPACER,BALANCER<br />SPACER, INNER
SPACER, BALANCER
SPACER, INNER

56275-34401-000   5627534401000

5627534401000

Unit Price

16
NUT

08316-10083-000  

08316-1008B-000
 0831610083000

Unit Price

17
EXPANDER,HDL BALANCER INNER<br />EXPANDER, HANDLE
EXPANDER, HDL BALANCER INNER
EXPANDER, HANDLE

56272-44500-000   5627244500000

5627244500000

Unit Price

18
NUT,HANDLE BALANCER<br />NUT
NUT, HANDLE BALANCER
NUT

09159-06024-000   0915906024000

0915906024000

Unit Price

19
DISCONTINUE
MIRROR ASSY, REAR VIEW RH

56500-03F00-000  

5650003F00000
Not available
20
56600-03F90
MIRROR ASSY, REAR VIEW LH

56600-03F00-000  

5660003F00000
Not available
21
CABLE ASSY, THROTTLE NO.1

58300-14F00-000   5830014F00000

5830014F00000
Not available
22
CABLE ASSY, THROTTLE NO.2

58300-14F10-000   5830014F10000

5830014F10000
Not available
23
PROTECTOR, STRTR CABL
CLAMP

09403-14204-000  

0940314204000
Not available
24
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

25
CLAMP,WIRING HARNESS<br />CLAMP (L:165)
CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000   0940718402000

0940718402000

Unit Price

25
CLAMP<br />CLAMP (L:235)
CLAMP
CLAMP (L:235)

09407-25401-000   0940725401000

0940725401000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HANDLEBAR (MODEL W/X) of your Suzuki of BURGMAN. Let us know if you have any questions.

Genuine parts for Suzuki 250 BURGMAN 2001
