TAIL LIGHT (MODEL K3 E38) REFER TO FIG.30B(F- 8) FOR MODEL K4/K5/K6 E38

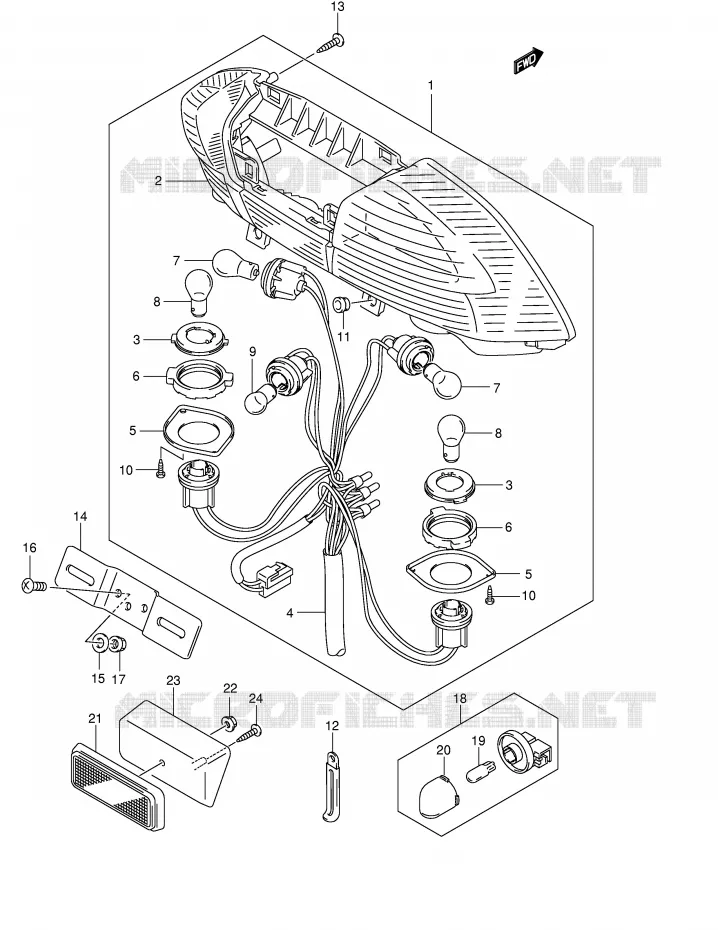

TAIL LIGHT (MODEL K4 / K5 / K6 E38) FOR SUZUKI BURGMAN 250 2004

WIRING HARNESS (MODEL K3 / K4 E2,E19,E24,E71) REFER TO FIG.31A(F-11) FOR MODEL K5 E2,E19,IMOBI

Item numbers

LAMP ASSY, REAR COMB

35710-14GA0-000 3571014GA0000

Not available

LAMP ASSY, REAR COMB

35710-14GB0-000 3571014GB0000

Not available

UNIT, LAMP

35720-14GA0-000 3572014GA0000

Not available

UNIT, LAMP

35720-14GB0-000 3572014GB0000

Not available

PLATE NO.1

35716-48B21-000 3571648B21000

$34,97

Unit Price

SOCKET & CORD

35718-14GA0-000 3571814GA0000

Not available

PLATE NO.2

35736-48B21-000 3573648B21000

$22,97

Unit Price

CUSHION

35765-48B21-000 3576548B21000

$17,97

Unit Price

BULB(12V55W/H7/PX26D/PHILIPS)
BULB (12V21W)

09471-12186-000 0947112186000

$13,97

Unit Price

BULB(12V1.4W G30)

09471-12128-000

09471-12083-000

$9,97

Unit Price

BULB (12V, 7/3.4W)

09471-12169-000 0947112169000

$17,97

Unit Price

SCREW

03211-04123-000

03211-0412A-000

$2,97

Unit Price

DISCONTINUE
CUSHION

35728-14G00-000 3572814G00000

Not available

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

SCREW

03541-05163-000

03541-0516B-000

$3,97

Unit Price

PLATE, RR LICENSE
PLATE, LICENSE

35927-44110-000 3592744110000

$57,97

Unit Price

WASHER, 6.5X24X1.2

09160-06140-000

09160-06114-000

$3,97

Unit Price

SCREW

02142-06163-000

02142-0616A-000

$2,97

Unit Price

NUT 6MM

08316-10063-000

08319-31067-000

$3,97

Unit Price

LAMP ASSY, LICENSE

35910-14F01-000 3591014F01000

$29,97

Unit Price

BULB 12V1.7W, T6.5
BULB (12V5W)

09471-12216-000

Not available

LENS

35912-14F11-000 3591214F11000

$17,97

Unit Price

REFLECTOR ASSY, RR

35970-07F00-000

35970-07F01-000

$21,97

Unit Price

NUT

08316-10053-000

08316-1005B-000

$4,97

Unit Price

SPACER, REAR RR

35977-14G00-000 3597714G00000

Not available

SCREW

03541-05163-000

03541-0516B-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT (MODEL K4/K5/K6 E38) of your Suzuki of BURGMAN. Let us know if you have any questions.
