ELECTRICAL (MODEL K3 / K4) REFER TO FIG.26A(E- 9) FOR MODEL K5/K6

ELECTRICAL (MODEL K5 / K6) FOR SUZUKI BURGMAN 250 2006

SPEEDOMETER (MODEL K3) REFER TO FIG.27A(E-11) FOR MODEL K4

Item numbers

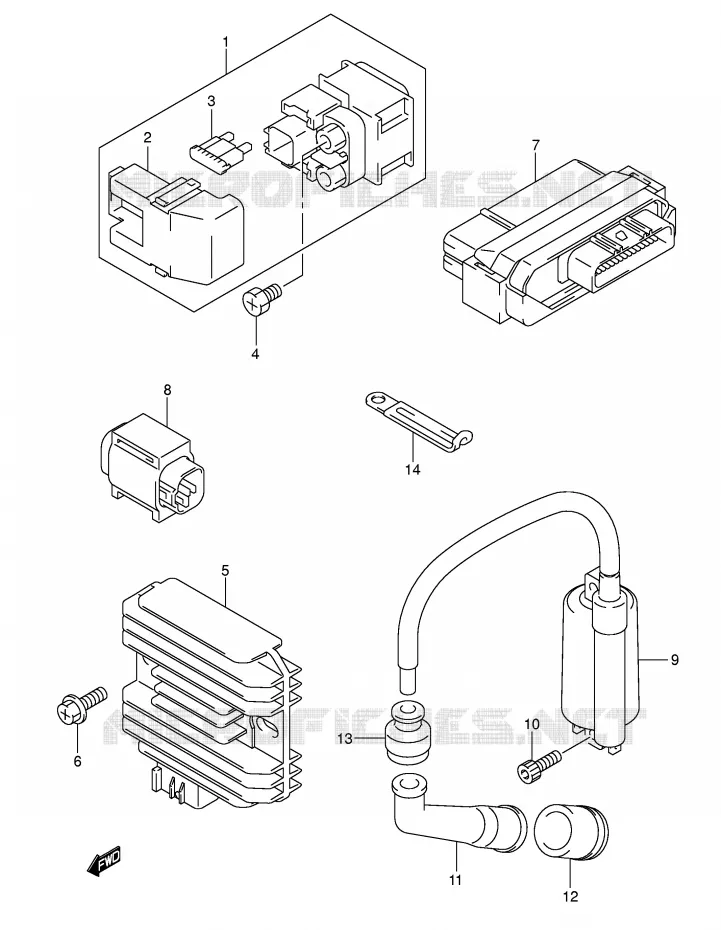

ELECTRICAL (MODEL K5/K6) Suzuki SCOOTER 250 BURGMAN 2006 AN250K6(E2)
1
2
3
4
5
6
7
7
7
7
8
9
10
11
12
13
14
1
RELAY ASSY,STARTING MOTOR
RELAY ASSY, STARTING MOTOR

31800-21E20-000  

31800-21E30-000
 3180021E20000

Unit Price

2
COVER
COVER

31861-47E00-000   3186147E00000

3186147E00000

Unit Price

3
FUSE (30A)
FUSE (30A)

09481-30101-000   0948130101000

0948130101000

Unit Price

4
SCREW (6X8)
SCREW (6X8)

09128-06013-000   0912806013000

0912806013000

Unit Price

5
RECTIFIER ASSY

32800-14G00-000  

32800-20H00-000
 3280014G00000

Unit Price

6
SCREW

02162-06203-000  

02162-0620C-000
 0216206203000

Unit Price

7
CONTROL UNIT, FI

32920-14GA0-000   3292014GA0000

3292014GA0000
Not available
7
CONTROL UNIT, FI

32920-14GB0-000   3292014GB0000

3292014GB0000
Not available
7
CONTROL UNIT, FI

32920-14GD0-000   3292014GD0000

3292014GD0000
Not available
7
CONTROL UNIT, FI

32920-14GF0-000   3292014GF0000

3292014GF0000
Not available
8
SENSOR ASSY, FUEL CUT

33960-06G10-000   3396006G10000

3396006G10000

Unit Price

9
COIL ASSY, IGNITION

33410-14F00-000   3341014F00000

3341014F00000

Unit Price

10
BOLT

07130-05203-000  

07130-0520B-000
 0713005203000

Unit Price

11
CAP ASSY, SPARK PLUG

33510-45010-000   3351045010000

3351045010000

Unit Price

12
SEAL, SPARK PLUG

33541-44D00-000   3354144D00000

3354144D00000

Unit Price

13
SEAL, HIGH TENSION CORD
SEAL, HIGH TENSION CORD

33542-38B00-000   3354238B00000

3354238B00000

Unit Price

14
CLAMP(L:80)

09404-06433-000  

09404-06036-000
 0940406433000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL (MODEL K5/K6) of your Suzuki of BURGMAN. Let us know if you have any questions.

Genuine parts for Suzuki 250 BURGMAN 2006
