CRANKCASE COVER

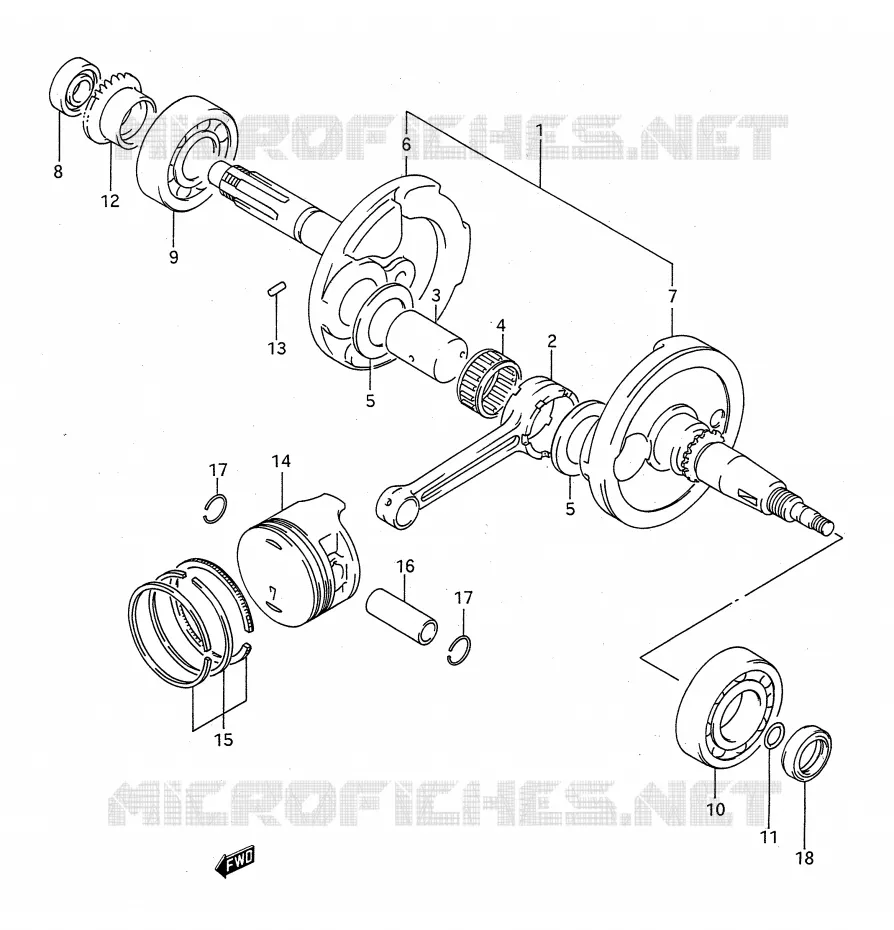

CRANKSHAFT FOR SUZUKI KINGQUAD 300 1993

STARTER MOTOR CLUTCH

Item numbers

CRANKSHAFT ASSY

12200-19B70-000 1220019B70000

$1 162,97

Unit Price

ROD, CONNECTING

12161-19B70-000 1216119B70000

$151,97

Unit Price

PIN, CRANK

12210-25C00-000

12210-25C01-000

$53,97

Unit Price

BEARING(32X41X18)
BEARING

09263-32011-0C0 09263320110C0

$95,97

Unit Price

WASHER(32X48.5X1)
WASHER

09160-32018-000 0916032018000

$17,97

Unit Price

CRANKSHAFT, R

12220-19B71-000

12220-19B72-000

$423,97

Unit Price

12261-19B72
CRANKSHAFT, LH

12261-19B71-000 1226119B71000

Not available

BEARING(15X35X11)
BEARING, RH (15X35X11)

09262-15014-000 0926215014000

$31,97

Unit Price

BALL BEARING
BEARING, MDL (28X68X18)

09262-28014-000 0926228014000

$82,97

Unit Price

BEARING 35X72X17
BEARING, LH (35X72X17)

09262-35038-000 0926235038000

$68,97

Unit Price

O RING(D:1.9, ID:12.6)

09280-13007-000

09280-12009-000

$4,97

Unit Price

GEAR, OIL PUMP DRIVE
GEAR, OIL PUMP DRIVE (NT:30)

16321-19B10-000 1632119B10000

$61,97

Unit Price

04221-04089-000 0422104089000

$1,97

Unit Price

PISTON SET(OS:0.5)

12111-19B80-050

12100-19B80-050

$239,97

Unit Price

PISTON (68.50MM)
PISTON

12111-19B80-0F0 1211119B800F0

$156,97

Unit Price

DISCONTINUE

12111-19B80-100

Not available

RING SET, PISTON

12140-19B80-000 1214019B80000

$121,97

Unit Price

RING SET, PISTON(OS:0.50)
RING SET, PISTON (OS:0.5)

12140-19B80-050 1214019B80050

$102,97

Unit Price

DISCONTINUE
RING SET, PISTON (OS:1.0)

12140-19B80-100 1214019B80100

Not available

PIN, PISTON

12151-25C00-000 1215125C00000

$22,97

Unit Price

CIRCLIP

09381-17003-000 0938117003000

$6,97

Unit Price

SEAL, OIL CRANKSHAFT
OIL SEAL (22X35X7)

09289-22008-000 0928922008000

$51,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of KINGQUAD. Let us know if you have any questions.
