FRONT FINAL GEAR

DIFFERENTIAL LOCK FOR SUZUKI KINGQUAD 300 1994

TRANSMISSION LEVER

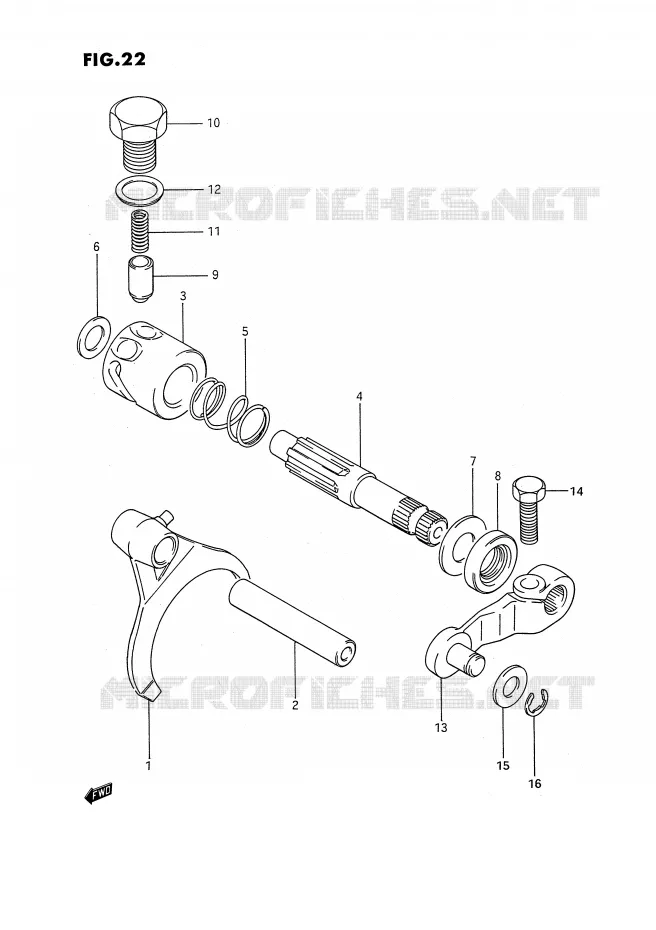

DIFFERENTIAL LOCK Suzuki QUAD 300 KINGQUAD 1994 LT-F4WDXR(E3)

1

FORK, DIFF LOCKING SHIFT
FORK, DIFFRENTIAL LOCKING

27941-19B00-000 2794119B00000

Not available

2

SHAFT, GEAR SHIFT FORK

25421-14300-000

25421-14301-000

$22,97

Unit Price

3

DISCONTINUE
CAM, DIFFERENTIAL LOCKING

27911-19B01-000 2791119B01000

Not available

4

SHAFT, FR DIFF LOCKING CAM
SHAFT, CAM

27921-19B01-000 2792119B01000

$75,97

Unit Price

5

SPRING

09440-17008-000 0944017008000

$34,97

Unit Price

6

SHIM(10X18X1)

08211-10181-000

09181-10167-000

$3,97

Unit Price

7

TOP PINION WASHER
WASHER

08211-12241-000 0821112241000

$3,97

Unit Price

8

OIL SEAL
OIL SEAL (12X22X9)

09285-12006-000 0928512006000

$10,97

Unit Price

9

STOPPER, GEAR SHIFT CAM

25351-18000-000

25351-39300-000

$16,97

Unit Price

10

HOUSING, GEAR SHIFT CAM STOPPER
HOUSING

25352-11010-000 2535211010000

$14,97

Unit Price

11

SPRING

09440-05035-000 0944005035000

$4,97

Unit Price

12

GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000 0916814002000

$3,97

Unit Price

13

ARM, T/M GEAR SHIFT
ARM, DIFFERENTIAL LOCKING

25360-19B00-000 2536019B00000

$65,97

Unit Price

14

BOLT

01500-06207-000 0150006207000

$3,97

Unit Price

15

WASHER

08322-01087-000 0832201087000

$3,97

Unit Price

16

E RING

08332-11063-000

08332-1106B-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the DIFFERENTIAL LOCK of your Suzuki of KINGQUAD. Let us know if you have any questions.
