COOLING FAN

STARTER MOTOR (MODEL X) FOR SUZUKI KINGQUAD 300 2000

STARTER MOTOR (MODEL Y)

Item numbers

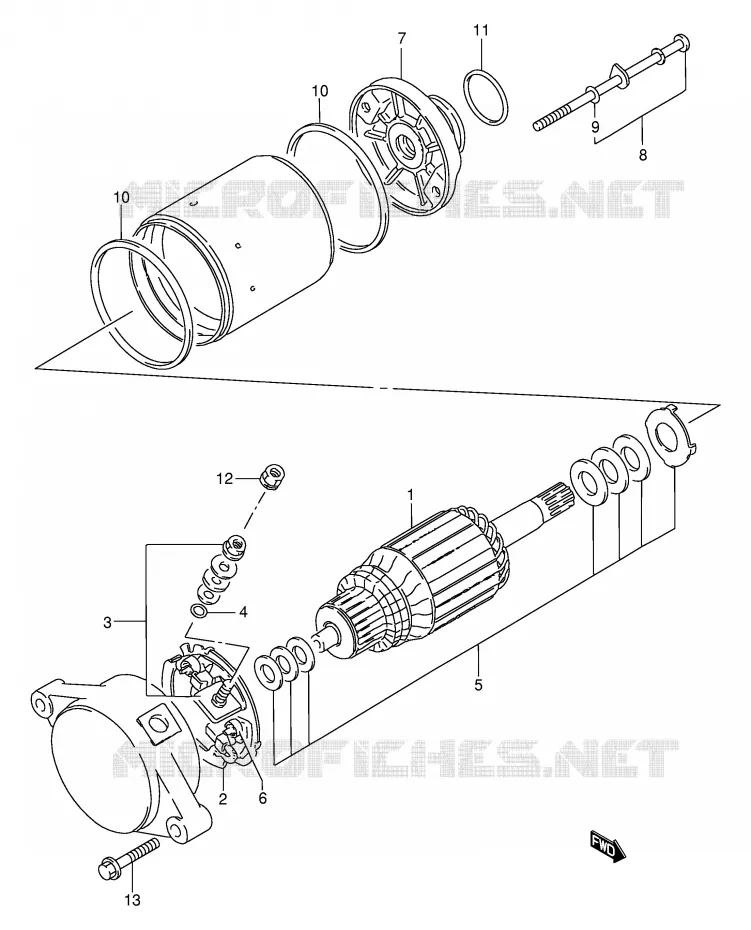

STARTER MOTOR (MODEL X) Suzuki QUAD 300 KINGQUAD 2000 LT-F300Y(E24)
1
2
3
4
5
6
7
8
9
10
10
11
12
13
1
DISCONTINUE
ARMATURE

31311-19B12-000   3131119B12000

3131119B12000
Not available
2
HOLDER SET, BRUSH (-)

31132-19B10-000   3113219B10000

3113219B10000

Unit Price

3
TERMINAL SET, BRUSH, PLUS
TERMINAL SET, BRUSH (+)

31130-19B10-000   3113019B10000

3113019B10000

Unit Price

4
O RING
O RING

31143-49040-000   3114349040000

3114349040000

Unit Price

5
WASHER SET
WASHER SET

31170-19B10-000   3117019B10000

3117019B10000

Unit Price

6
SPRING, BRUSH
SPRING, BRUSH

31135-31300-000   3113531300000

3113531300000

Unit Price

7
DISCONTINUE
BRACKET ASSY, FRONT

31150-19B10-000   3115019B10000

3115019B10000
Not available
8
DISCONTINUE
BOLT SET

31280-19B10-000   3128019B10000

3128019B10000
Not available
9
O RING
O RING

31143-49040-000   3114349040000

3114349040000

Unit Price

10
SQUARE RING<br />O RING
SQUARE RING
O RING

31264-32E00-000  

3126432E00000
Not available
11
RING,STARTER MOTOR<br />O RING (D:3.0,ID:24.5)
RING, STARTER MOTOR
O RING (D:3.0, ID:24.5)

09280-24003-000   0928024003000

0928024003000

Unit Price

12
NUT

08361-35068-000  

08361-3506A-000
 0836135068000

Unit Price

13
BOLT

01547-06253-000  

01547-0625B-000
 0154706253000

Unit Price

99x
MOTOR ASSY, STARTING

31100-19B12-000  

31100-19B20-000
 3110019B12000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER MOTOR (MODEL X) of your Suzuki of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 300 KINGQUAD 2000

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 300 KINGQUAD 2000

Select your Suzuki 2000 model

300 KINGQUAD 2000 LT-F300Y(E24)

Suzuki KINGQUAD

Displacement: 300 cc
Year: 2000
Model code LT-F300Y(E24)
2WD
