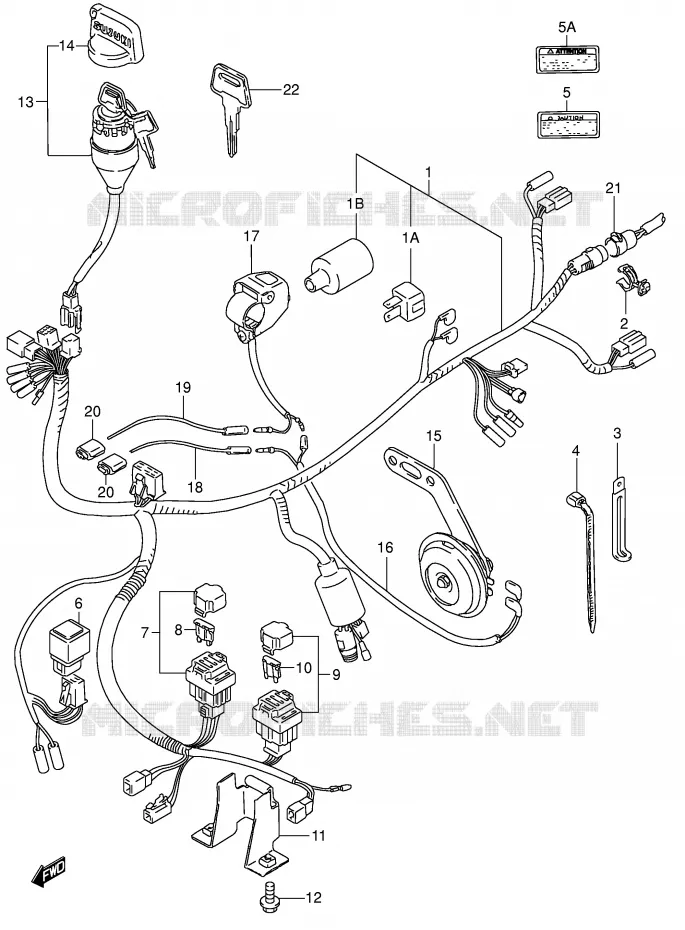

WIRING HARNESS (MODEL X / Y) FOR SUZUKI KINGQUAD 300 2004

WIRING HARNESS (MODEL K1 / K2 / K4)

Item numbers

RECTIFIER ASSY
DIODE

32800-16A00-000 3280016A00000

$27,97

Unit Price

HARNESS, WIRING

36610-39DE0-000 3661039DE0000

Not available

DISCONTINUE
HARNESS, WIRING

36610-39DN0-000 3661039DN0000

Not available

CAP

36634-93910-000 3663493910000

Not available

CLAMP

09403-16307-000 0940316307000

Not available

CLAMP(L:65)

09404-06432-000

09404-06039-000

$3,97

Unit Price

BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000 0940714403000

$3,97

Unit Price

CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000 0940718402000

$3,97

Unit Price

DISCONTINUE
LABEL, CAUTION MAX AMP

38852-19B10-000 3885219B10000

Not available

LABEL, CAUTION MAX AMP

38852-19B20-000 3885219B20000

Not available

RELAY, NEUTRAL STARTER
RELAY, NEUTRAL START

38730-19B00-000 3873019B00000

$61,97

Unit Price

BOX ASSY, FUSE
BOX ASSY, MAIN FUSE

36740-24B01-000 3674024B01000

$27,97

Unit Price

FUSE (20A)

09481-20101-000 0948120101000

$2,97

Unit Price

BOX ASSY, FUSE
BOX ASSY, POWER SOURCE FUSE

36740-04701-000 3674004701000

$32,97

Unit Price

FUSE (15A)

09481-15101-000 0948115101000

$3,97

Unit Price

HOLDER, ELECTRIC PARTS FR
HOLDER, ELECTRIC FRONT

47410-19B00-000 4741019B00000

$15,97

Unit Price

BOLT (6X12)

09118-06103-000 0911806103000

Not available

SWITCH ASSY, IGNITION

37110-19B02-000

37110-19B03-000

$130,97

Unit Price

MASCOT, KEY

37142-19B00-000

37142-19B01-000

$9,97

Unit Price

DISCONTINUE

38500-19B02-000

Not available

LEAD WIRE, HORN

36852-19B00-000 3685219B00000

Not available

SWITCH ASSY, HORN

37830-18A00-000

37830-27H00-000

$48,97

Unit Price

LEAD WIRE, SWITCH (ORANGE)

36851-19B00-000 3685119B00000

Not available

LEAD WIRE, SWITCH

36851-19B10-000 3685119B10000

Not available

CONNECTOR, LEAD WIRE
CONNECTOR

36859-36590-000 3685936590000

$9,97

Unit Price

PLUG ASSY, POWER SOURCE

39602-18A00-000 3960218A00000

$44,97

Unit Price

KEY, BLANK (TYPE:C)

37146-19B00-000 3714619B00000

$12,97

Unit Price

KEY, BLANK (TYPE:D)

37146-19B10-000 3714619B10000

$12,97

Unit Price

KEY, BLANK (TYPE:E)

37146-19B20-000 3714619B20000

$12,97

Unit Price

KEY, BLANK (TYPE:F)

37146-19B30-000 3714619B30000

$12,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS (MODEL X/Y) of your Suzuki of KINGQUAD. Let us know if you have any questions.
