FUEL EVAP SYSTEM (DR350SL / SM E18) REFER TO FIG.13C(D-4) FOR DR350SHN/SHP E18

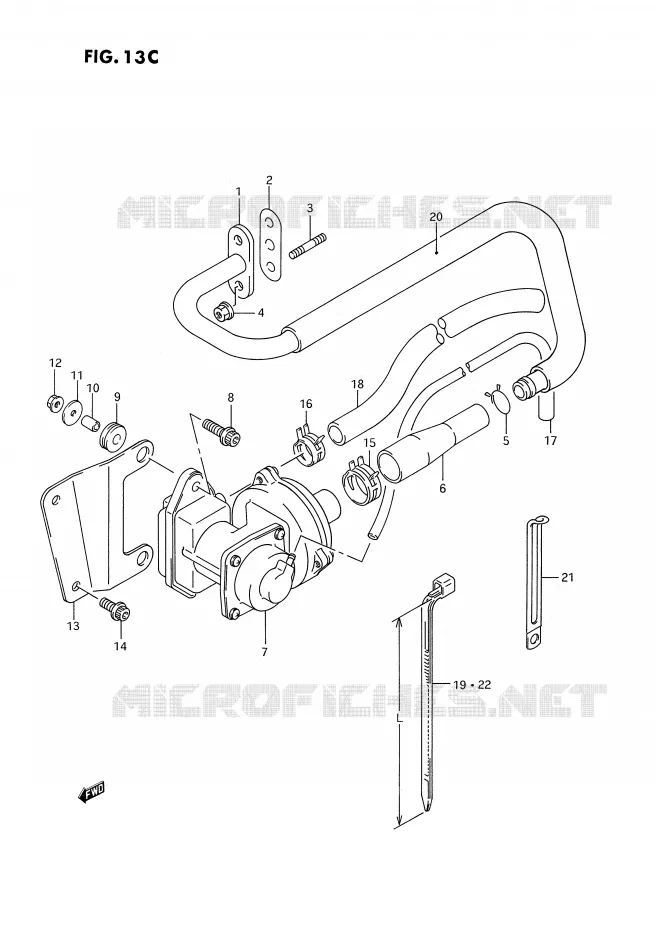

FUEL EVAP SYSTEM (DR350SHN / SHP E18) FOR SUZUKI DR 350 1990

FUEL EVAP SYSTEM (DR350SR E18,DR350SN / SP / SUP / SR E39)

PIPE, 2ND AIR

18420-14D10-000 1842014D10000

Not available

GASKET (NA)

18441-12D10-000 1844112D10000

Not available

BOLT, STUD

01421-06165-000

01421-0616A-000

$3,97

Unit Price

NUT 6MM

08316-16064-000

08319-31067-000

$3,97

Unit Price

CLIP

09401-15301-000 0940115301000

$4,97

Unit Price

HOSE, 2ND AIR

18446-14D00-000 1844614D00000

Not available

VALVE ASSY, 2ND AIR REED

18450-14D00-000 1845014D00000

Not available

BOLT

07120-06255-000

07120-0625A-000

$4,97

Unit Price

CUSHION

09320-13018-000 0932013018000

Not available

SPACER (6.2X9X12.5)

09180-06228-000 0918006228000

Not available

WASHER, 6.5X24X1.2

09160-06113-000

09160-06114-000

$3,97

Unit Price

NUT 6MM

08316-16064-000

08319-31067-000

$3,97

Unit Price

BRACKET, 2ND AIR VALVE

18460-14D00-000 1846014D00000

Not available

BOLT

07120-08125-000 0712008125000

Not available

CLIP

09401-23403-000 0940123403000

Not available

CLIP

09401-15404-000 0940115404000

$3,97

Unit Price

HOSE, 2ND AIR NO.2

09359-40701-600 0935940701600

Not available

HOSE(12X16X600)

09352-12163-600

09352-12164-600

$20,97

Unit Price

CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000 0940718402000

$3,97

Unit Price

PROTECTOR, 2ND AIR PIPE

18421-14D10-000 1842114D10000

Not available

CLAMP (L:97)

09404-06405-000 0940406405000

Not available

BAND, WIRING HARNESS
CLAMP

09407-14403-000 0940714403000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL EVAP SYSTEM (DR350SHN/SHP E18) of your Suzuki of DR. Let us know if you have any questions.
