Displacement

Model

Year

Finish line

Parts catalogue

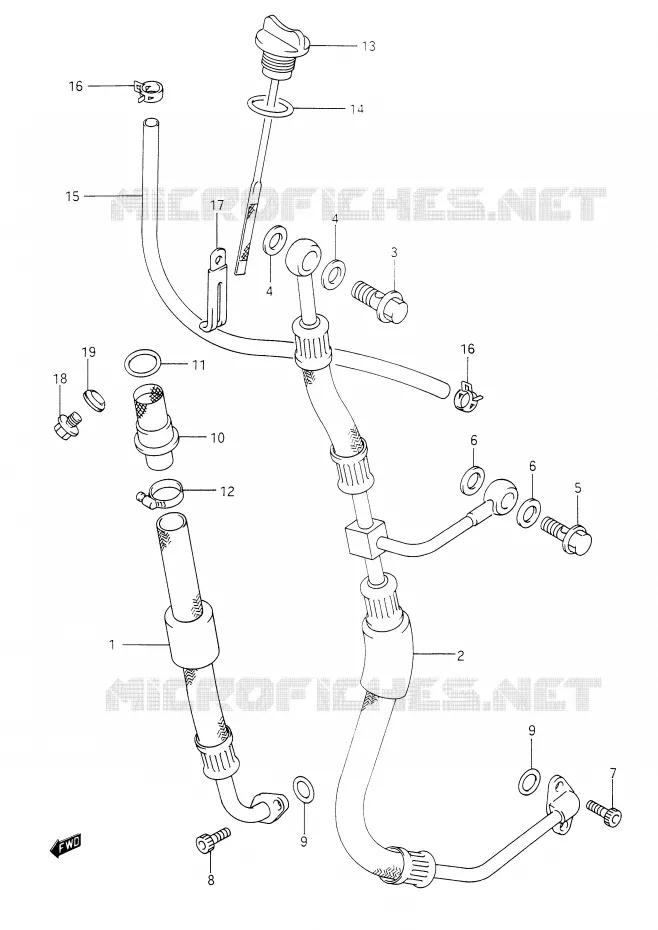

Parts diagram

OIL PUMP

OIL HOSE FOR SUZUKI DR 350 1992

OIL COOLER (OPTIONAL)

Item numbers
OIL HOSE Suzuki MOTO 350 DR 1992 DR350N(E28)
1
1
2
2
3
4
4
5
5
6
6
6
6
7
7
8
8
9
9
10
11
12
13
14
15
16
16
16
16
17
17
18
18
19
1
HOSE, OIL TANK INLET

16460-14D02-000  

16460-14D03-000
 1646014D02000

Unit Price

2
HOSE, OIL TANK

16470-14D02-000  

16470-14D51-000
 1647014D02000

Unit Price

3
BOLT<br />BOLT, UNION
BOLT
BOLT, UNION

09360-16002-000   0936016002000

0936016002000

Unit Price

4
GASKET (16X22X2)
GASKET (16X22X2)

09168-16003-000   0916816003000

0916816003000

Unit Price

5
BOLT, UNION

09360-12009-000  

09360-12010-000
 0936012009000

Unit Price

6
GASKET (12X16.5X1.5)

09168-12010-000   0916812010000

0916812010000

Unit Price

6
GASKET 16X22X2<br />GASKET (12X16.5X1.5)
GASKET 16X22X2
GASKET (12X16.5X1.5)

09168-16003-000   0916816003000

0916816003000

Unit Price

7
BOLT

07110-06165-000  

07130-0616B-000
 0711006165000

Unit Price

8
BOLT

07110-06205-000  

07130-0620B-000
 0711006205000

Unit Price

9
O RING,CYLINDER<br />O RING (D:2.4,ID:12.3)
O RING, CYLINDER
O RING (D:2.4, ID:12.3)

09280-12008-000   0928012008000

0928012008000

Unit Price

10
STRAINER, FRAME HEAD UNDER

16550-14D02-000   1655014D02000

1655014D02000

Unit Price

11
O-RING,CRK HOLE PLUG<br />O RING (D:3.1,ID:22.7)
O-RING, CRK HOLE PLUG
O RING (D:3.1, ID:22.7)

09280-22008-000   0928022008000

0928022008000

Unit Price

12
CLAMP

09402-22502-000  

09402-22512-000
 0940222502000

Unit Price

13
GAUGE ASSY, OIL LEVEL
GAUGE, OIL LEVEL

16560-14D01-000   1656014D01000

1656014D01000

Unit Price

14
O-RING,OIL FILLER<br />O RING (D:3.1,ID:16.8)
O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000   0928017003000

0928017003000

Unit Price

15
HOSE, OIL OVER FLOW

16480-14D00-000  

16480-47D00-000
 1648014D00000

Unit Price

16
CLAMP,WATER HOSE
CLAMP, WATER HOSE

09401-11407-000  

09401-11415-000
 0940111407000

Unit Price

17
CLAMP(L:65)

09404-06402-000  

09404-06039-000
 0940406402000

Unit Price

18
CRANK DRAIN PLUG<br />PLUG, DRAIN
CRANK DRAIN PLUG
PLUG, DRAIN

09247-10001-000   0924710001000

0924710001000

Unit Price

18
PLUG
PLUG, DRAIN

09247-10008-000   0924710008000

0924710008000

Unit Price

19
CRNK DRAIN PLUG GASK<br />GASKET
CRNK DRAIN PLUG GASK
GASKET

09168-10002-000   0916810002000

0916810002000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL HOSE of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 350 DR 1992

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 350 DR 1992

Select your Suzuki 1992 model

350 DR 1992 DR350N(E28)

Suzuki DR

Displacement: 350 cc
Year: 1992
Model code DR350N(E28)
