Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TRANSMISSION (E.NO.106033~)

GEAR SHIFTING ASSY FOR SUZUKI DR 350 1994

KICK STARTER NOTE : WHEN YOU REPLACE THE KICK DRIVE GEAR (26240-14D00)

Item numbers

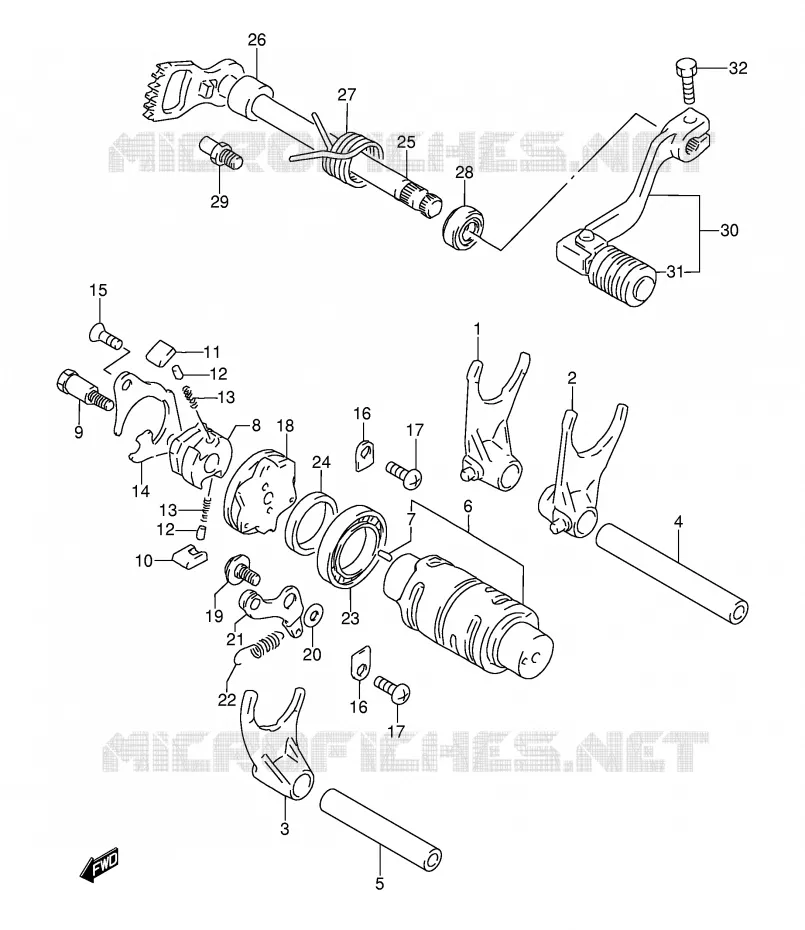

GEAR SHIFTING ASSY Suzuki MOTO 350 DR 1994 DR350R(E3)
1
2
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
15
15
16
16
17
17
17
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
30
31
32
32
32
1
FORK, GEAR SHIFT NO.1

25211-14D01-000  

25211-14D02-000
 2521114D01000

Unit Price

2
FORK, GEAR SHIFT NO.2

25221-14D01-000  

25221-14D03-000
 2522114D01000

Unit Price

3
FORK, GEAR SHIFT NO.3

25231-14D01-000  

25231-14D02-000
 2523114D01000

Unit Price

4
SHAFT, GEAR SHIFT FORK(L:95)

25411-27C00-000  

25411-37F20-000
 2541127C00000

Unit Price

5
SHAFT, GEAR SHIFT FORK(L:70)
SHAFT, NO.2 (L:70)

25421-14D00-000   2542114D00000

2542114D00000

Unit Price

6
CAM, GEAR SHIFT
CAM

25310-14D01-000   2531014D01000

2531014D01000

Unit Price

7
PIN<br />PIN, SHIFT CAM STOPPER PLATE
PIN
PIN, SHIFT CAM STOPPER PLATE

04221-04089-000   0422104089000

0422104089000

Unit Price

8
GEAR, GEAR SHIFT CAM DRIVEN

25322-31301-000  

25322-31310-000
 2532231301000

Unit Price

9
PIN, SHIFT CAM DRIVEN GEAR

25312-38A00-000   2531238A00000

2531238A00000

Unit Price

10
PAWL,GEAR SHIFT NO.1<br />PAWL, NO.1
PAWL, GEAR SHIFT NO.1
PAWL, NO.1

25323-34201-000   2532334201000

2532334201000

Unit Price

11
PAWL,GEAR SHIFT NO.2<br />PAWL, NO.2
PAWL, GEAR SHIFT NO.2
PAWL, NO.2

25324-34201-000   2532434201000

2532434201000

Unit Price

12
SHIFTING PAUL ROLLER<br />PIN
SHIFTING PAUL ROLLER
PIN

09261-05003-000   0926105003000

0926105003000

Unit Price

13
K S PAWL SPRING<br />SPRING
K S PAWL SPRING
SPRING

09440-04003-000   0944004003000

0944004003000

Unit Price

14
LIFTER, GEAR SHIFT PAWL
LIFTER, PAWL

25331-14D00-000   2533114D00000

2533114D00000

Unit Price

15
SCREW

02122-06123-000  

02122-0612B-000
 0212206123000

Unit Price

15
SCREW

02122-06128-000  

02122-06127-000
 0212206128000

Unit Price

16
RETAINER<br />RETAINER, SHIFT CAM BEARING
RETAINER
RETAINER, SHIFT CAM BEARING

24741-21A00-000   2474121A00000

2474121A00000

Unit Price

17
SCREW

02112-06123-000  

02112-3612A-000
 0211206123000

Unit Price

17
SCREW

02112-06128-000  

02112-06127-000
 0211206128000

Unit Price

18
PLATE, GEAR SHIFT CAM
PLATE, STOPPER

25380-14D01-000   2538014D01000

2538014D01000

Unit Price

19
BOLT<br />BOLT, SHIFT CAM STOPPER
BOLT
BOLT, SHIFT CAM STOPPER

09111-06041-000   0911106041000

0911106041000

Unit Price

20
THRUST WASHER<br />WASHER
THRUST WASHER
WASHER

08211-06141-000   0821106141000

0821106141000

Unit Price

21
STOPPER, GEAR SHIFT CAM
STOPPER, CAM

25350-14D01-000   2535014D01000

2535014D01000

Unit Price

22
SPRING

09443-09026-000   0944309026000

0944309026000

Unit Price

23
BEARING, RH
BEARING, RH

08113-69050-000   0811369050000

0811369050000

Unit Price

24
WASHER (25X32X5.3)

09160-25068-000   0916025068000

0916025068000
Not available
25
SHAFT, GEAR SHIFT

25510-14D00-000  

25510-14D01-000
 2551014D00000

Unit Price

26
SPACER (12X20X15.3)
SPACER (12X20X15.3)

09180-12068-000   0918012068000

0918012068000

Unit Price

27
SPRING

09444-26004-000  

09444-26001-000
 0944426004000

Unit Price

28
09285-12006<br />OIL SEAL (12X22X9)
09285-12006
OIL SEAL (12X22X9)

09285-12002-000  

0928512002000
Not available
29
STOPPER,GEAR SHIFT ARM<br />STOPPER, ARM
STOPPER, GEAR SHIFT ARM
STOPPER, ARM

25671-36A00-000   2567136A00000

2567136A00000

Unit Price

30
LEVER ASSY, GEAR SHIFT
LEVER, GEAR SHIFTING

25600-15D20-000   2560015D20000

2560015D20000

Unit Price

30
DISCONTINUE
LEVER, GEAR SHIFTING

25600-14D04-000   2560014D04000

2560014D04000
Not available
31
RUBBER, GEAR SHIFT PEDAL

25652-03D00-000   2565203D00000

2565203D00000

Unit Price

32
BOLT

01107-06205-000  

01500-06257-000
 0110706205000

Unit Price

32
BOLT

01500-06203-000  

01500-0620A-000
 0150006203000

Unit Price

32
BOLT

09100-06100-000  

01107-06205-000
 0910006100000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 350 DR 1994

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 350 DR 1994

Select your Suzuki 1994 model

350 DR 1994 DR350R(E3)

Suzuki DR

Displacement: 350 cc
Year: 1994
Model code DR350R(E3)
